Technical Specifications
Product Overview

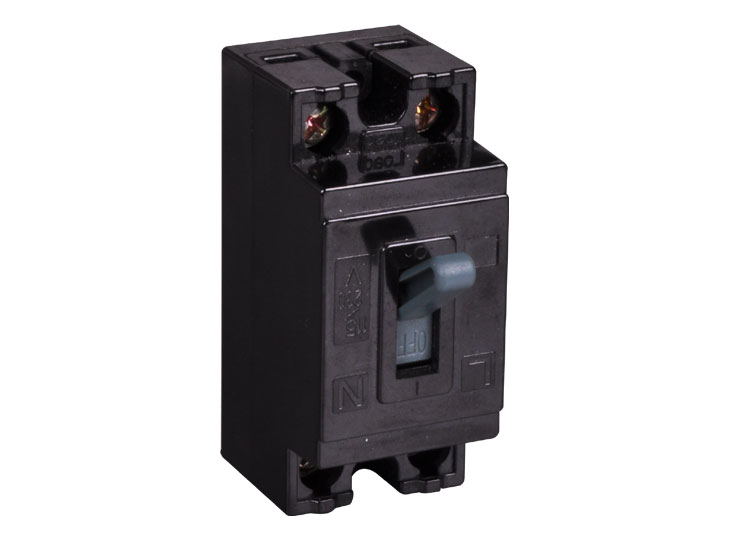

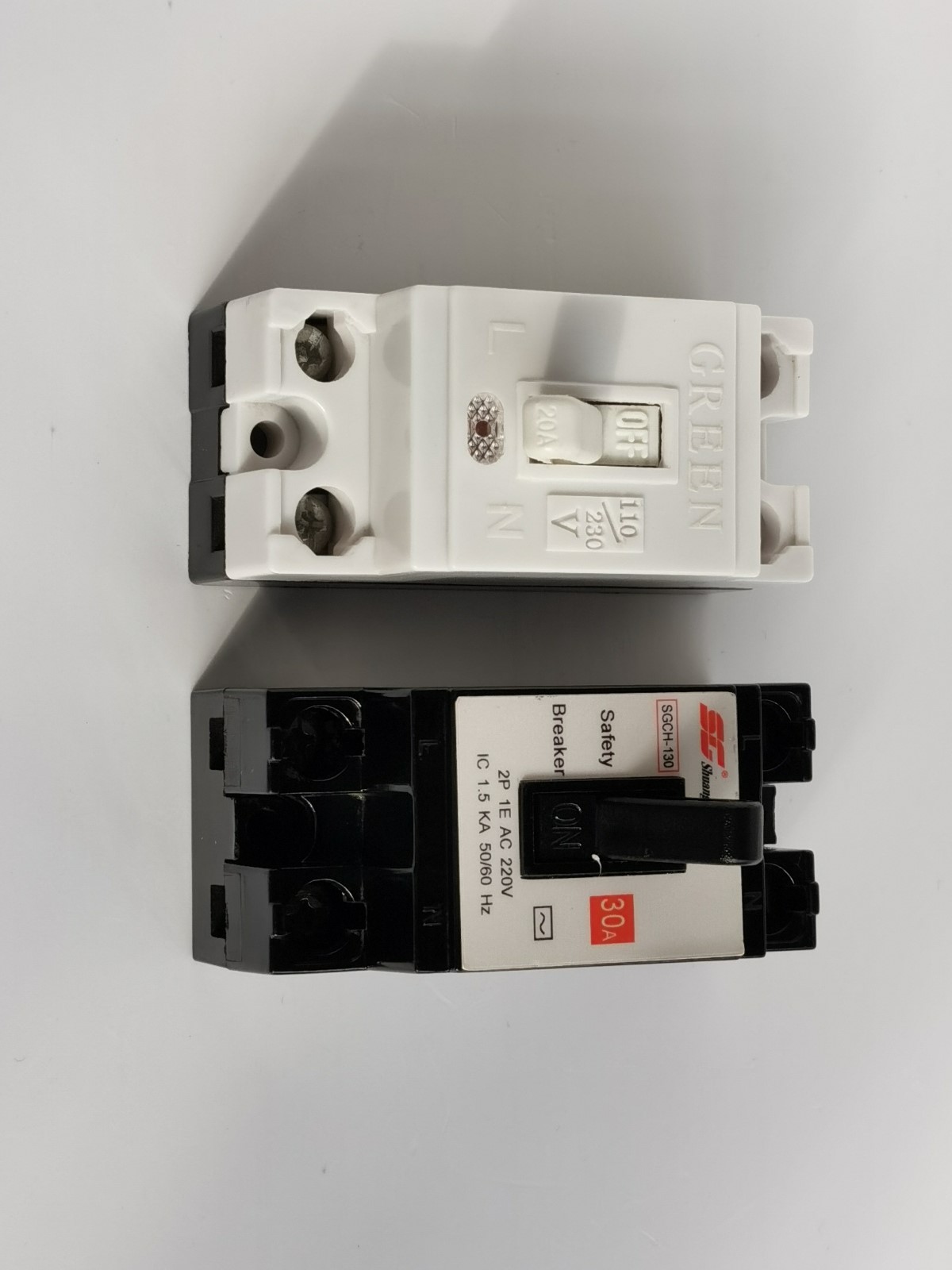

Professional Miniature Circuit Breaker
The NT50 Miniature Circuit Breaker is engineered to provide reliable overcurrent and short-circuit protection for residential and light commercial electrical systems. Designed for versatility, this unit supports multiple current ratings and operates effectively within 220V environments. With a compact 2P form factor and a robust thermal-magnetic mechanism, it ensures safety and consistent performance for diverse power distribution needs.
Electrical Ratings
Available Amperage Options
- 6
- 10
- 16
- 20
- 25
- 32
- Rated Voltage
- 220 V
Performance Metrics
Core Performance
1.5 kA
Short-Circuit Capacity
2 P
Pole Configuration
Safety & Compliance
- Key Features
- Thermal-Magnetic TripQuick-Make OperationVisible Trip IndicationScrew Terminal Connections
