Miniature Circuit Breaker 415V 6000A
This miniature circuit breaker is designed for electrical protection in various applications. Compliant with IEC947-2 standards, the circuit breaker provides overcurrent and short-circuit protection with a clear ON/OFF indicator.
Technical Specifications
Product Overview

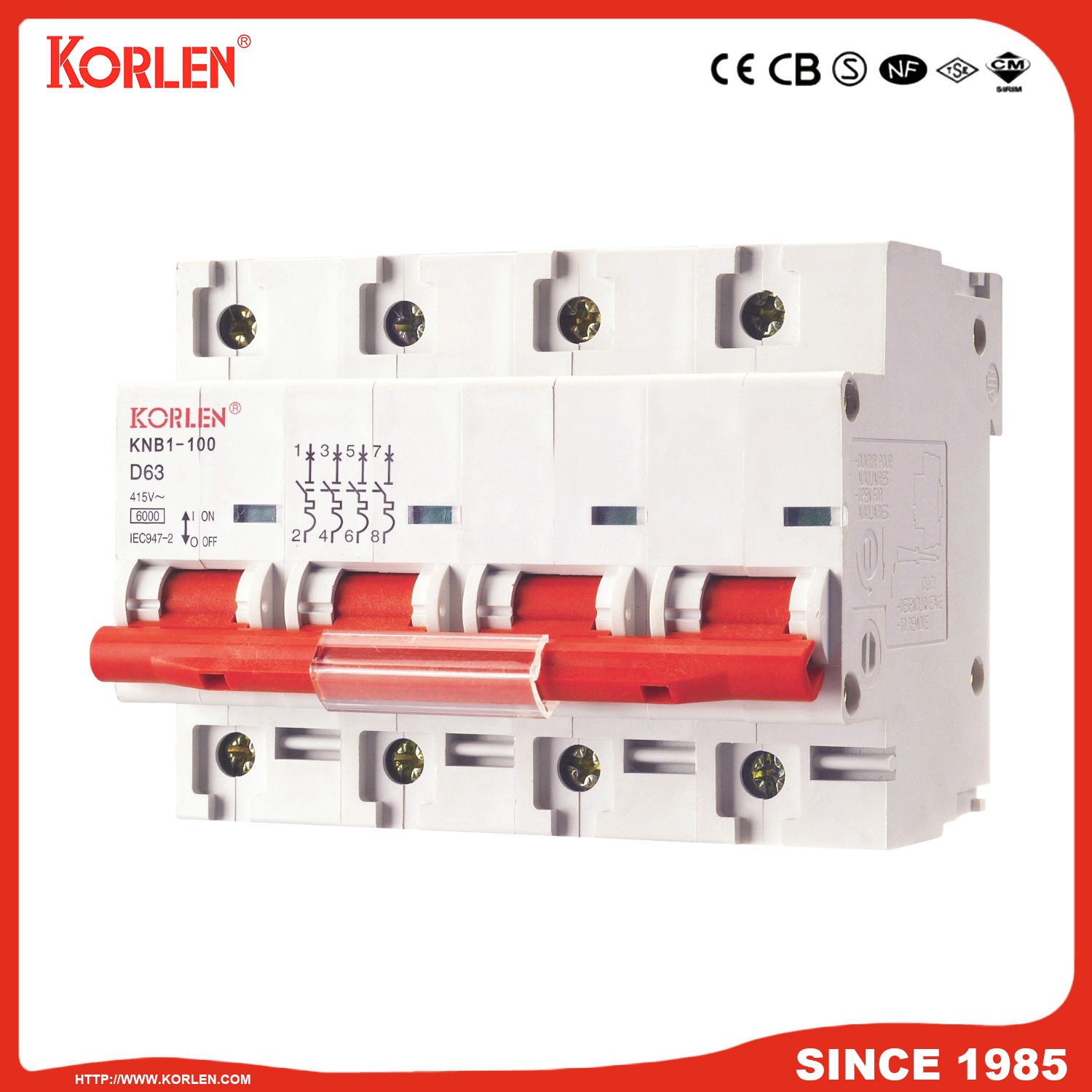

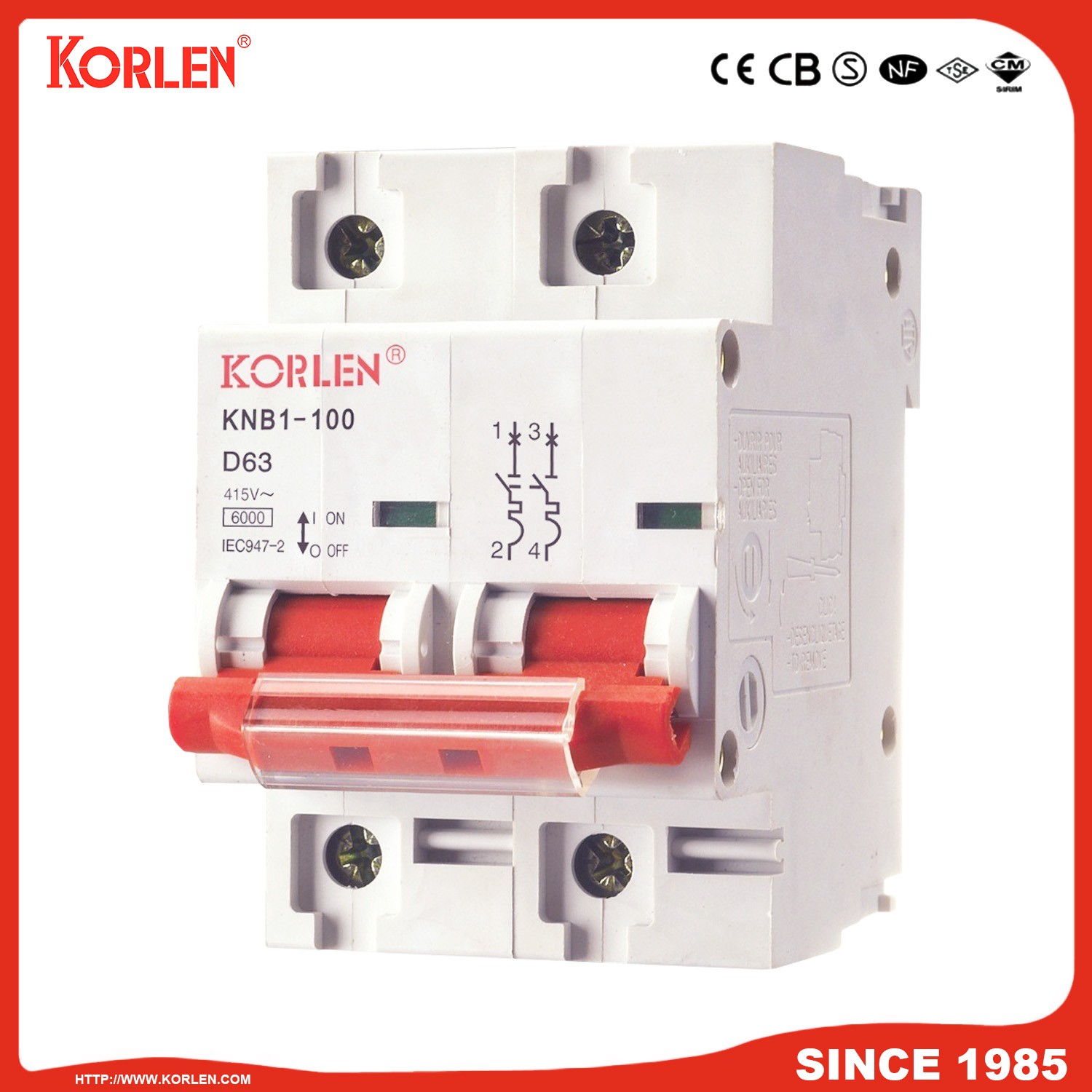

KNB1-100 Series Miniature Circuit Breaker
The KNB1-100 series miniature circuit breaker is engineered for high-performance electrical protection in industrial, commercial, and residential environments. Featuring a robust design with a 6000A breaking capacity, it ensures reliable safety against overloads and short-circuits. Designed for convenience, it installs easily on standard DIN rails and supports both frequent and infrequent switching operations.
Electrical Ratings
Rated Voltage
240 V
Min Voltage
415 V
Max Voltage
- Breaking Capacity
- 6000 A
- Max Rated Current
- 100 A
Standards & Compliance
- Standards
- GB10963IEC/EN60898IEC947-2CECB
Installation & Design
Key Features
- Overload protection
- Short-circuit protection
- ON/OFF status indicator
- Remote monitoring support (auxiliary contacts)
- Mounting
- Standard DIN rail
Technical Specifications
- Frequency
- 50/60Hz
