Miniature Circuit Breaker
Miniature circuit breakers provide overload and short-circuit protection. They are suitable for residential, commercial, and industrial electrical protection applications.
Technical Specifications
Product Overview
Compact Electrical Protection

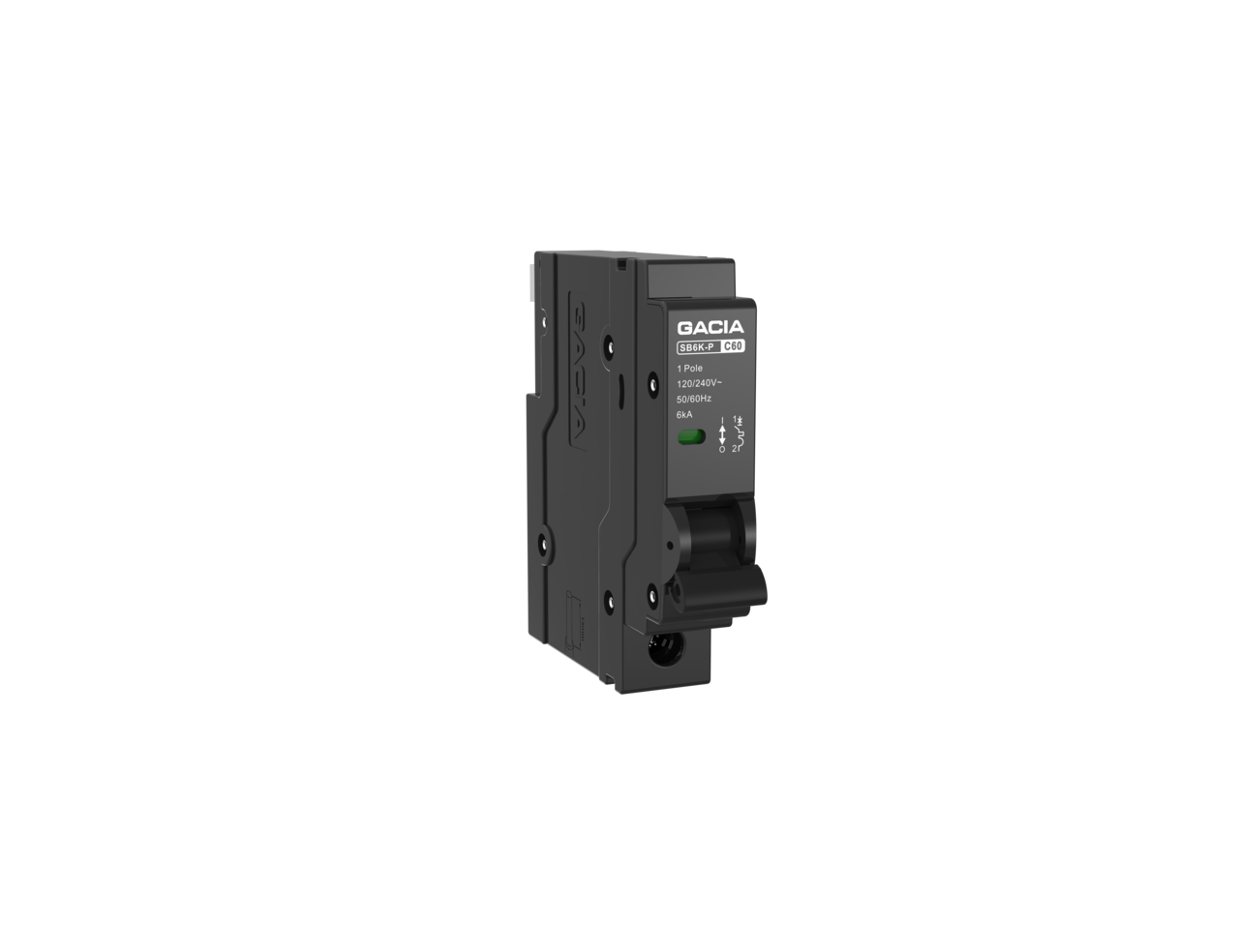

The SB6K-P plug-in circuit breaker is designed for efficient, space-saving electrical protection in residential and commercial applications. With a compact 18mm width and a robust 6kA breaking capacity, it integrates seamlessly into traditional distribution boxes. Constructed with recyclable engineering plastics, this device offers both environmental responsibility and reliable overload and short-circuit protection.
Technical Specifications
Available Rated Currents
- 6
- 10
- 16
- 20
- 25
- 32
- 40
- 50
- 63
Pole Configurations
1P2P3P
- Breaking Capacity
- 6 kA
- Rated Voltage
- 110V230V400V
Design & Installation
- Width Per Pole
- 18 mm
- Installation Type
- Plug-in
Compliance
- Standards
- IEC 60898-1
Key Features
Performance Highlights
6 kA
Breaking Capacity
18 mm
Module Width
