Miniature Circuit Breaker 10kA Breaking Capacity
This miniature circuit breaker provides protection against overload and short-circuit conditions. It has a rated short-circuit breaking capacity of 10kA.
Technical Specifications
Product Overview

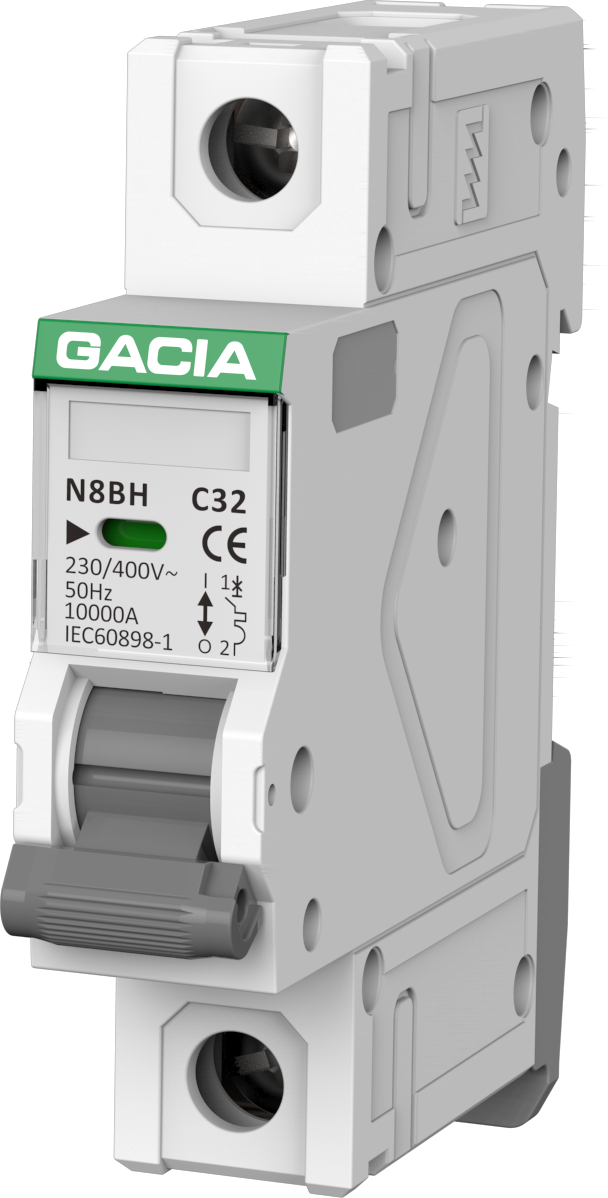

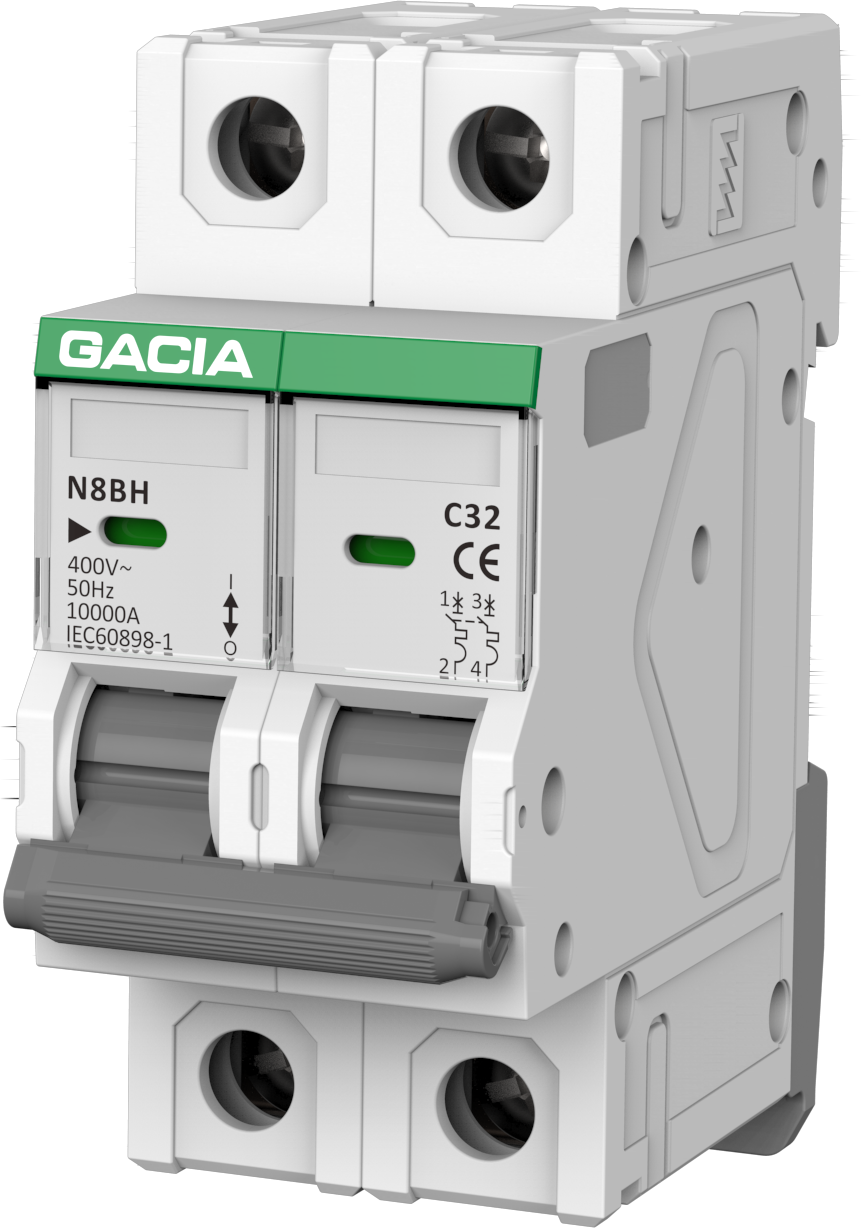

N8BH Series Miniature Circuit Breaker
The N8BH series is a versatile miniature circuit breaker designed for robust electrical protection in residential, commercial, and industrial environments. It provides essential overload and short-circuit protection, featuring a high breaking capacity of 10kA for reliable fault current interruption. Engineered for ease of use, the device includes a clear contact position indication window and supports standard DIN rail installation.
Technical Specifications
Rated Breaking Capacity
10 kA
Breaking Capacity
6 kA
Conditional Rated Strength (Inc)
Pole Configuration
- 1-pole
- 2-pole
- 3-pole
- 4-pole
- Rated Current
- 63 A
- Tripping Characteristics
- Curve BCurve CCurve D
Standards & Compliance
Certifications
CCCCEVDE
Applicable Standards
- IEC/EN 60898-1
- IEC/EN 60947-2
Features
Status Indication
| Status | Color |
|---|---|
| ON | Green |
| OFF | Red |
