Miniature AC Electrical Contactor
Miniature AC contactors are electromechanical devices used for switching electrical circuits in various applications. These compact contactors are designed to handle high current loads and provide reliable switching for millions of cycles.
Technical Specifications
Product Overview

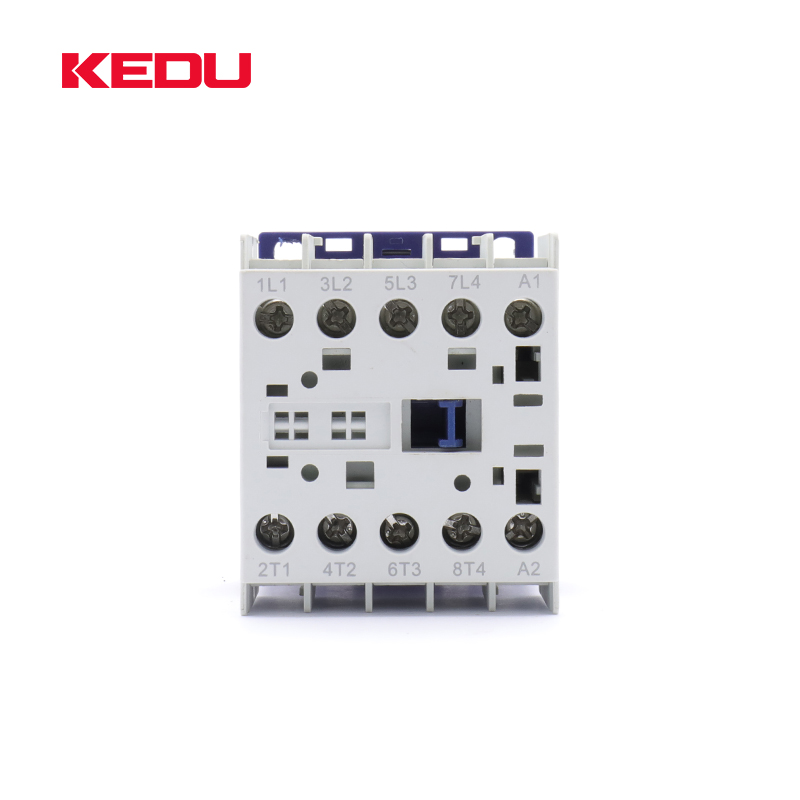

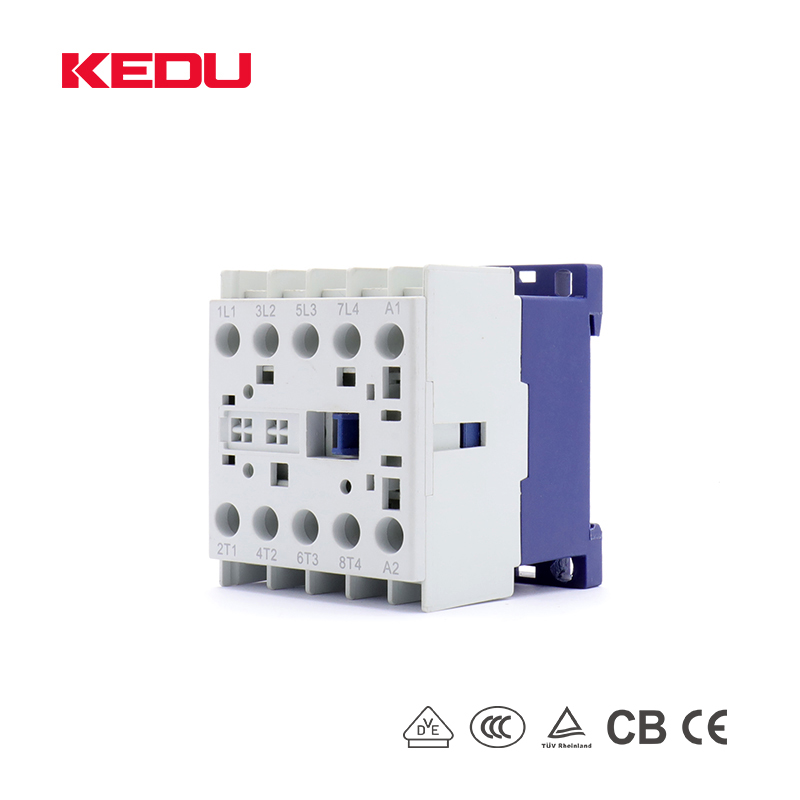

Compact Miniature Contactor Series
These miniature contactors are engineered for space-constrained environments such as commercial lighting and industrial equipment control. They feature a uniform size for both AC and DC control, providing flexibility in installation. With integrated surge suppression and IP2X touch-proof protection, they offer reliable, low-noise operation across a wide temperature range.
Technical Specifications
Rated Current Options
- 5
- 9
- 12
Protection Class
IP2X
- Rated Insulation Voltage
- 690 V
- Rated Impulse Withstand Voltage
- 6 kV
- Ambient Temperature
- -25°C to +60°C
Performance Metrics
Mechanical Endurance
14,000,000 cycles
Operations
Compliance & Standards
- Certifications
- CETÜV RheinlandCCCVDE EN 60947-4-1
- Coordination Types
- Type 1Type 2
Application Compatibility
- Supported Utilization Categories
- AC-1AC-2AC-3AC-4AC-8aAC-8b
