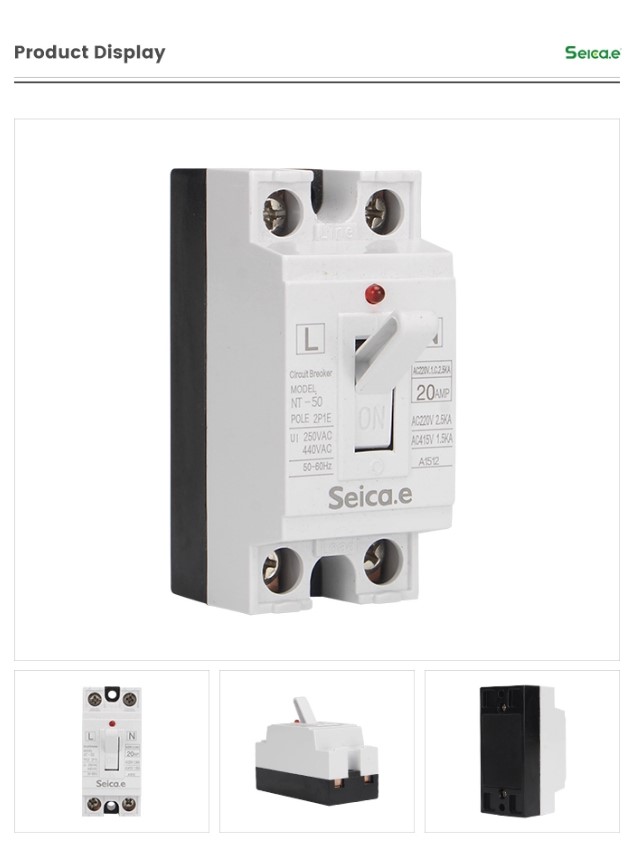

Miniature 2-Pole Circuit Breaker 20A
This miniature circuit breaker is a 2-pole device rated for 20A. It provides short-circuit protection in electrical circuits, preventing damage to equipment.

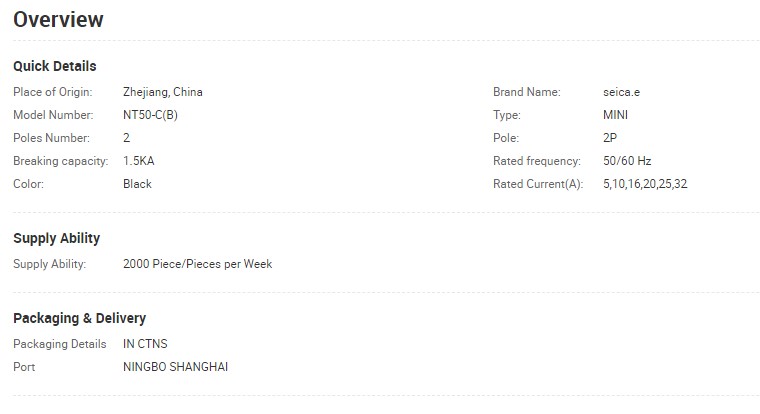

Technical Specifications
Product Overview
Reliable Circuit Protection
This miniature circuit breaker (MCB) is designed to provide robust overload and short-circuit protection for electrical systems. Engineered for safety and efficiency, the device is suitable for both industrial and residential applications. It features a 2-pole configuration and is compatible with standard AC power systems, ensuring reliable performance and equipment protection.
Technical Specifications
- Model Number
- NT-50
- Pole Configuration
- 2P1E
- Rated Current
- 20 A
- Rated Frequency
- 50-60 Hz
- Voltage Ratings
- 250VAC440VAC
Performance Metrics
Breaking Capacity
1 kA
at 220VAC
2.5 kA
at 220VAC
1.5 kA
at 415VAC
Logistics
Available Current Ratings
- 5
- 10
- 16
- 20
- 25
- 32
- Place of Origin
- Zhejiang, China
