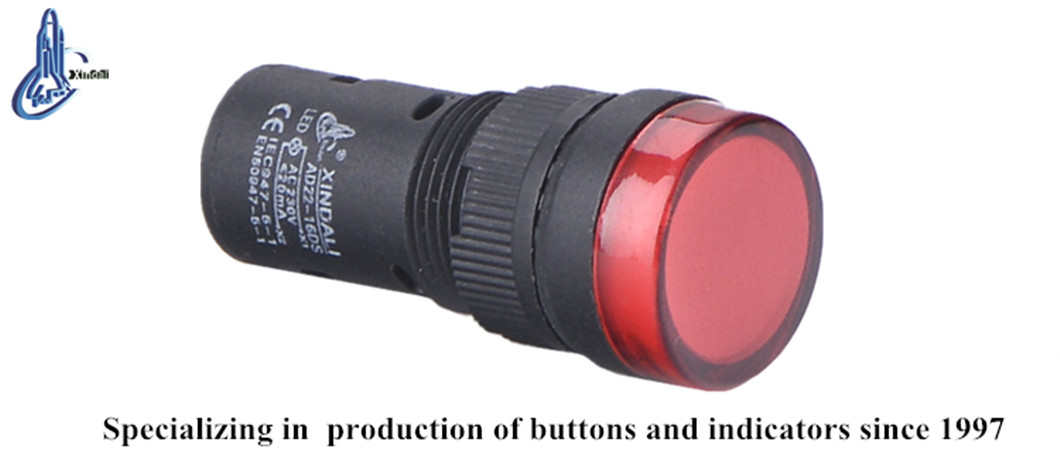

Mini LED Indicator Light with Red Lamp
This mini LED indicator light features a red lamp for clear signaling. It is designed for use in control panels, machinery, and other industrial equipment.
Technical Specifications
Overview
High-Performance LED Signaling
The AD22-16DS series represents a modern advancement in indicator technology, utilizing high-brightness LED chips as a long-lasting and low-consumption alternative to traditional incandescent and neon lamps. These compact indicators are designed for high reliability and aesthetic appeal, featuring a durable polycarbonate lampshade with superior anti-surge performance. Engineered for versatility, they are ideal for signaling, forewarning, and accident indication across electrical power, telecommunications, and industrial machinery sectors.
Technical Specifications
- Voltage of Working Frequency
- 2.5kV (AC valid value), 1min
- Insulated Resistance
- ≥2MΩ
- Voltage Wave Allowed
- ±20%
- Rated Current
- 20 mA
- Compliance Standards
- IEC947-6-1EN50947-5-1IEC/EN 60947-5-1

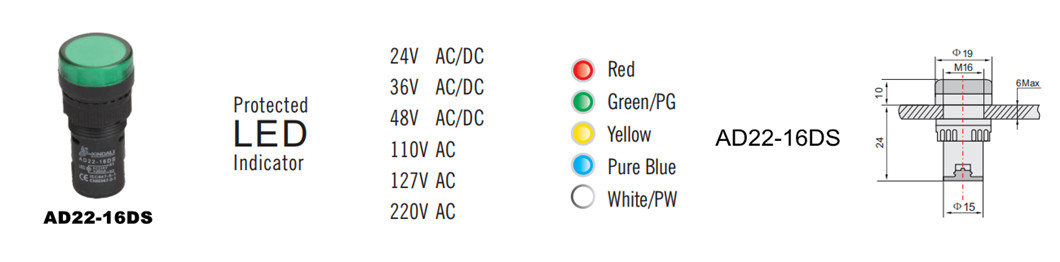

Physical Dimensions
Mounting Specifications
19 mm
Mounting Hole (Φ)
16 M
Thread Size
6 mm
Max Panel Thickness
24 mm
Total Length
Options & Variants
Available Colors
RedGreenYellowPure BlueWhite
Voltage Options
- 24V AC/DC
- 36V AC/DC
- 48V AC/DC
- 110V AC
- 127V AC
- 220V AC
- 230V AC
Application Areas
- Target Industries
- Electrical PowerTelecommunicationMachine ToolsWatercraftTextilePrintingMine Machinery
Product Features
Key Benefits
- Long operational life
- Low power consumption
- Small volume and light weight
- High brightness LED source
- Anti-surge polycarbonate lens
- Safe bolt-type connectors
