16mm Double Color Mini LED Indicator Light
This 16mm metal indicator light features a dual-color mini LED. It is designed for panel mounting in industrial and electronic applications requiring visual signals.
Technical Specifications
Overview
High-Performance 16mm LED Signaling
The AD22C-16TE is a professional-grade 16mm metal indicator light featuring a dual-color mini LED lamp for clear visual signaling. Designed to replace traditional incandescent and neon lamps, it offers significantly lower power consumption, a longer service life, and high brightness in a compact form factor. Its robust metal construction and polycarbonate lens provide excellent durability and anti-surge performance, making it ideal for demanding industrial control panels and machinery.
Key Features
Core Benefits
- Long operational life and low energy consumption
- High brightness LED chip light source
- Durable metal body with high-intensity polycarbonate lens
- Anti-surge performance for electrical stability
- Compact 'mini' short indicator design for space-saving installation
- Bolt-type connectors for safe and convenient wiring
Technical Specifications
Power Type
ACDCAC/DC Universal
- Mounting Diameter
- 16 mm
- Insulation Resistance
- ≥2MΩ
- Working Frequency Voltage
- 2.5kV (AC valid value), 1min
- Voltage Tolerance (AC)
- ±20%
- Available Voltages
- 6V12V24V110V220V380V
Operation & Signaling

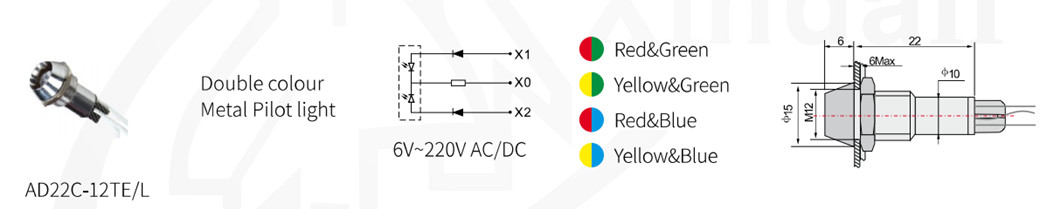

Dual-Color Combinations
| Combination | Wiring Logic |
|---|---|
| Red & Green | X0-X1: Green / X0-X2: Red |
| Yellow & Green | Dual-mode signaling |
| Red & Blue | Dual-mode signaling |
| Yellow & Blue | Dual-mode signaling |
Application Areas
- Industry Applications
- Electrical PowerTelecommunicationsMachine ToolsWatercraftTextile MachineryPrinting EquipmentMining Machinery
Physical Properties
- Lampshade Material
- High-intensity Polycarbonate
- Housing Material
- Metal
