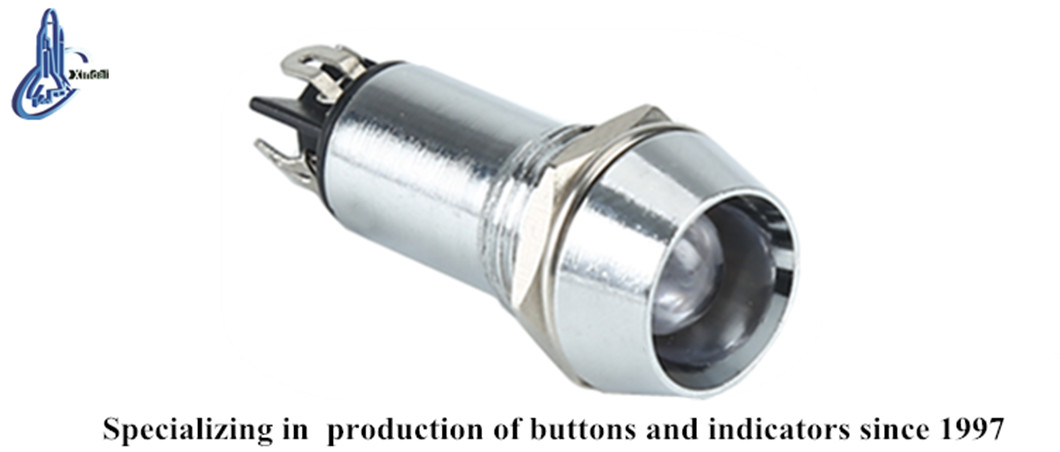

10mm Double Color LED Indicator Light
This 10mm pilot LED indicator provides visual signaling with high reliability and a long lifespan. Its compact size allows for easy integration into control panels and equipment.
Technical Specifications
Overview
High-Reliability 10mm LED Signaling
The AD22C-10TE is a compact 10mm pilot indicator featuring advanced LED chip technology for superior brightness and long operational life. Designed to replace traditional incandescent and neon lamps, it offers low power consumption and high reliability in a small, lightweight form factor. This dual-color indicator is ideal for critical signaling in electrical power, telecommunications, and industrial machinery applications.
Key Performance Metrics
Technical Highlights
2.5 kV
Working Frequency Voltage
2 MΩ
Insulation Resistance
10 mm
Mounting Diameter
Technical Specifications
- Operating Voltage
- 6V - 220V AC/DC
- Voltage Wave Allowance
- ±20%
- Light Source Type
- LED Shining Chip
Physical Dimensions
Mechanical Data
| Parameter | Value |
|---|---|
| Mounting Thread | M10 |
| Front Flange Diameter | 12mm |
| Body Diameter | 8.2mm |
| Total Length | 21mm |
| Max Panel Thickness | 5mm |
Functional Features
Available Dual-Color Options
- Red & Green
- Yellow & Green
- Red & Pure Blue
- Yellow & Pure Blue
- Common Applications
- Electrical PowerTelecommunicationsMachine ToolsWatercraftTextilesPrintingMine Machinery
Construction
Material Characteristics
- Polycarbonate lampshade with high intension
- Anti-surge performance
- Bolt-type connector for safety
- Chrome finish housing
Wiring & Installation
Connection Options
Cable Lead (L)Fast-Connect (C)Long BaseShort Base (S)
