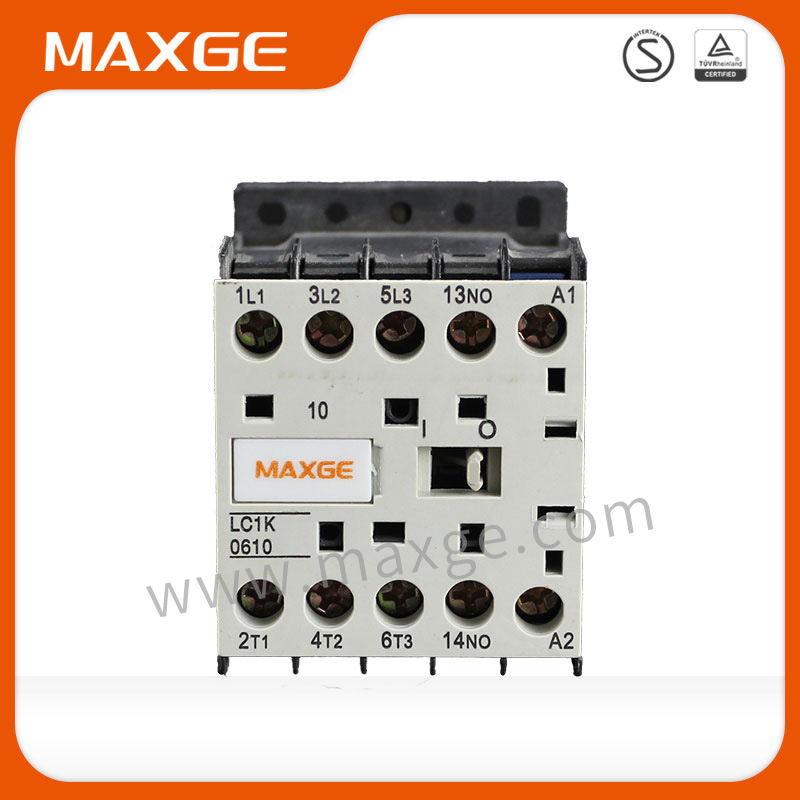

Mini AC Contactor
AC contactors connect and disconnect circuits, frequently controlling motors and other equipment. They control large current with small current and provide overload protection when used with a thermal relay.
Technical Specifications

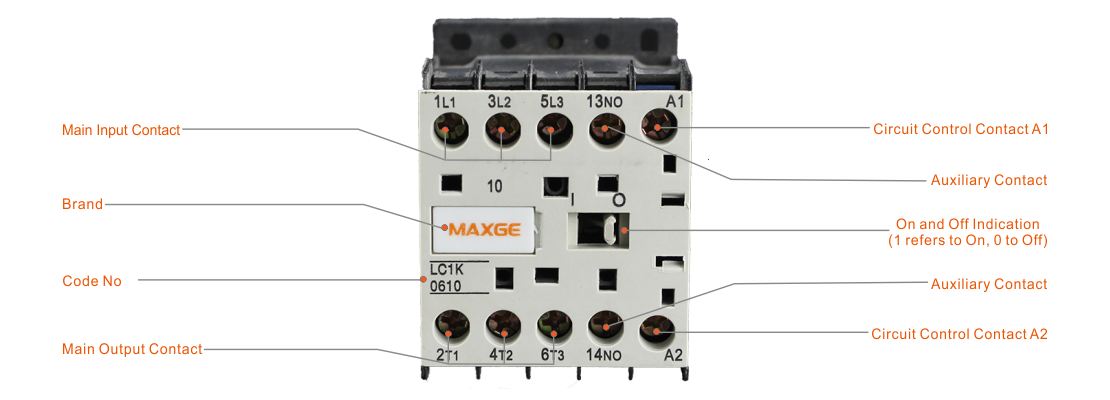

Overview
Compact Power Control
This mini AC contactor is designed for reliable switching and control of motors and electrical equipment. It features a compact footprint suitable for space-constrained industrial and commercial installations. Engineered for durability, it supports high-frequency operations and includes overload protection capabilities when paired with thermal relays.

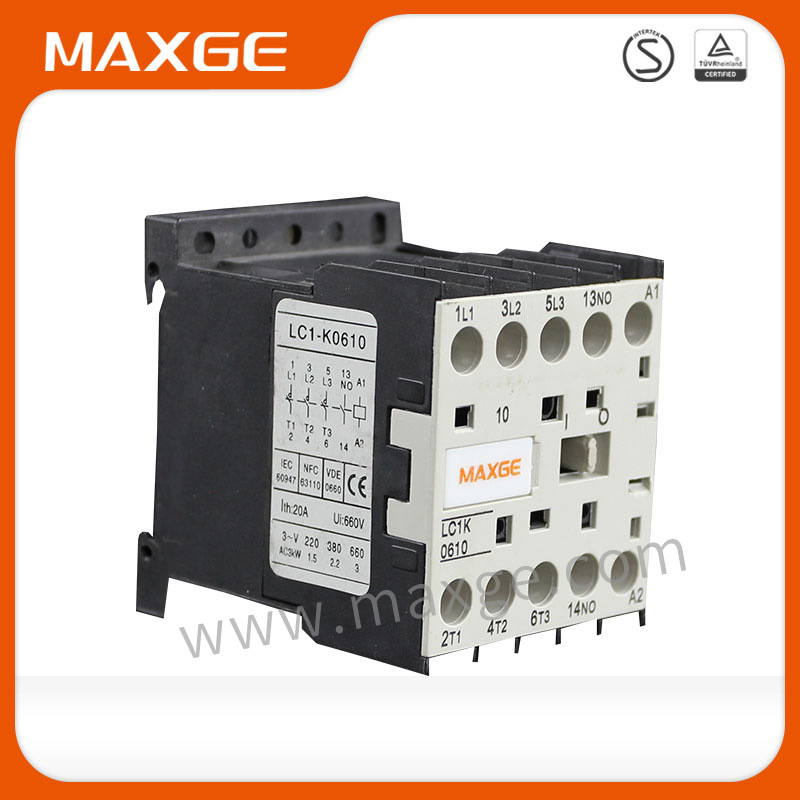

Electrical Ratings
AC3 Power Ratings
1.5 kW
220V
2.2 kW
380V
3 kW
660V
- Rated Operational Current (Ith)
- 20 A
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
Performance
Coil Voltage Tolerance
| Parameter | Range |
|---|---|
| Pick-up Voltage | 85%-110% Uc |
| Pick-out Voltage | 20%-75% Uc |
- Utilization Categories
- AC-3AC-4
- Rated Frequency
- 50/60Hz
Environmental and Standards
Certifications
CEIEC 60947-4-1
- Protection Degree
- IP20
- Operating Temperature
- -5°C to +40°C
- Max Operating Altitude
- 2000 m
Dimensions and Mounting

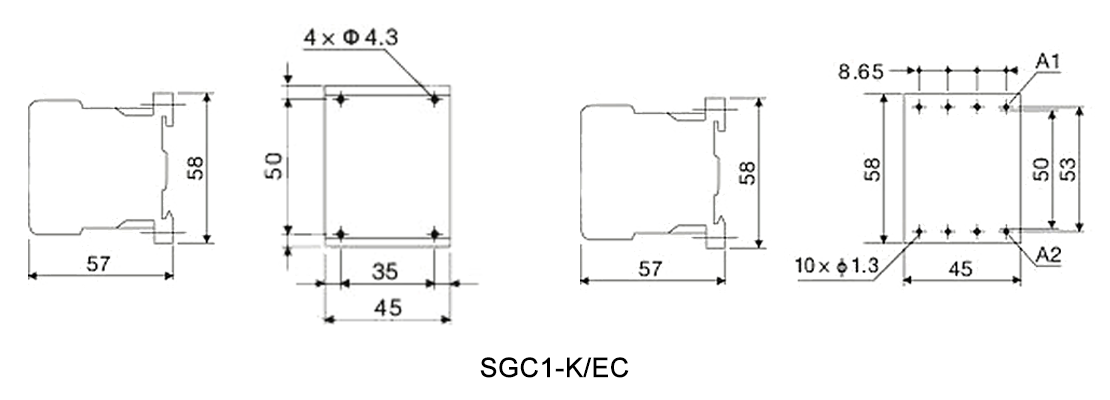

Dimensions
- Height: 58mm
- Width: 45mm
