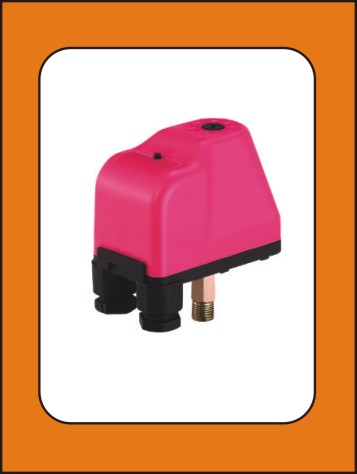

Mechanical Pressure Switch
This mechanical pressure switch is designed for reliable pressure monitoring and control in various industrial applications. It is designed to activate or deactivate an electrical circuit based on a pre-set pressure threshold.
Technical Specifications
Product Overview
Reliable Pressure Control
This mechanical pressure switch is engineered for precise pressure monitoring and control across diverse industrial applications. Featuring a robust housing and threaded connections, it ensures durability and ease of integration into existing systems. The device reliably activates or deactivates electrical circuits based on pre-set pressure thresholds, maintaining optimal system operation.
Performance Specifications
SK-8A Performance Metrics
16 A
Rated Current
15 PSI
Pressure Range Start
80 PSI
Pressure Range End
SK-8B Performance Metrics
2 HP
Rated Power
0.05 BAR
Pressure Range Start
0.9 BAR
Pressure Range End
Technical Details
Model Comparison
| Feature | SK-8A | SK-8B |
|---|---|---|
| Pressure Setting | 20-40 PSI | 0.15-0.4 BAR |
| Protection Grade | IP44 | IP54 |
| Temperature Range | 0-55 °C | 0-55 °C |
| Connection | ZG1/4" | ZG1/4" |
- Supported Supply
- Single-phaseThree-phase
