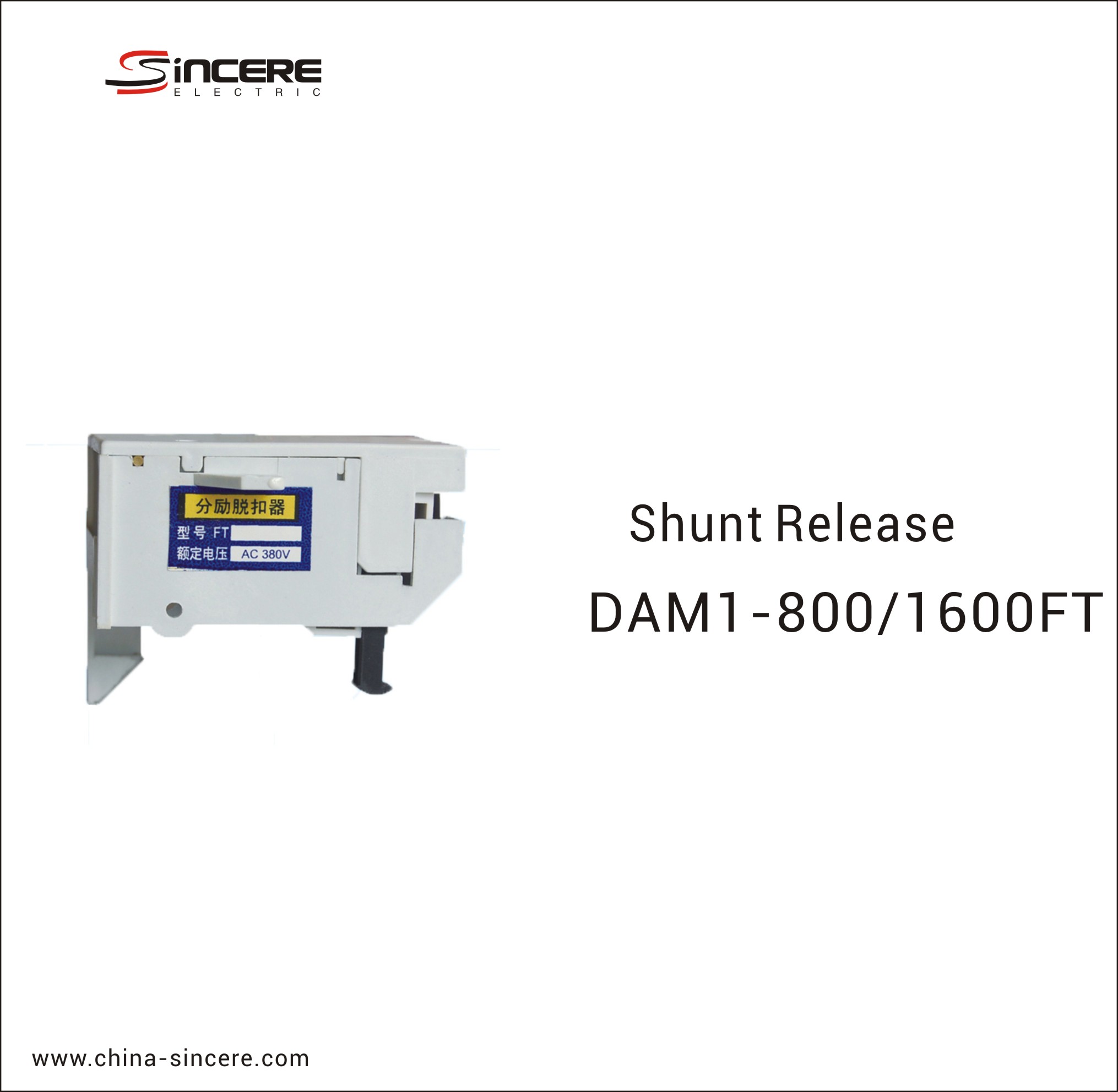

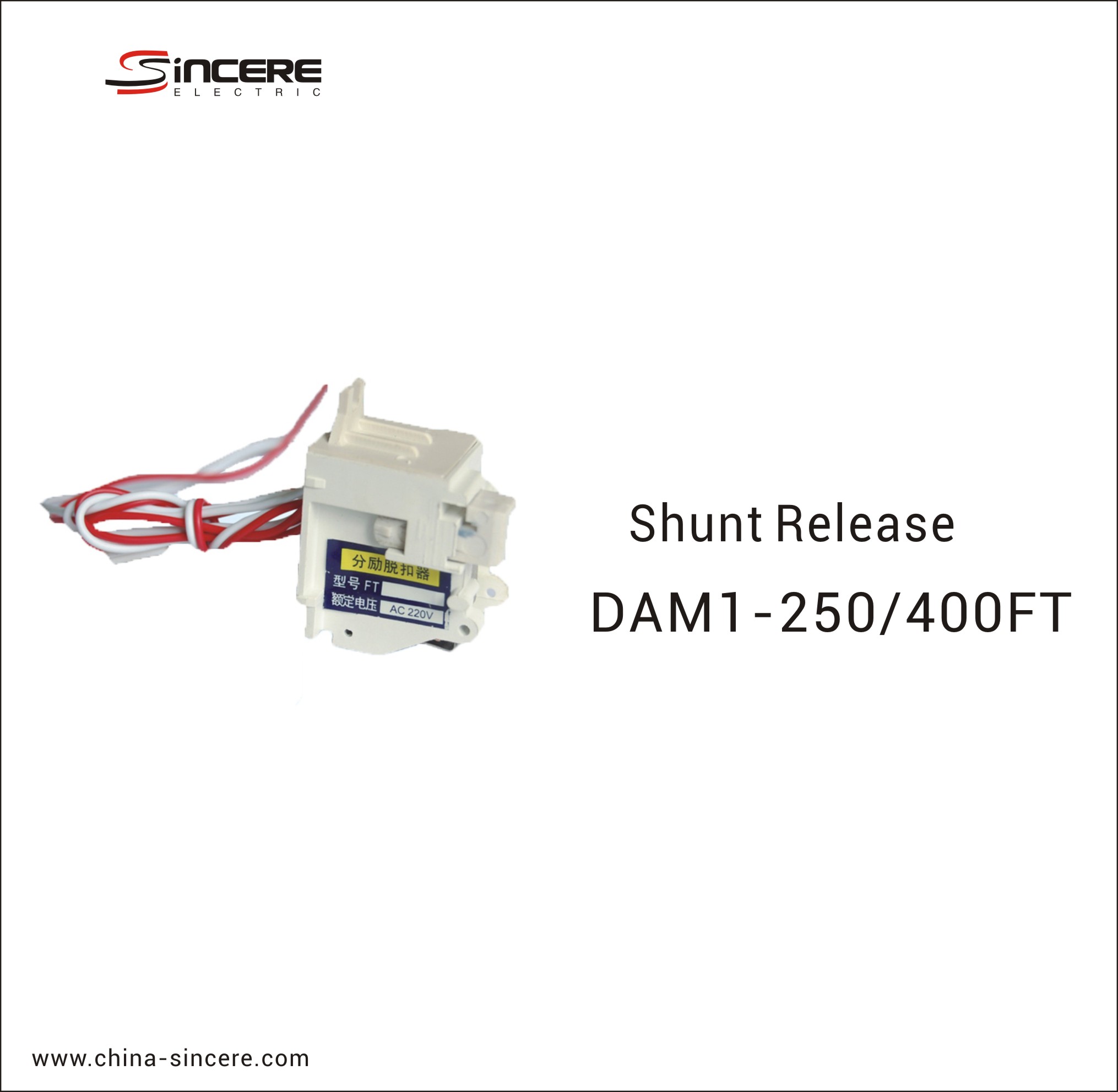

MCCB Shunt Trip Release
The shunt release allows for remote tripping of MCCBs. This device is designed for emergency shutdowns or remote control of electrical circuits.
Technical Specifications
Product Overview
About the Shunt Trip Release
This shunt release is an essential auxiliary accessory designed for the remote control and instantaneous tripping of Molded Case Circuit Breakers (MCCBs). By integrating this device, users can achieve emergency shutdown capabilities or implement remote circuit management within industrial control panels and power distribution systems. Designed for ease of installation, the unit features factory-connected wiring for most components, requiring minimal setup by the end-user.
Technical Specifications
- Supply Voltage Range
- 0.7-1.1 x Us
- Power Loss
- 150 V
- Rated AC Voltage
- 220V AC380V AC
- Rated DC Voltage
- 110V DC220V DC
Compatibility
Compatible MCCB Series
| Series Group |
|---|
| CM1, CDM1, TM30(NF30) |
| DW17(ME) |
| DAM1 |
