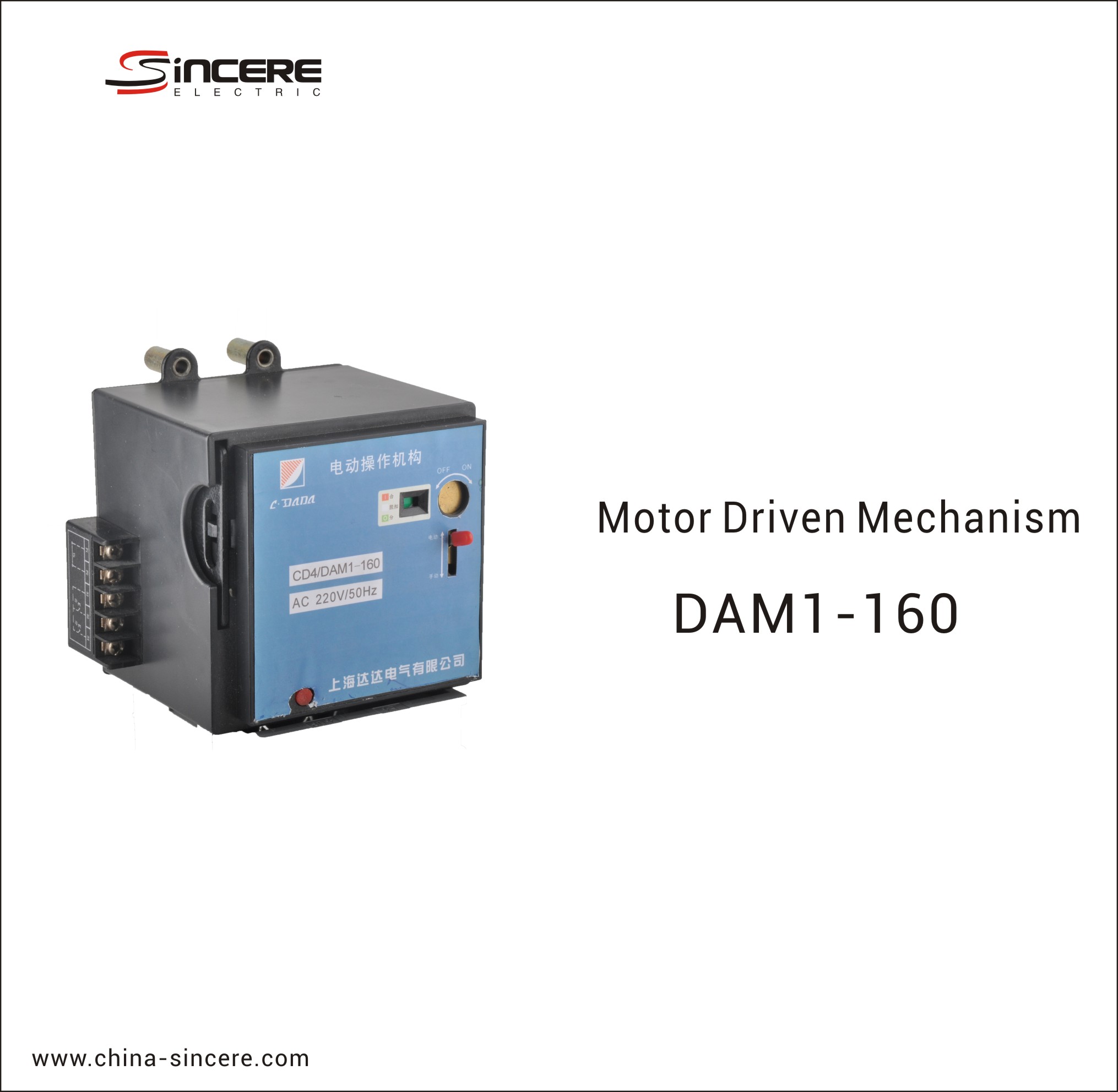

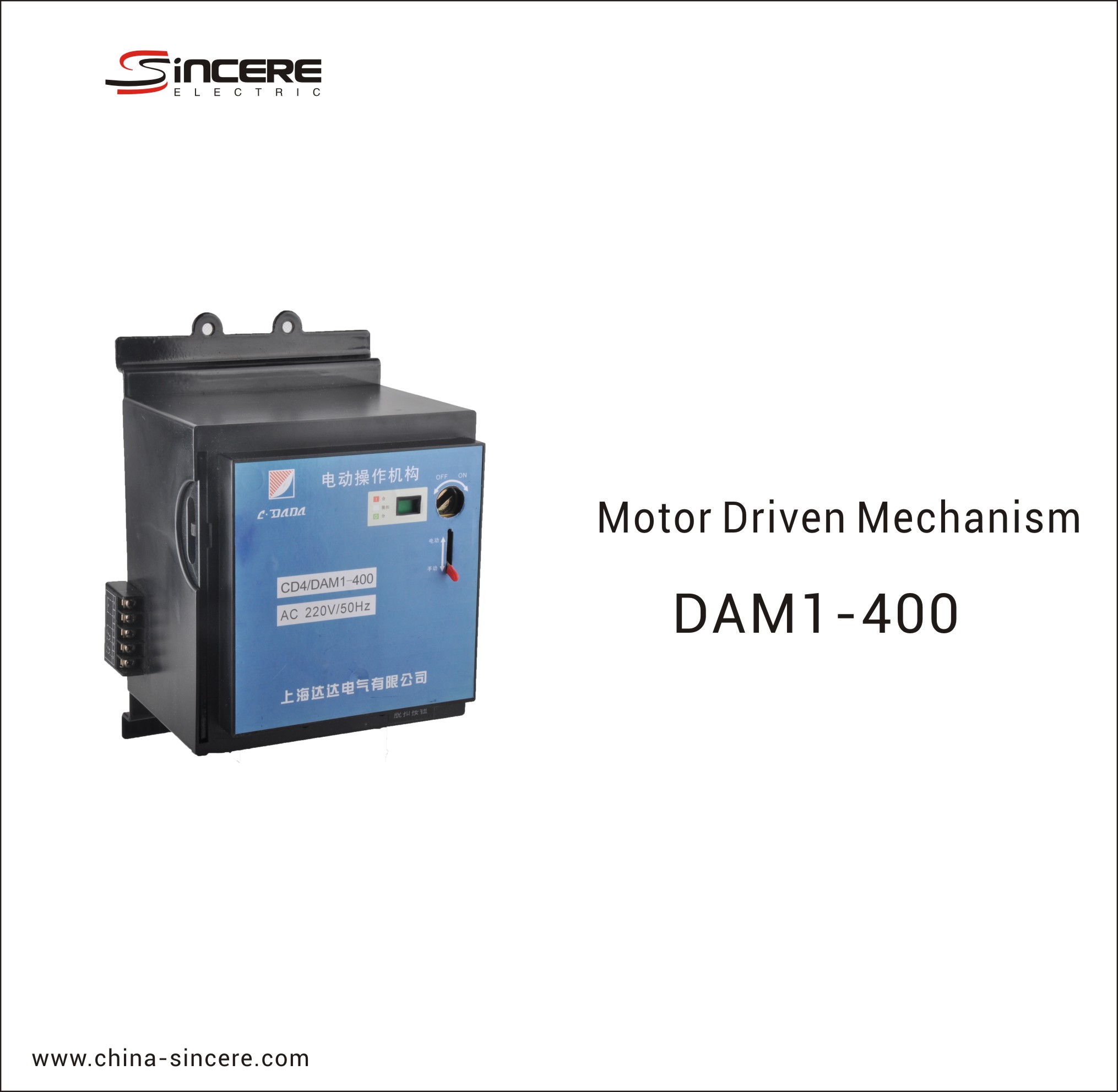

MCCB Motor Driven Operating Mechanism
This motor driven mechanism enables remote operation of Molded Case Circuit Breakers (MCCB). It allows for opening and closing the circuit breaker from a distance.
Technical Specifications
Overview
Remote MCCB Control
This motor-driven operating mechanism is engineered for the remote control of Molded Case Circuit Breakers (MCCB). It facilitates automated opening and closing functions, enhancing efficiency in electrical distribution management. The device is designed to support both manual and electrical operation modes, ensuring reliable performance and operational flexibility.
Technical Specifications
Key Features
Remote OperationStatus IndicatorTrip Button
- Power Supply
- AC 220V/50Hz
- Operation Modes
- ManualElectrical
Compatibility Matrix
Operating Mechanism Compatibility
| Rated Current (Inm) | CD1 | CD2 | CD3 | CD |
|---|---|---|---|---|
| 63A | - | CD2-63 | - | - |
| 100A | - | CD2-100 | - | - |
| 160A | - | CD2-160 | - | - |
| 250A | CD1-250 | CD2-250 | - | CD-250 |
| 400A | CD1-400 | - | - | CD-400 |
| 630A | - | - | CD3-630 | CD-630 |
| 800A | - | - | CD3-800 | CD-800 |
| 1250A | - | - | CD3-1250 | - |
