Technical Specifications
Product Overview
Function and Application
These auxiliary contacts are essential accessories designed for Molded Case Circuit Breakers (MCCBs). They facilitate the automatic control of auxiliary circuits and provide reliable, real-time indication of the breaker's status, specifically identifying whether the MCCB is in an open or closed position.
Technical Specifications
Available Configurations
- 1 N/O and 1 N/C
- 2 N/O and 2 N/C
- 4 N/O and 4 N/C
Compatible Rated Current Ranges
63 A
Low Range
225 A
Low Range Max
250 A
High Range
1,600 A
High Range Max
Compatibility
Compatible MCCB Series
| Series A | Series B | Series C |
|---|---|---|
| CM1-63FC | CM1-100FC | CM1-225FC |
| CDM1-63A | CDM1-100A | CDM1-225A/250A |

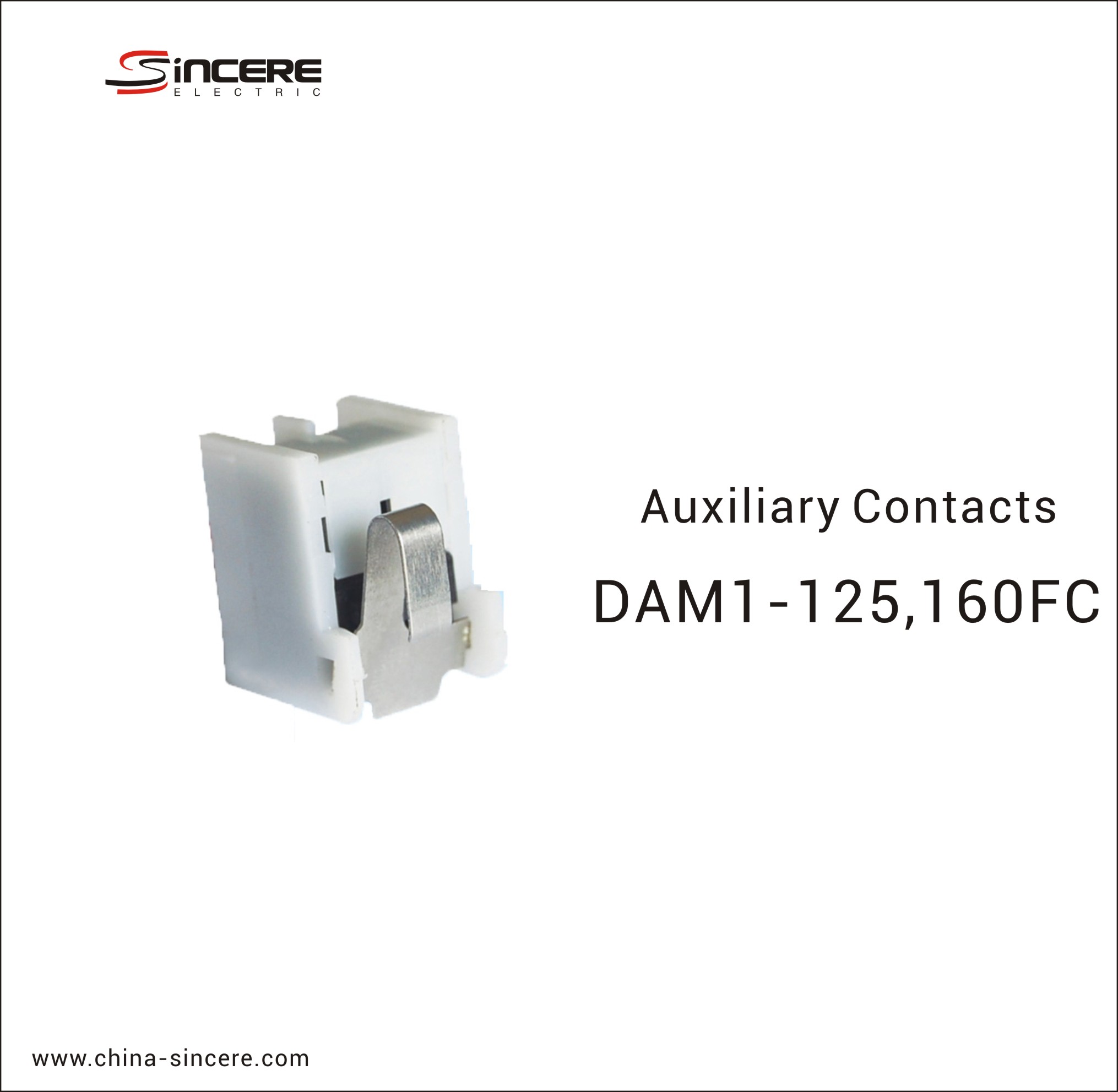

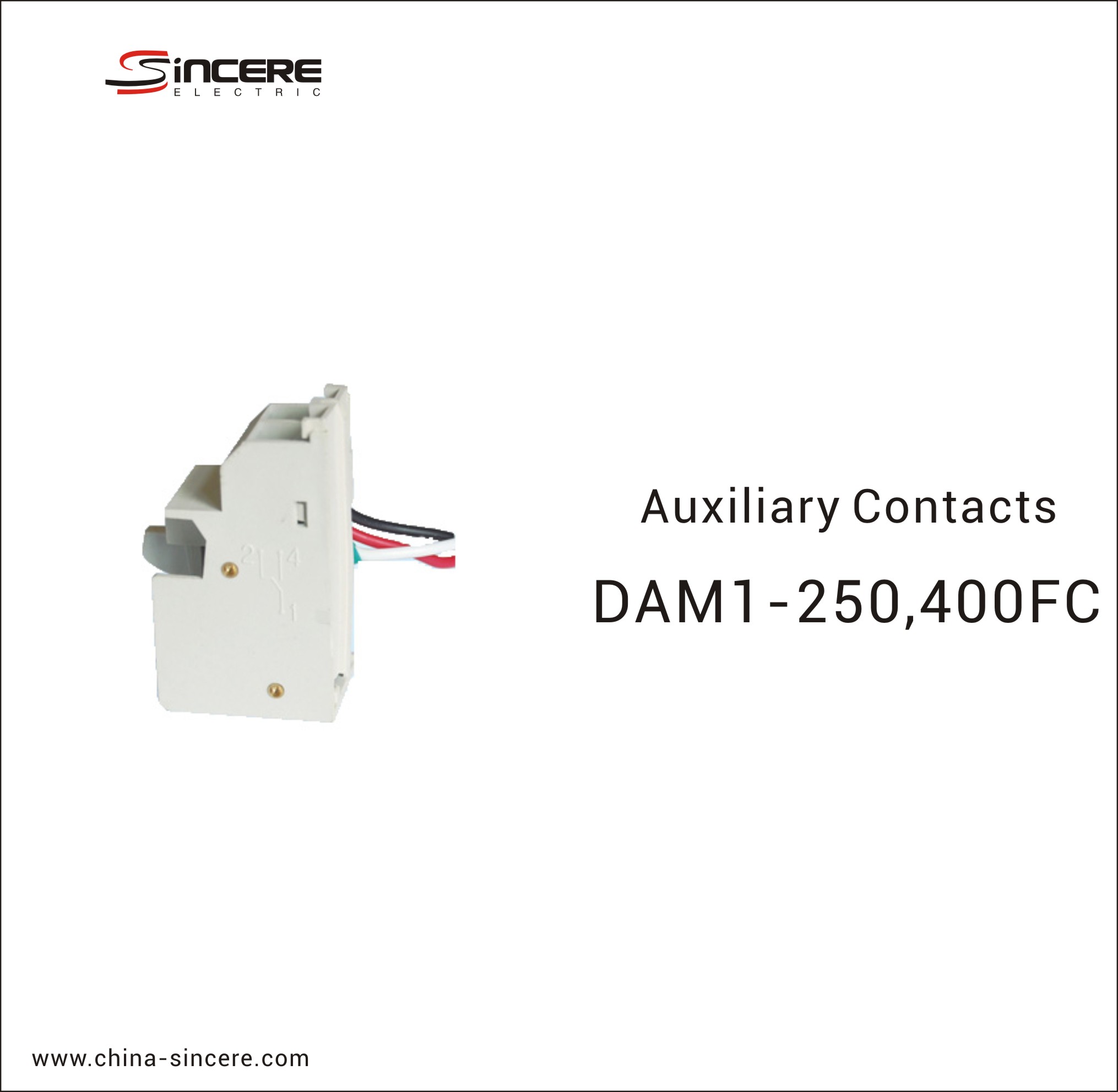

| DAM1-400HFC | DAM1-125/160FC | DAM1-250/400FC |
| DZ20-100FC | DZ20-225FC | DZ20-400FC |
| DZ20-630FC | DZ20-1250FC | TO-100FC |
