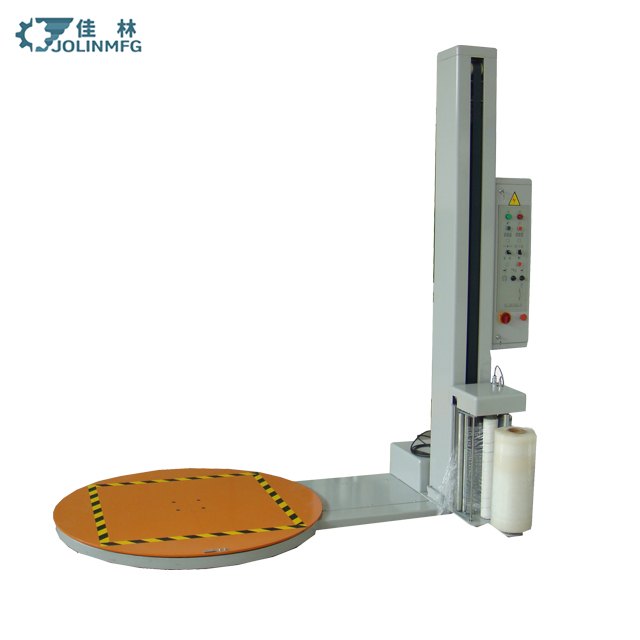

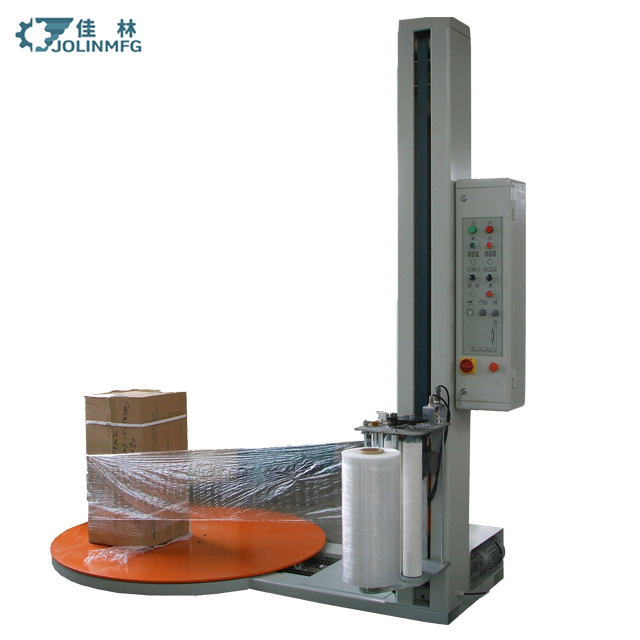

Linear Soap Film Stretch Wrapping Machine
This linear soap film stretch wrapping machine is a grade stretch wrapper designed for efficient packaging. It features a rotating turntable and film carriage for consistent and secure wrapping.
Technical Specifications
Overview
Professional Linear Stretch Wrapping Solution
This linear stretch wrapping machine is engineered for high-efficiency end-of-line packaging. It features advanced tension control and automated height detection to ensure secure, stable, and material-efficient wrapping for a wide variety of palletized loads. Designed with robust components and safety-first engineering, this system offers reliable performance for demanding industrial environments.
Technical Specifications
- Model Number
- JT-2000
- Turntable Diameter
- 1500mm / 1800mm
- Max Wrapping Height
- 2100mm / 2400mm
- Max Wrapping Area
- 1300 x 1300 mm
- Max Wrapping Weight
- 2000 kg
Performance
Pre-stretch Tension Range
0 %
Min Tension
250 %
Max Tension
- Turntable Speed
- 2-15 rpm
Key Features
- Operational Highlights
- Soft Start/StopAutomatic Height DetectionAutomatic Film BreakingTurntable OrientationSelf-Protection Sensors
Design & Construction
Construction Benefits
- 12-roller support system for smooth operation
- High-strength belt drive system (replaces chain)
- Integrated U-model chassis for turntable protection
- Rear-positioned hatch for convenient access
- Imported electrical components with aero sockets
