Leakage Circuit Breaker
This leakage circuit breaker is designed for lines up to 230V for single phase or up to 400V for three phases with a rated current up to 32A. It automatically breaks power in 0.2S to protect both people and equipment in the event of electric shock or leakage current.
Technical Specifications
Overview

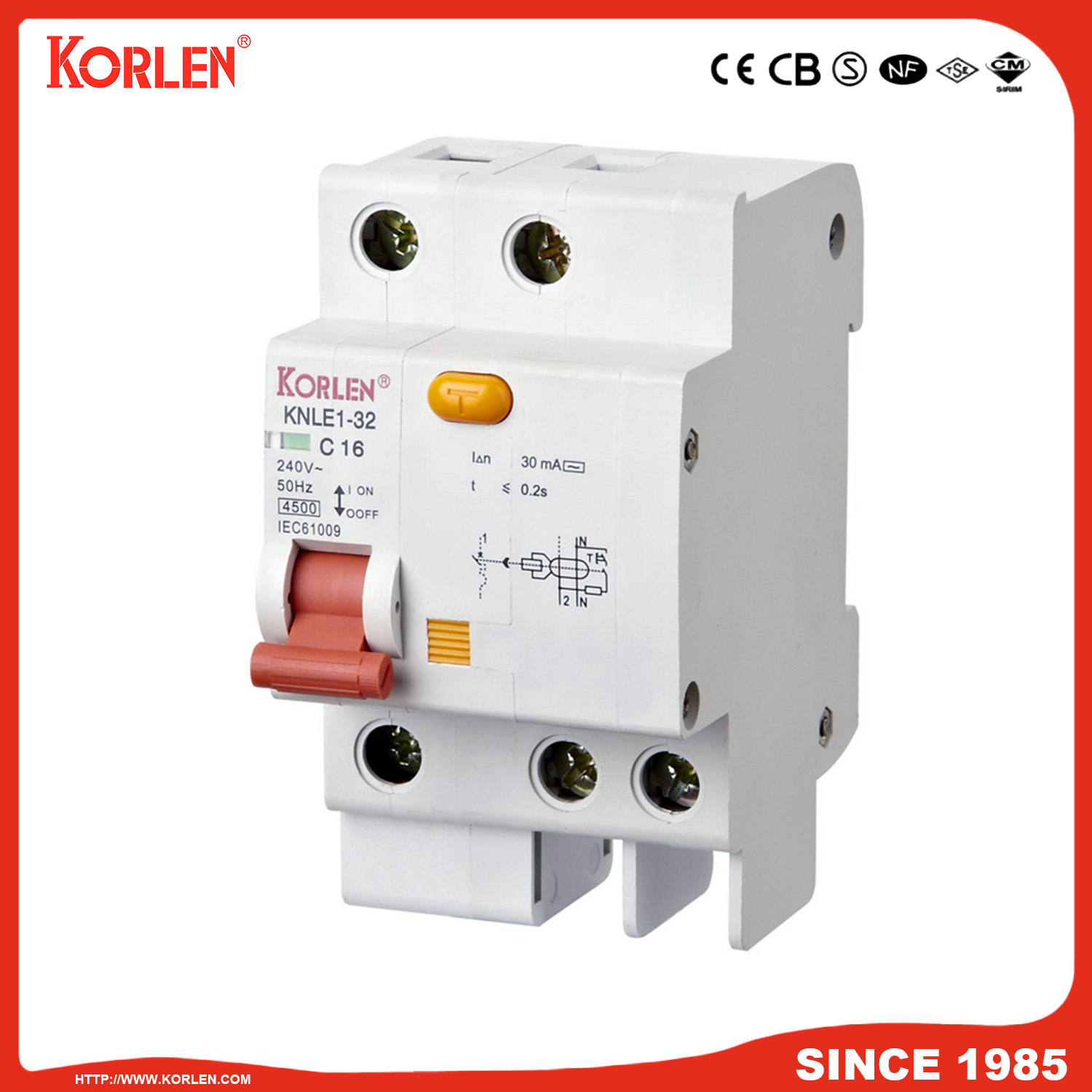

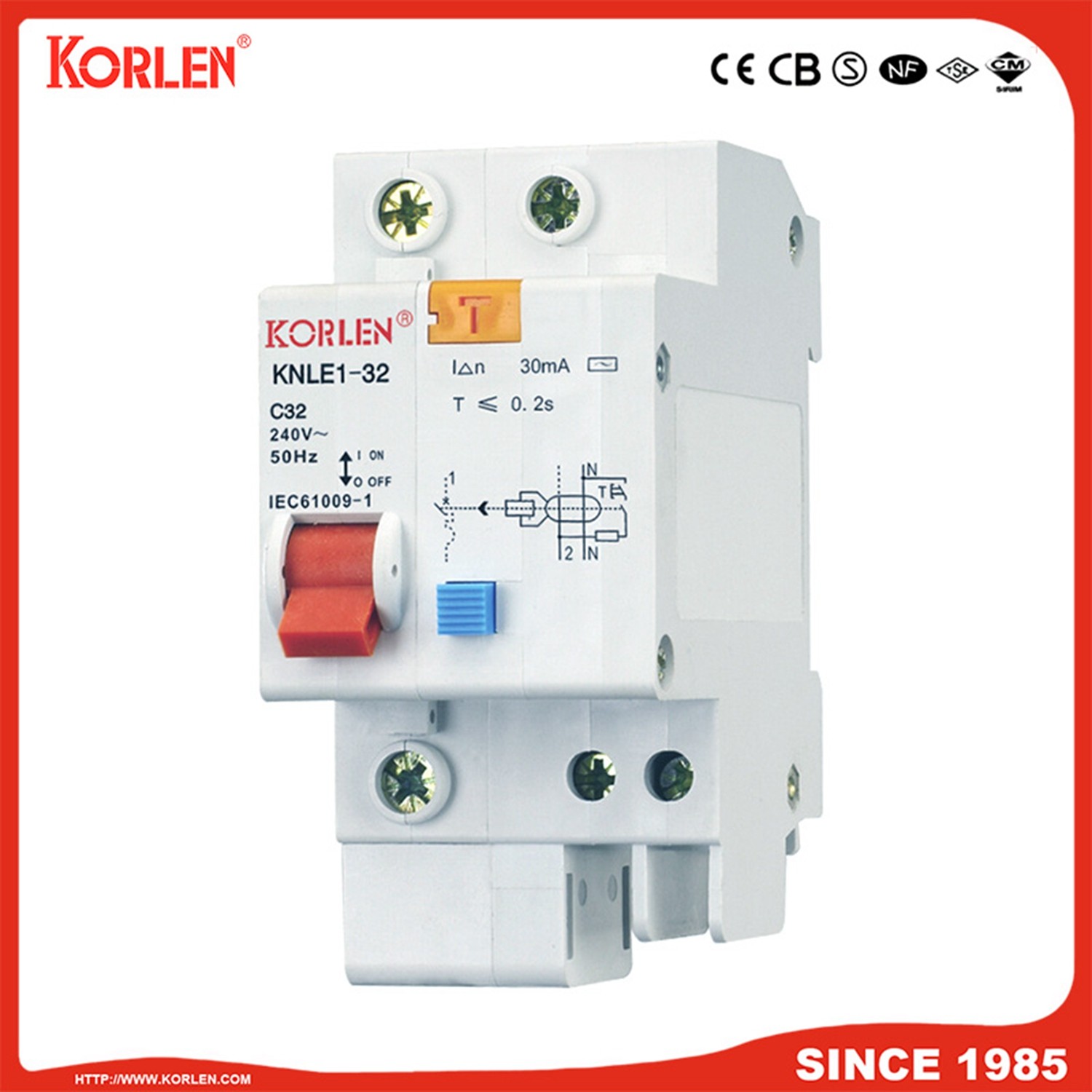

KNLE1-32 Leakage Circuit Breaker
The KNLE1-32 series is a versatile leakage circuit breaker designed for reliable protection in both single-phase (up to 230V) and three-phase (up to 400V) electrical lines. With a rated current capacity of up to 32A, it provides essential safety by automatically interrupting power within 0.2 seconds during electric shocks or leakage events. This unit also handles overload and short-circuit protection, making it an ideal choice for maintaining safety in electrical distribution systems.
Technical Specifications
Rated Working Current
- 6
- 10
- 16
- 20
- 25
- 32
- Rated Working Voltage
- 240/415V
- Rated Frequency
- 50/60Hz
- Rated Limiting Short-Circuit Current
- 4500 A
Protection Features
- Rated Residual Operating Current
- 0.03 A
- Maximum Operating Time
- ≤ 0.1s (IΔn), ≤ 0.04s (5IΔn)
- Instant Release Type
- BCD

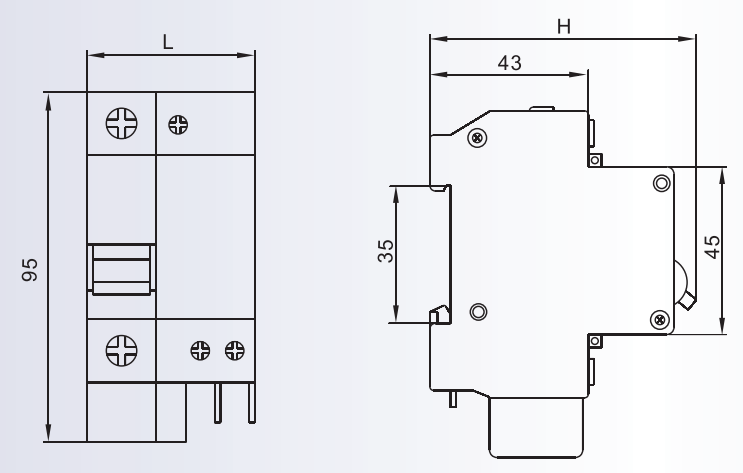

Mechanical & Design
- Available Pole Configurations
- 1P+N2P3P3P+N4P
- Mechanical Life
- 8000
- Electrical Life
- 4000
Compliance
Standards Compliance
Performance Testing
C-Type Release Performance
| Test Current | Tripping Time | Result |
|---|---|---|
| 1.13In | t≤1h | Not tripping |
| 1.45In | t<1h | Tripping |
| 2.55In | 1s<t<60s | Tripping |
