Laser Cladding Machine with Robot Arm
This laser cladding machine integrates optical, mechanical, and electrical technologies for material processing. It utilizes a fiber-coupled laser, robotic arm, and integrated control systems for repair, quenching, cladding, and alloying applications.
Technical Specifications
Overview
High-Performance Robotic Laser Cladding System
This fiber-coupled semiconductor laser robot represents a flexible manufacturing solution that integrates optical, mechanical, electrical, and cooling technologies. Designed for industrial-grade repair and surface enhancement, the system supports laser quenching, cladding, and alloying functions. The six-axis linkage robot ensures high precision and stability, making it an ideal choice for complex three-dimensional processing in demanding sectors like aerospace and automotive manufacturing.
Technical Specifications
- Model
- GS-LS3DA
- Max. Outside Diameter
- 70 mm
- Laser Power Configurations
- 4KW6KW
System Components
System Composition

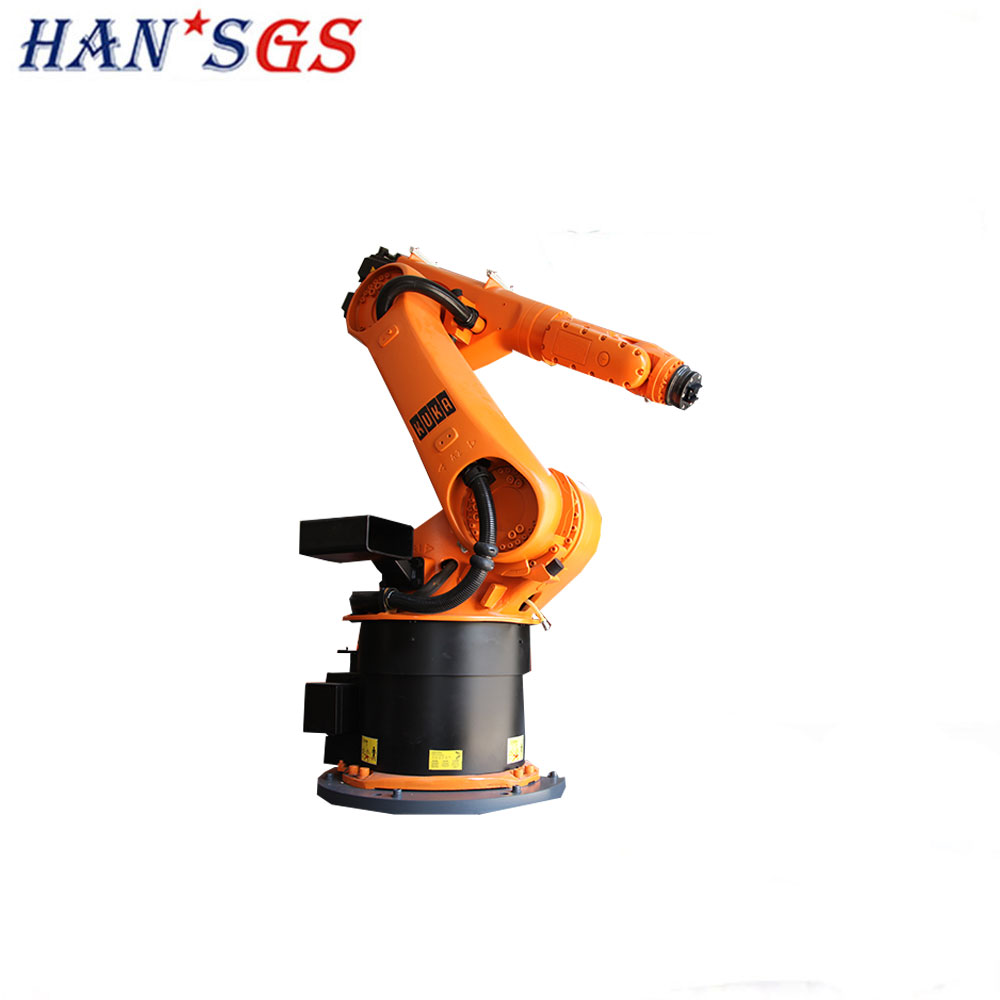

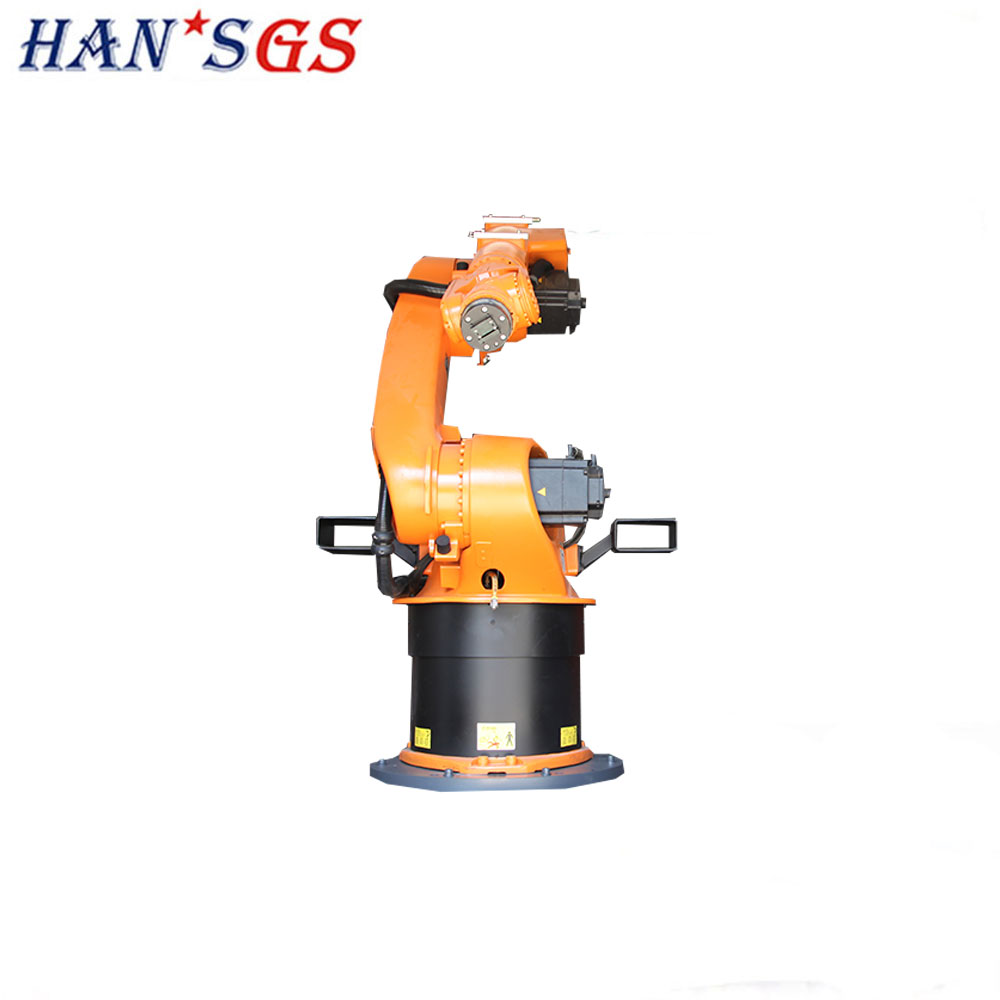

- Six-axis linkage robot
- Fiber coupled laser diode
- Laser light guiding system (feeding fiber & laser head)
- Laser chiller
- Coaxial powder feeding system
- Integrated control systems
- Seven-station rotary indexing table
- Mobile workstations
Performance & Efficiency
Performance Metrics
15 degrees/hour
Energy Consumption (4000W)
6 Axis
Robot Axis Linkage
Applications
Weldable Materials
Carbon SteelStainless SteelAluminumVarious Metals
Target Industries
- Aerospace
- Locomotive Manufacturing
- Engineering & Agricultural Machinery
- Automobile Manufacturing
- Elevator & Textile Machinery
- Electrical Hardware & IT
Operational Features
Key Features
- 3D welding capability via specialized software
- Low consumable cost (protection lens)
- High welding speed and efficiency
- Smooth, beautiful finish without deformation
- Stable performance for industrial environments
