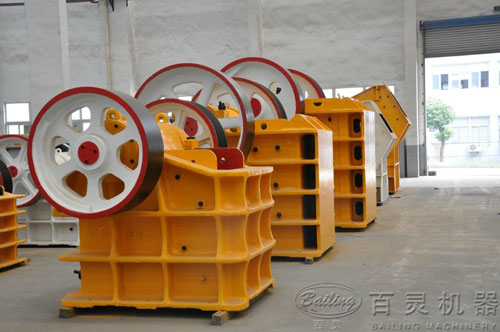

Jaw Crusher
This jaw crusher is designed for primary crushing applications in mining and construction. It features a heavy-duty construction and high-strength manganese steel jaw plate for efficient crushing of hard materials.
Technical Specifications
Overview
High-Efficiency Jaw Crusher
The Jaw Crusher utilizes an eccentric shaft mechanism to drive the movable jaw, effectively crushing materials through compression and cutting. Designed for primary crushing applications, it features a deep crushing cavity that enhances feeding and output capacity while ensuring a homogeneous final product size. This robust machine is engineered for energy efficiency, offering 15%-30% savings, and is built for low-noise, low-dust operation in demanding industrial environments.
Key Features
Operational Advantages
- Deep crushing cavity for increased capacity
- High crushing ratio with homogeneous output
- Easy discharge opening adjustment via gasket system
- Safe and reliable lubrication system
- Energy-saving design (15%-30% efficiency gain)
- Simple structure for low-cost maintenance
Technical Specifications
Model Performance Data
| Model | Max Feed (mm) | Discharge (mm) | Capacity (t/h) | Power (kW) | Weight (t) |
|---|---|---|---|---|---|
| PE150×250 | 125 | 10-14 | 1-3 | 5.5 | 1.5 |
| PE250×400 | 210 | 20-50 | 5-20 | 15 | 2.5 |
| PE400×600 | 350 | 40-100 | 15-50 | 30 | 6.8 |
| PE500×750 | 425 | 50-100 | 30-85 | 55 | 12.5 |
| PE600×900 | 480 | 65-160 | 45-110 | 55-75 | 18.5 |
| PE750×1060 | 630 | 80-140 | 105-195 | 90-110 | 29.5 |
| PE900×1200 | 750 | 95-165 | 90-220 | 110-132 | 56 |
| PE1000×1200 | 850 | 195-265 | 315-550 | 110 | 57 |
| PE1200×1500 | 1,000 | 150-300 | 400-800 | 160 | 100.9 |
| PEX150×750 | 120 | 18-48 | 5-16 | 15 | 3.8 |
| PEX250×750 | 210 | 15-60 | 15-30 | 22-30 | 5 |
| PEX250×1000 | 210 | 15-60 | 15-50 | 30-37 | 7 |
| PEX250×1200 | 210 | 15-60 | 20-60 | 37-45 | 9.8 |
| PEX400×900 | 350 | 25-80 | 30-120 | 75 | 13 |
| PEX300×1300 | 250 | 20-90 | 16-65 | 55 | 11.6 |
