IR-Cut Filter Module VIR13 for Analog Cameras
This IR-cut filter module is designed for security and surveillance analog camera systems. It features a slide mechanism to switch between IR-cut and IR-pass modes, improving image quality in varying lighting conditions.
Technical Specifications
Overview
IR-Cut Filter Module VIR13
The VIR13 is a precision IR-cut filter module engineered for analog surveillance and security camera systems. This compact module features an integrated slide mechanism that effectively switches between IR-cut and IR-pass modes, optimizing image quality across varying lighting conditions. By blocking infrared light during the day and allowing it at night, it ensures consistent, high-fidelity performance for professional surveillance applications.
Electrical Specifications
- Rated Voltage
- 3 V
- Operating Voltage Range
- 2-6V
- Coil Resistance
- 20 ±10%Ω
- Wiring Specifications
- UL 10368AW#30Red and Black wires2 PIN 1.25 connector
Optical Properties
- Maximum Effective Aperture
- 8 mm
- Glass Thickness
- 0.3 mm
- Quantity of Glass
- 2
Technical Dimensions

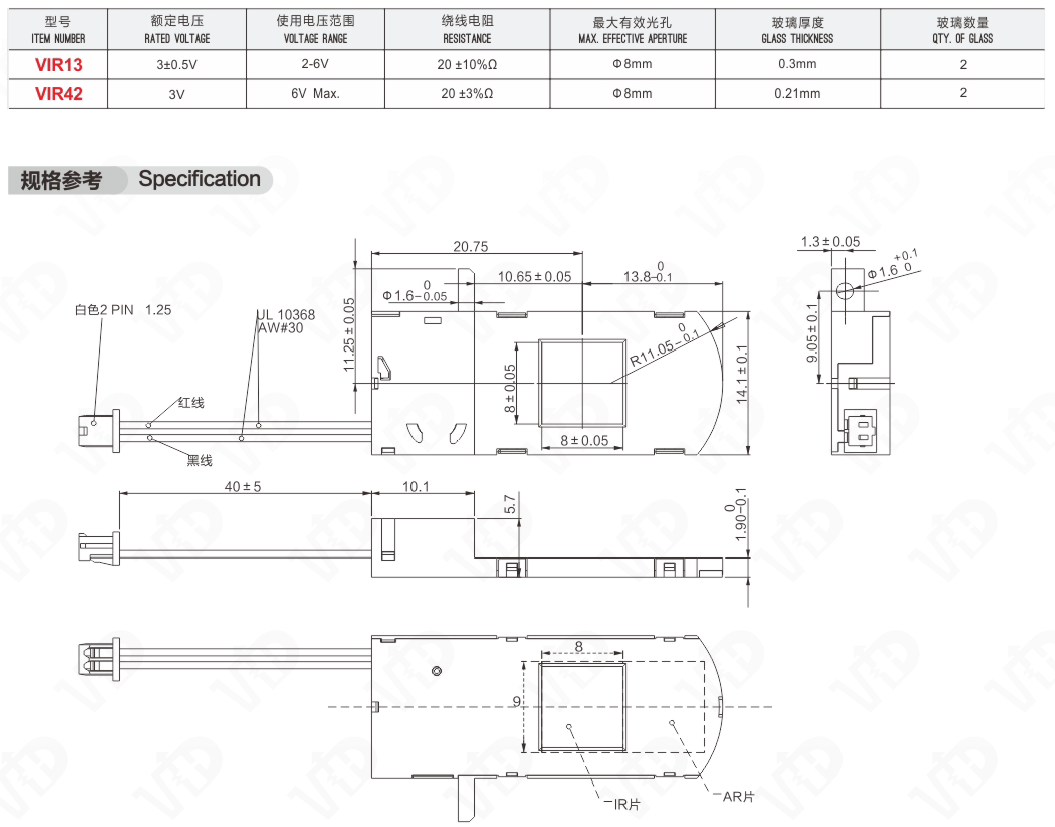

Key Dimensions Reference
| Parameter | Value |
|---|---|
| Primary Length | 11.25 ±0.05 mm |
| Overall Length | 20.75 mm |
| Mounting Width | 10.65 ±0.05 mm |
| Aperture Diameter | 8 ±0.05 mm |
| Wire Length | 40 ±5 mm |
