Surveillance Camera Lens Assembly with Manual Focus
This lens assembly is designed for surveillance and security applications. It features a geared focus ring for precise manual adjustment, allowing for fine-tuning of image clarity.

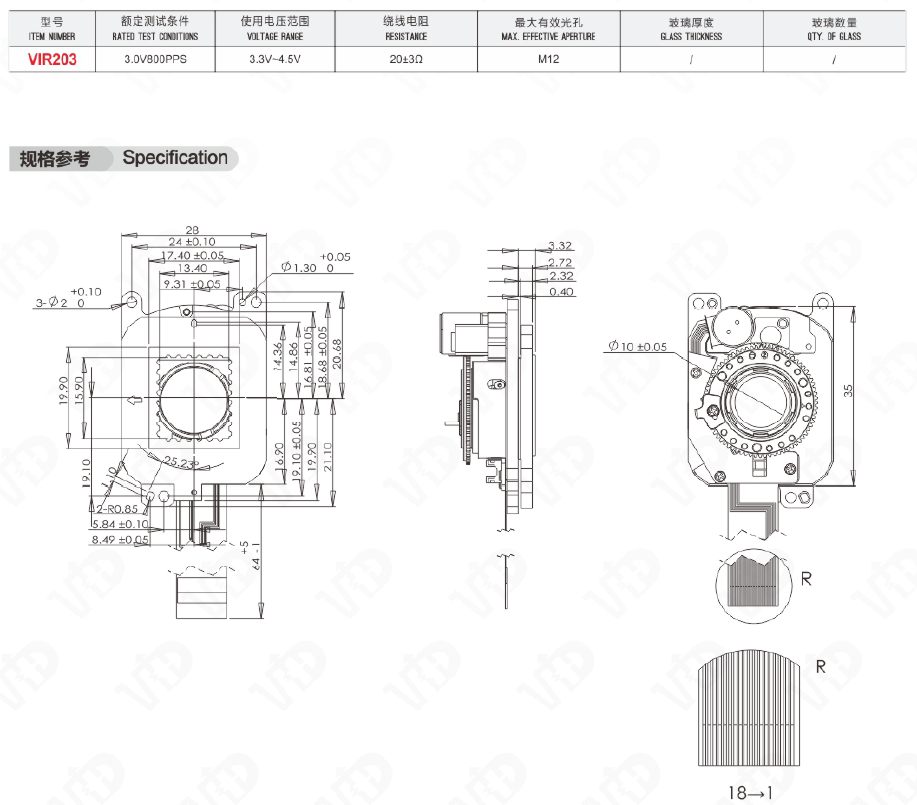

Technical Specifications
Overview
Precision Surveillance Lens Module
The VIR203 is a specialized lens assembly engineered for professional surveillance and security applications. It features a geared focus ring that allows for precise manual adjustments, ensuring optimal image clarity in various setups. Designed for seamless integration, the module utilizes a flexible flat cable (FFC) and offers a robust, compact construction suitable for diverse analog surveillance systems.
Electrical Specifications
- Rated Test Conditions
- 3.0V 800PPS
- Voltage Range
- 3.3V - 4.5V
- Winding Resistance
- 20 Ω
Optical Specifications
Glass Configuration
1 pcs
Quantity of Glass
1 mm
Glass Thickness
- Max Effective Aperture
- M12
Key Features
- Product Highlights
- Manual FocusGeared Focus RingFFC ConnectivityAnalog Surveillance CompatibleCompact Design
