Technical Specifications
Product Overview
Precision IR-CUT Filter for Surveillance
The VIR98 is a precision-engineered IR-CUT filter designed specifically for high-performance security and surveillance camera systems. This component effectively manages infrared light to ensure superior color accuracy and image clarity across diverse lighting environments. Built with a robust mounting frame and an integrated motor, it offers reliable filter control for both day and night operations.
Electrical Specifications
- Rated Test Conditions
- 3.0V 1000PPS
- Operating Voltage Range
- 3V - 5V
- Coil Resistance
- 200Ω ±7%
Optical Performance
Glass Thickness
0.455 mm
IR Glass
0.5 mm
AR Glass
- Maximum Effective Aperture
- 17 x 12.6 mm
- Quantity of Glass Elements
- 2

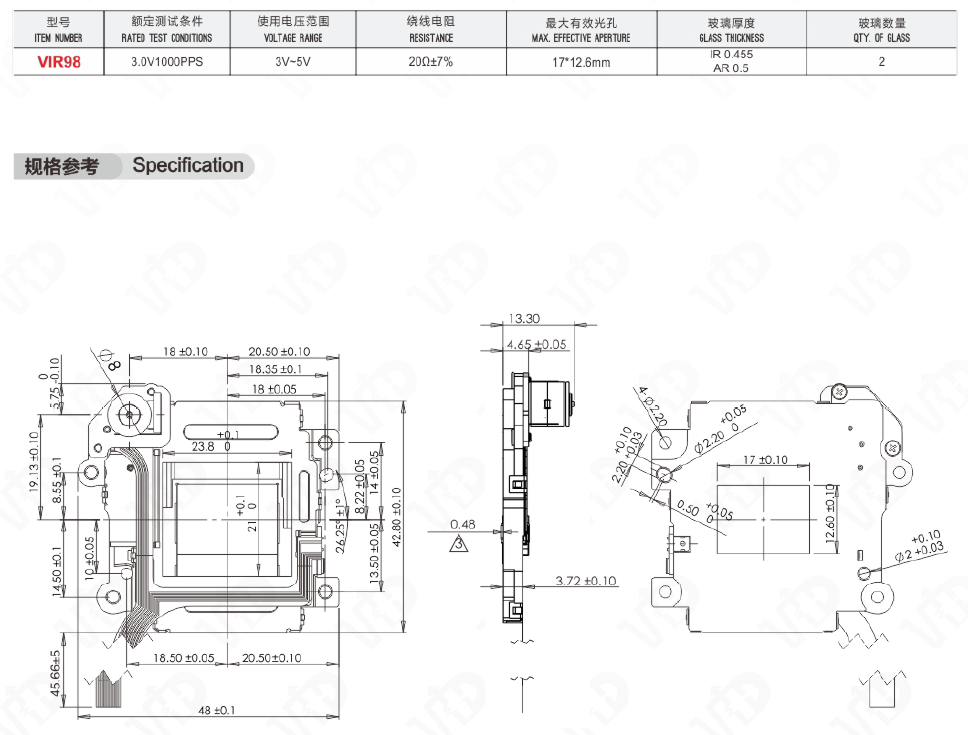

Technical Dimensions
Critical Dimensions
| Parameter | Value |
|---|---|
| Mounting Hole Spacing | 18.50 ±0.05 mm |
| Overall Width | 20.50 ±0.10 mm |
| Assembly Height | 18.35 ±0.1 mm |
