IR-CUT Filter for Surveillance Cameras
This IR-CUT filter is designed for surveillance camera lenses. It features a motorized mechanism for automatically switching between infrared (IR) cut and IR pass modes to optimize image quality.
Technical Specifications
Product Overview
Precision IR-CUT Filter Assembly
The VIR128 is a professional-grade IR-CUT filter assembly engineered for surveillance and security camera systems. It features a motorized mechanism that automatically switches between IR cut and IR pass modes to optimize image quality across varying lighting conditions. This component ensures accurate color reproduction and enhanced low-light performance, making it an essential part for high-quality analog surveillance applications.
Electrical Specifications
- Rated Test Condition
- 3.3 V
- Rated PPS
- 800 PPS
- Voltage Range
- 3V - 4V
- Coil Resistance
- 20 Ω
Optical Specifications
- Max Effective Aperture
- 14.5 x 9.5 mm
- Glass Material
- IR 1.1 polarizing film
- Glass Thickness
- 1.08 mm
- Quantity of Glass Elements
- 2

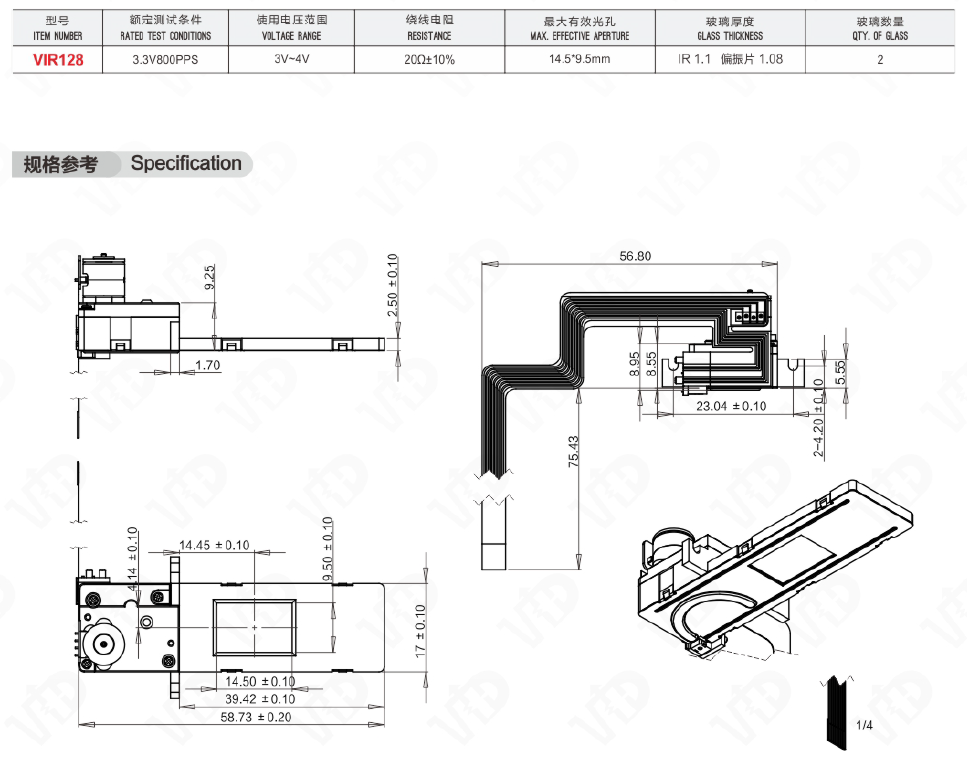

Dimensional Data
Key Dimensions Reference
| Dimension Type | Value (mm) |
|---|---|
| Main Length | 58.73 ±0.20 |
| Primary Width | 14.50 ±0.10 |
| Mounting Hole | 2-4.20 ±0.10 |
| Height Reference | 23.04 ±0.10 |
