IR-CUT Filter for Camera Lenses
This IR-CUT filter is designed for security and surveillance camera lenses. It improves image quality by blocking infrared light during the day and allowing it to pass through at night for enhanced low-light performance.
Technical Specifications
Overview
IR-CUT Filter for Enhanced Imaging
The VIR19 IR-CUT filter is a precision component designed for security and surveillance camera lenses. It optimizes image quality by blocking infrared light during daylight hours and allowing it to pass through at night, significantly improving low-light performance. This compact unit features an integrated electrical connector for seamless installation into existing camera systems.
Electrical Specifications
- Rated Voltage
- 3.5 V
- Operating Voltage Range
- 3.5 - 5V
- Resistance
- 25 Ω
Optical Specifications
Glass Thickness
0.3 mm
IR Thickness
0.3 mm
AR Thickness
- Max Effective Aperture
- M12
- Quantity of Glass
- 2

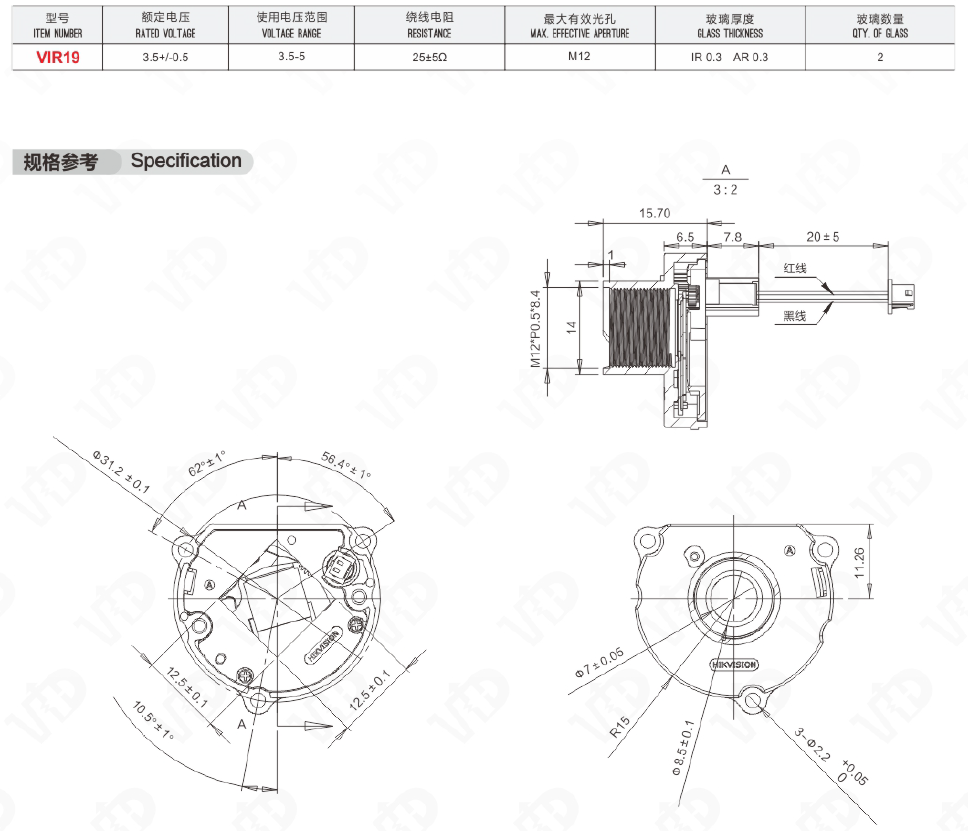

Mechanical Dimensions
Key Dimensions
| Parameter | Value |
|---|---|
| Diameter | 31.2 ±0.1 mm |
| Mounting Holes | 3 x 2.2 mm |
| Height | 14 mm |
| Length | 12.5 ±0.1 mm |
