Technical Specifications
Overview
Versatile Welding Solution
This inverter welding machine utilizes advanced IGBT technology to deliver high-efficiency performance for demanding welding tasks. Designed for versatility, it supports both MIG/MAG and MMA welding processes, making it suitable for a variety of materials including low carbon steel, stainless steel, and aluminum. With its fan-cooled design and thermostatic protection, this unit ensures reliable operation and precise arc control for professional welding applications.
Technical Specifications
- Welding Processes
- MIG/MAGMMAFlux (Gasless)
- Rated Duty Cycle
- 60 %
- No-Load Voltage
- 42 V
- Mains Voltage
- 220 V
Performance Metrics

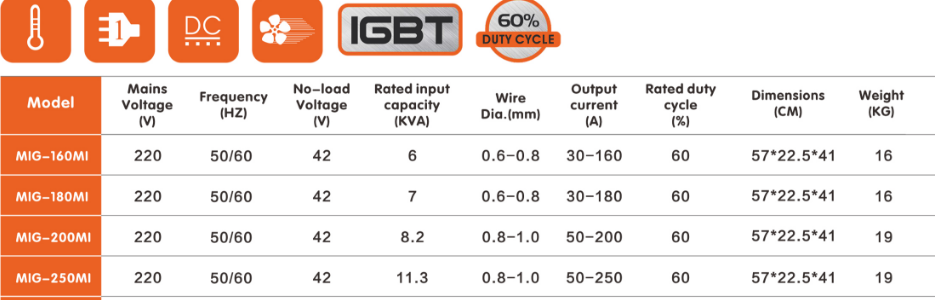

Performance Specifications
| Model | Rated Input (KVA) | Current Range (A) | Wire Diameter (mm) | Weight (kg) |
|---|---|---|---|---|
| MIG-160MI | 6 | 30-160 | 0.6-0.8 | 16 |
| MIG-180MI | 7 | 30-180 | 0.6-0.8 | 16 |
| MIG-200MI | 8.2 | 50-200 | 0.8-1.0 | 19 |
| MIG-250MI | 11.3 | 50-250 | 0.8-1.0 | 19 |
Physical Characteristics
Cooling System
Fan-cooled
Safety Features
Thermostatic Protection
- Dimensions
- 57 x 22.5 x 41 cm
