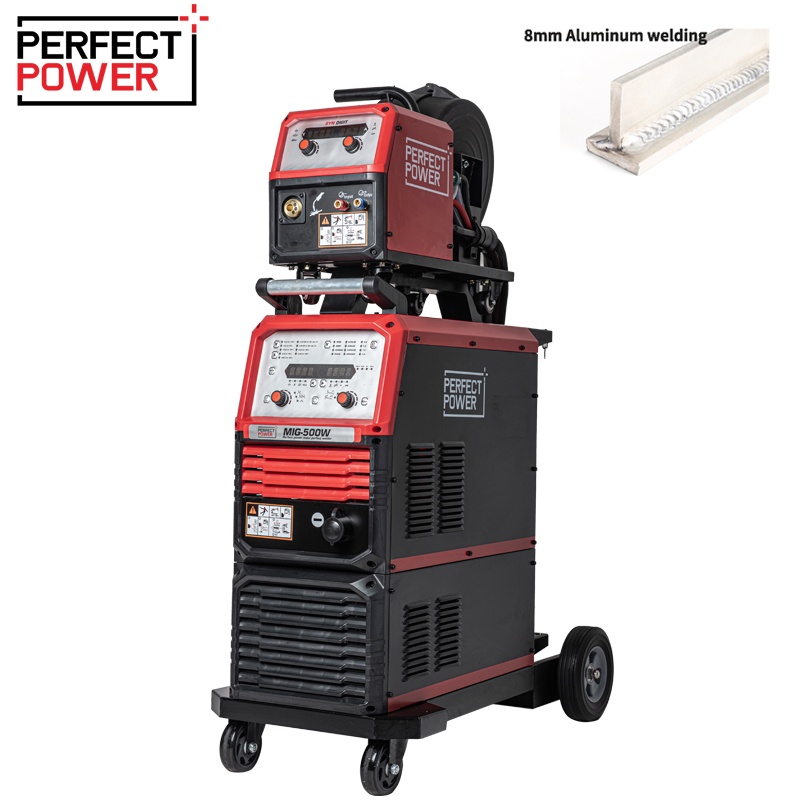

Digital Controlled Double-Pulse MIG/MAG Inverter Welder
This digital controlled inverter welder is designed for double-pulse MIG/MAG welding. It is suitable for aluminum and wire welding using the GMAW (Gas Metal Arc Welding) process.
Technical Specifications
Overview
Professional Inverter Welding System
This digital controlled double-pulse MIG/MAG inverter welder is engineered for high-performance welding tasks, including aluminum and wire welding. It features an integrated wire feeder with a double-drive system for stable operation and utilizes advanced IGBT technology for reliability. Designed for industrial and workshop environments, it offers high efficiency, energy savings, and superior weld quality with minimal spatter.
Performance Metrics
Key Performance Metrics
500 A
Max Output Current
60 %
Duty Cycle
85 %
Efficiency
Technical Specifications
Electrical Requirements
| Parameter | Value |
|---|---|
| Input Voltage | AC 380V |
| Input Capacity | 24.4 KVA |
| Input Current | 37 A |
| No-load Voltage | 65 V |
| Power Factor | 0.93 |
- Welding Capabilities
- Double-Pulse MIG/MAGAluminum WeldingCarbon Steel WeldingStainless Steel WeldingFlux-cored WeldingGMAW
- Rod Diameter Range
- 0.8 - 1.6 mm
Physical Characteristics
Dimensions & Weight
- Weight: 91 kg
- Packing Dimensions: 99 x 48 x 95 cm
Protection & Insulation
IP21 ProtectionClass F Insulation
Features
Key Features
- Digital control panel with SYN adjustment
- Integrated double-drive wire feeder
- Single and double pulse modes
- Includes trolley for mobility
- High duty cycle for industrial use
- Energy-saving inverter technology
