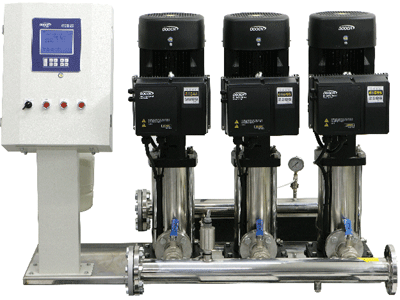

Inverter-Controlled Multi-Pump Booster System
This multi-pump booster system uses an inverter panel to maintain consistent discharge pressure. It offers energy savings and easy installation using high-quality components.
Technical Specifications
Overview
Inverter-Controlled Multi-Pump Booster System
This advanced multi-pump booster system is engineered for precise discharge pressure control and high energy efficiency. Featuring a robust configuration of vertical or horizontal multistage pumps, it is designed for seamless integration into water distribution networks and industrial processes. The system provides automated, reliable performance with sophisticated control features including dry-run protection, pump alternation, and remote monitoring capabilities.
Performance Metrics
Performance Specifications
720 m3/h
Maximum Flow
238 m
Maximum Head
System Configuration
- Pump Type
- Vertical / Horizontal multistage pump
- Inverter Power Range
- 0.75KW - 45KW
Control System Features
Primary Control Functions
- Regular pressure control
- Automatic return operation after power restoration
- Main pump alternation
- Failure pump skip operation
- Dry-running protection
- Winter-sowing and sticking prevention
- Emergency operation modes
- Central monitoring communication
- Interface
- Korean Liquid crystal LCD (English, Chinese selection)
