Intelligent On-Load Capacity Transformer
This intelligent on-load capacity transformer automatically adjusts its capacity based on the load demand. It optimizes performance and reduces energy losses with robust construction and advanced cooling mechanisms.
Technical Specifications

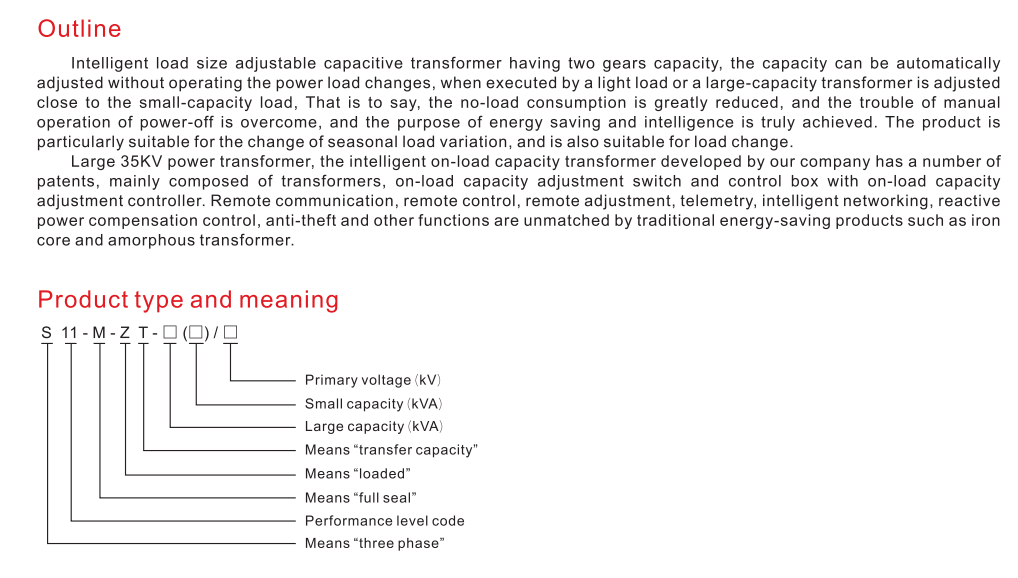

Product Overview
Intelligent On-Load Capacity Transformer
This series of intelligent on-load capacity transformers is engineered for efficient voltage transformation in power transmission and distribution networks. Featuring advanced on-load tap changing technology, it automatically adjusts capacity based on real-time load demand to minimize no-load consumption and operational costs. Designed for seasonal load variations and fluctuating demands, it provides a stable, high-efficiency power supply for industrial and commercial applications.
Key Features
- Integrated Technologies
- On-load capacity adjustmentIntelligent monitoringRemote communicationReactive power compensationAnti-theft functions
Technical Specifications
10kV Performance Metrics
| Model | No-load Loss (W) | Load Loss (W) | Impedance (%) |
|---|---|---|---|
| S11-M-ZT-160(50) | 280(130) | 2310(870) | 4 |
| S11-M-ZT-200(63) | 340(150) | 2730(1040) | 4 |
| S11-M-ZT-315(100) | 480(200) | 3830(1500) | 4 |
| S11-M-ZT-630(200) | 810(340) | 6200(2600) | 4.5 |
Operational Standards
- Rated Voltage: 10/0.4 kV
- Connection Type: Dyn11/Yyn0
- Capacity Adjustment: Two-gear automatic
Benefits
Operating Cost Savings
51 %
Average Annual Operating Cost Reduction
3 years
Estimated Investment Recovery Time
45 %
Average No-load Loss Reduction
