Technical Specifications
Overview
Industrial Rotary Selector Performance

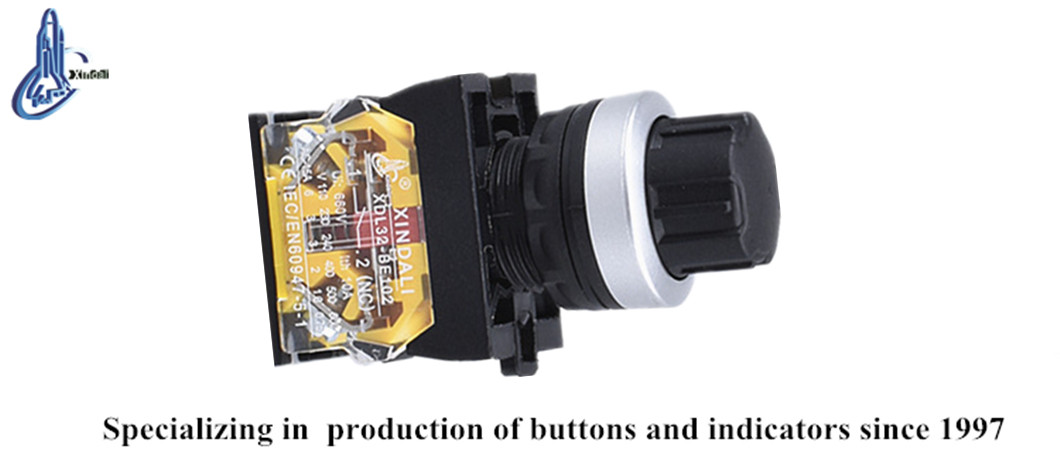

The industrial rotary selector switch is designed for high-performance control circuit applications, supporting AC voltages up to 660V and DC voltages under 400V. Engineered for durability, it features a robust construction utilizing zinc alloy and high-grade anti-flam plastic with silver alloy contacts to ensure resistance against electrical erosion. The series complies with international safety standards including IEC60947-5-1, making it a reliable choice for signal and interlocking control in demanding industrial environments.
Electrical Specifications
- Rated Insulation Voltage
- 600 V
- Rated Withstanding Impulse Voltage
- 6 kV
- Pollution Grade
- 3
Environmental and Durability
Protection Rating
IP40IP54IP65IP66IP67IP68
- Operating Temperature Range
- -5°C to +55°C
- Storage Temperature Range
- -25°C to +70°C
- Mechanical Life (Standard Button)
- 3000000
- Mechanical Life (Emergency Stop)
- 300000

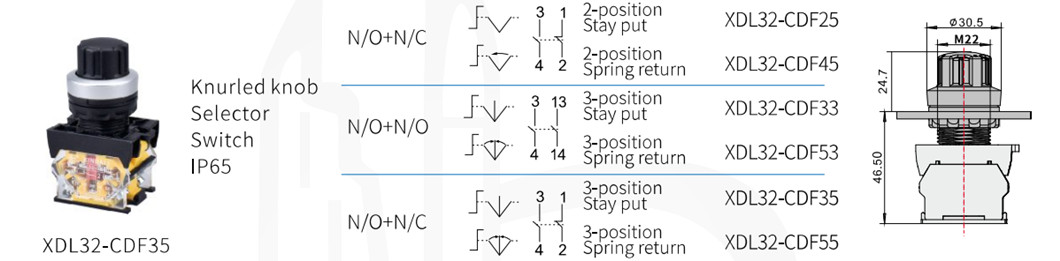

Mechanical Dimensions
Fastening Torque
0.8 Nm
Recommended Torque
1.2 Nm
Maximum Torque
- Mounting Hole Diameter
- 30.5 mm
- Knob Height
- 24.7 mm
Certifications and Standards
Standards Compliance
- IEC 60947-5-1
- GB/T 14048.1
- GB 14048.5
- IEC 68-2-6 (Vibration)
- IEC 68-2-27 (Impact)
- Certifications
- CEISO 9001RoHSUL
