Industrial Foot Switch
This foot switch is a robust and reliable electrical control device designed for industrial applications. Activated by foot pressure, it provides hands-free operation for increased efficiency and safety in machinery, manufacturing, and medical equipment.
Technical Specifications
Product Overview
Industrial Foot Switch FS Series
The FS series foot switch is a robust electrical control device engineered for demanding industrial environments. Designed for hands-free operation, it enhances efficiency and safety in machinery, manufacturing, and medical equipment applications. These switches feature durable enclosures built to withstand mechanical stress and harsh conditions, offering reliable control with various configuration options.
Technical Specifications
Configuration Options
- Single-pole single-throw (SPST)
- Single-pole double-throw (SPDT)
- Multiple-pole options
- Single pedal
- Dual pedal
- Available Models
- FS-201FS-202FS-101FS-102FS-105FS-2FS-302FS-01FS-1FS-3 3SFS-402SFMS-10SFMS-15SFMS-20MD13HSMD-88HMD-68HYDT1-1018013

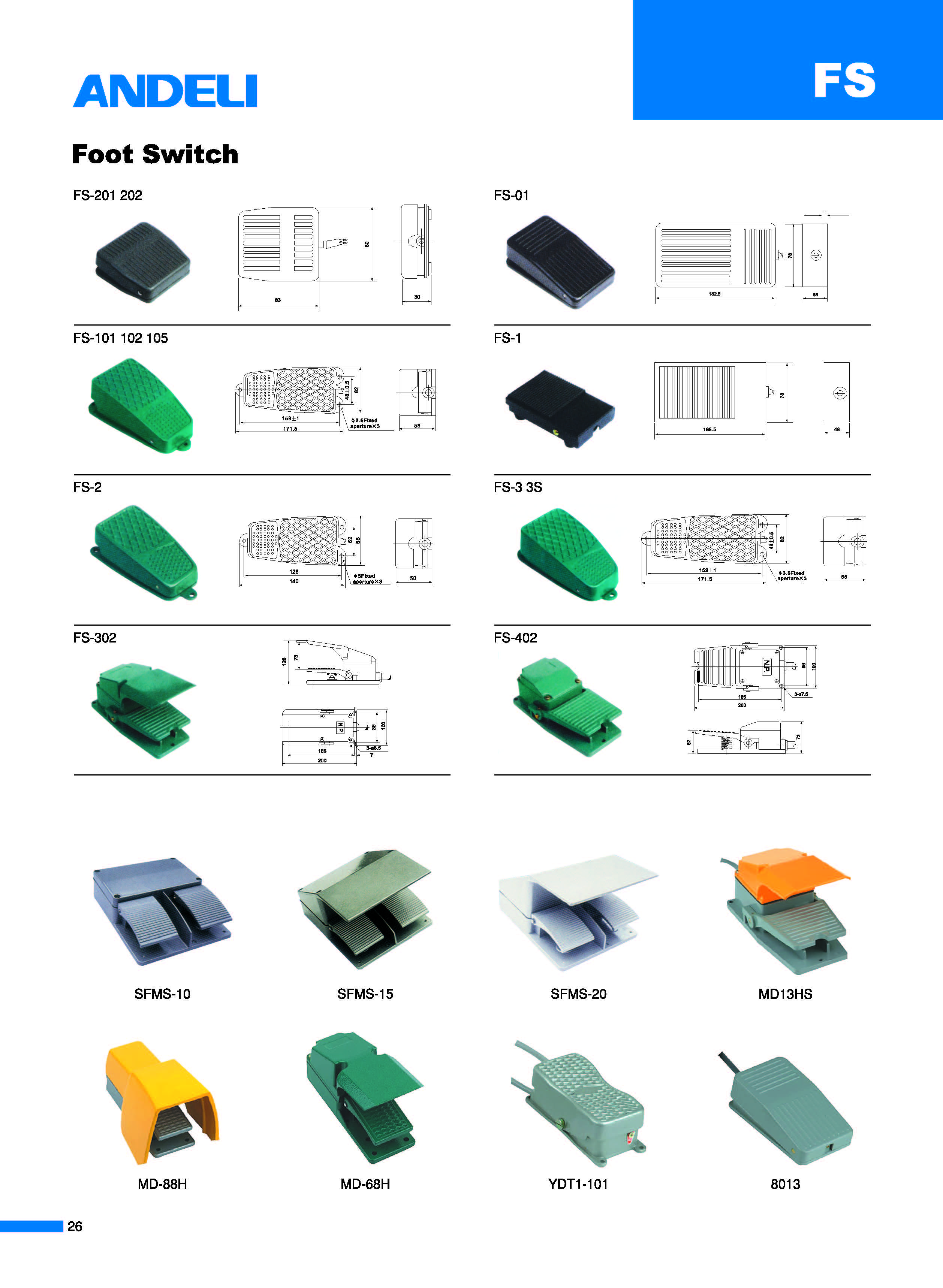

Dimensional Data
Model Dimensions Reference
| Model | Dimensions (mm) |
|---|---|
| FS-201/202 | 83x80x30 |
| FS-101/102/105 | 171.5x48x82x58 |
| FS-2 | 140x52x56x50 |
| FS-302 | 200x78x100 |
| FS-01 | 83x80x30 |
| FS-1 | 185.5x78x48 |
| FS-3 3S | 171.5x48x82x58 |
| FS-402 | 200x78x100 |
Features
Key Features
Hands-free operationDurable enclosureMechanical stress resistantEasy installationSafety covers availableAdjustable sensitivity
