Technical Specifications
Overview

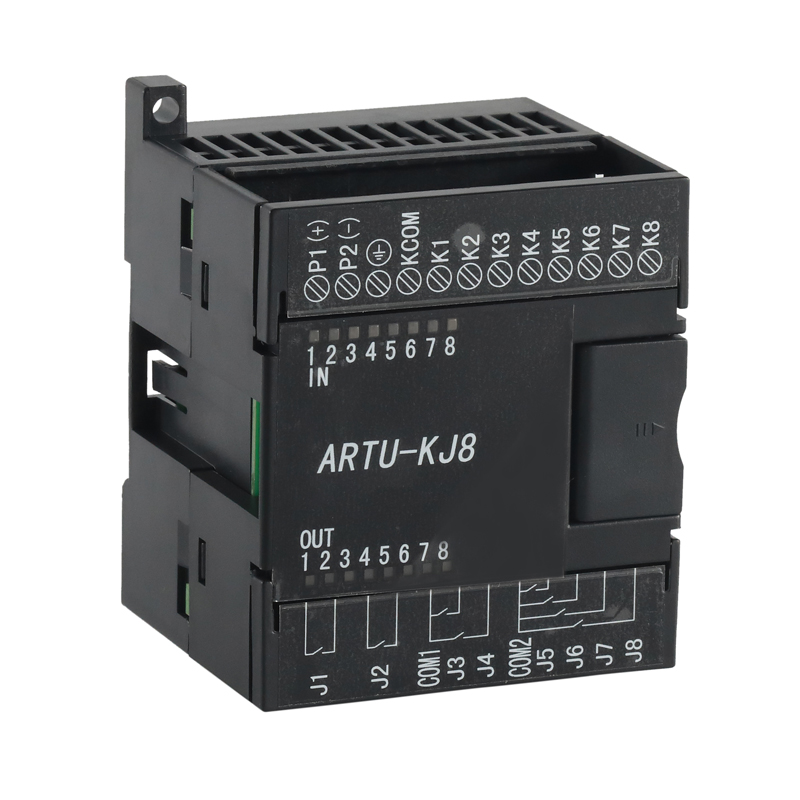

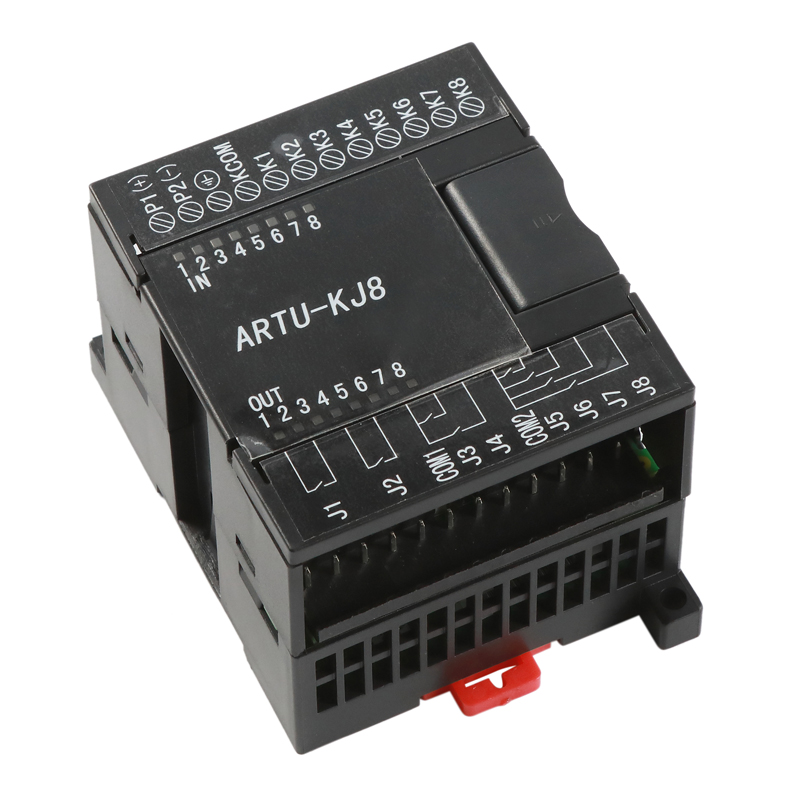

High-Performance Remote Terminal Unit
This distributed monitoring and control device is designed for intelligent power distribution and industrial automation applications. It supports remote control and signaling functions, featuring dual communication interfaces for parameter configuration and data acquisition. Built with robust hardware and software watchdog technology, it ensures reliable operation in demanding environments while maintaining a compact, easy-to-install form factor.
Technical Specifications
Reliability Features
- Hardware watchdog technology
- Software watchdog technology
- Channel status indicators
- Communication status indicators
- Power Supply
- 24VDC (±10%)220VACAC/DC 85~265V
- Communication Protocol
- RS485 (MODBUS-RTU)
Interface & I/O
Input/Output Channels
8 CH
Input Channels
8 CH
Output Channels
Terminal Interfaces
| Interface Type | Function |
|---|---|
| Communication Interface 1 | Parameter setting and commissioning |
| Communication Interface 2 | Four remote value reading/setting |
| DIP Switch | Address and baud rate configuration |
