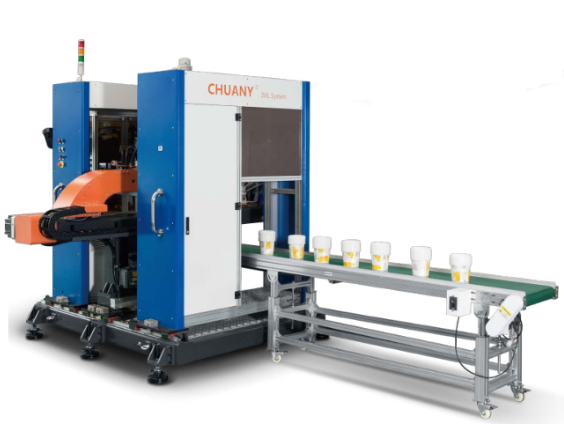

In-Mold Labeling Robot System
This high-speed system integrates a robotic arm with a conveyor for efficient label application during molding. It ensures precise label placement and rapid cycle times for high-volume automated labeling solutions.
Technical Specifications
Overview
High-Efficiency IML Robot System
This advanced In-Mold Labeling (IML) robot system is designed for seamless integration with injection molding machines ranging from 160T to 800T. Engineered for high-speed production, it achieves a minimum cycle time of 2.8 seconds, making it ideal for thin-wall packaging applications. The modular, open-structure design ensures easy maintenance and allows for flexible adjustments, significantly reducing the investment required for future product lines.
Performance Metrics
Minimum Cycle Time
2.8 s
Cycle Time
Compatibility
- Compatible IMM Tonnage
- 160T - 800T
Technical Specifications
Key System Features
- Open structure design for easy maintenance
- Adjustable distance for label stock and stacking fixture
- High-precision linear rails and synchronous belts
- High-performance vacuum pump for labeling
- Integrated static system
- Automatic product stacking and conveyor system
Core Components
| Component | Specification/Quality |
|---|---|
| Drive System | World-class servo motor and reducer |
| Motion System | High-precision linear rail and synchronous belt |
| Labeling System | High-performance vacuum pump |
Compliance & Quality
- Certifications
- CE CertifiedEuro Food Grade Compliant
