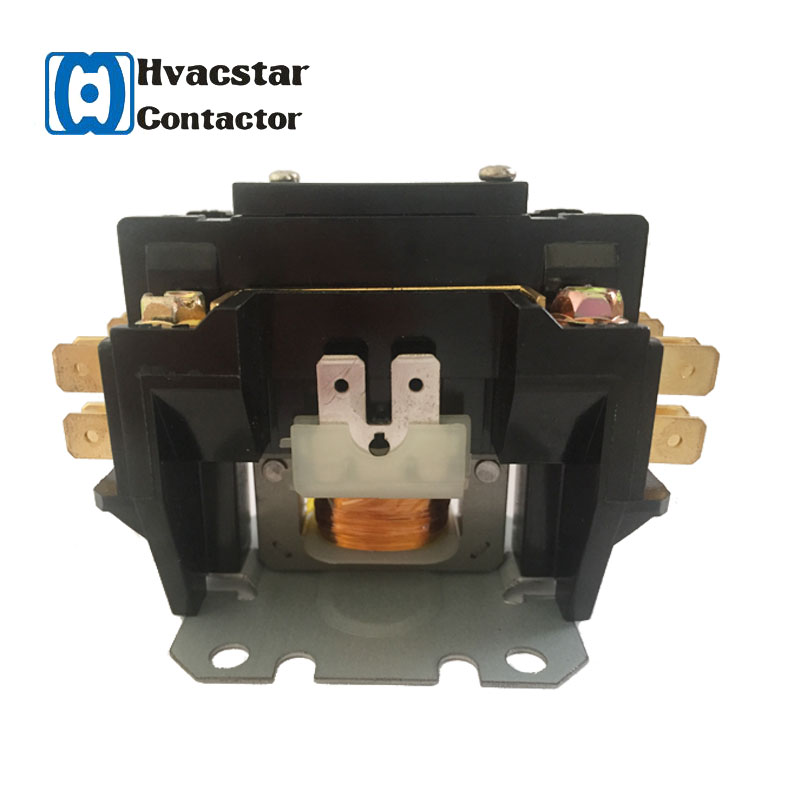

HVAC Definite Purpose Contactor 1-Pole 20A
This is a CUL certified HVAC definite purpose magnetic contactor with a 1-pole configuration and a 20A current rating. It is designed for switching AC circuits and is commonly used in HVAC systems for controlling compressors and fans.
Technical Specifications
Product Overview
Reliable HVAC Definite Purpose Contactor
This 1-Pole 20A Definite Purpose Contactor is engineered for demanding HVAC and refrigeration applications, including air conditioning and heating systems. It features a robust design capable of handling 20 FLA and 30 Resistive Amps, ensuring efficient power switching for compressors and fans. Certified to international safety standards, it offers a versatile solution for industrial control equipment and motor controllers.
Electrical Ratings
Full Load Amps (FLA)
20 A
Full Load Amps
Locked Rotor Amps (LRA)
| Voltage (V) | LRA (A) |
|---|---|
| 240V | 120 |
| 480V | 100 |
| 600V | 80 |
- Resistive Amps
- 30 A
- Coil Voltage
- 120 VAC
- Frequency
- 50/60 Hz
Technical Configuration
- Number of Poles
- 1
- Connection Types
- ScrewBoxPressure Plate
- Mounting Type
- NEMA Mounting Base
Compliance & Safety
Certifications
cUL CertifiedUL 508CSA C22.2CELow Voltage Directive 2006/95/EC
- Short Circuit Current Rating
- 5,000A @ 277V/480V/600V
- Surrounding Air Temperature
- 40 °C
Applications
Primary HVAC Applications
- Air Conditioning
- Refrigeration
- Heating Systems
Other Industrial Uses
- Food Service Equipment
- Vending Machines
- Compressors & Pumps
- Cranes & Hoists
- Welding Machines
- Power Supplies
- Lighting Control
Service Life
- Life Rating Options
- 100,000 Cycles250,000 Cycles
