Technical Specifications
Product Overview

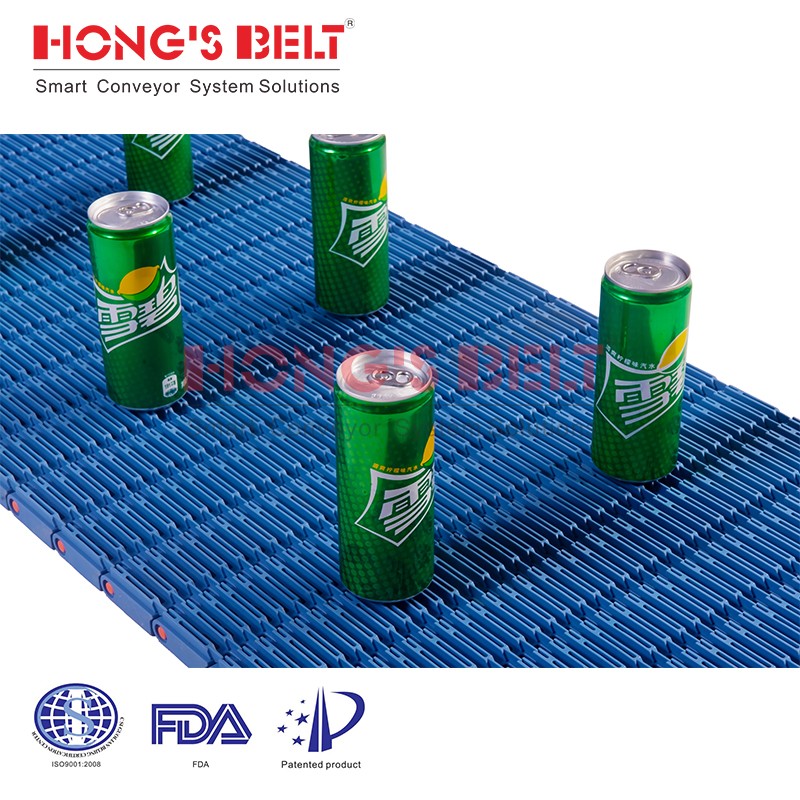

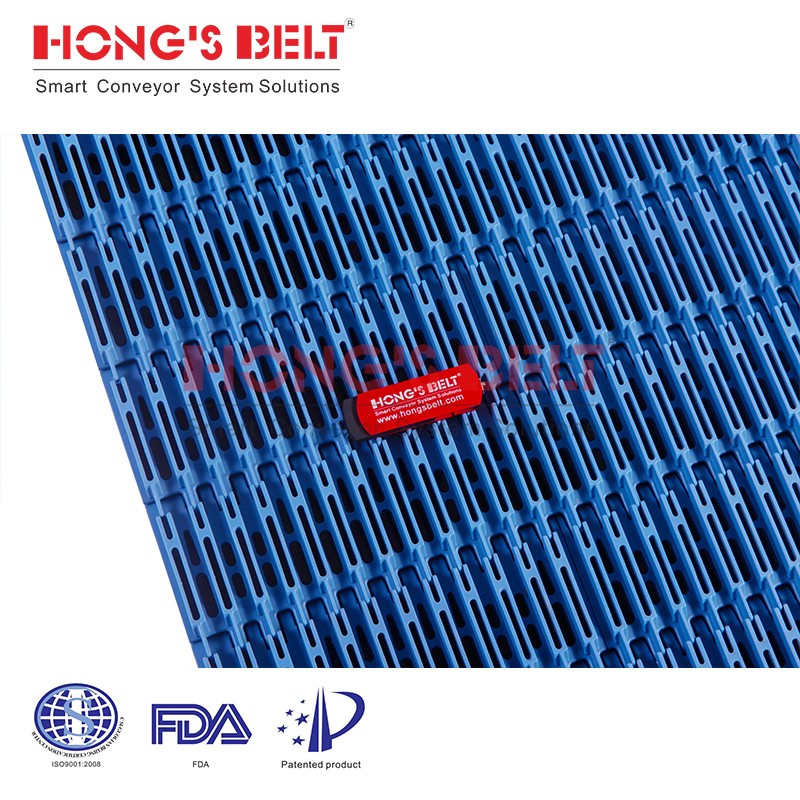

High-Performance Modular Belt for Sterilization
The HS-2700D modular plastic conveyor belt is engineered specifically for demanding sterilization environments. Its robust, open-structure design facilitates optimal air circulation and drainage, ensuring efficient cleaning and minimizing bacterial growth risks. Built with food-grade materials, this belt provides exceptional chemical and temperature resistance, making it an ideal solution for food processing and pharmaceutical applications.
Technical Specifications
- Pitch
- 57.15 mm
- Belt Thickness
- 24.8 mm
- Minimum Width
- 114.3 mm
- Open Area
- 22.3 %
- Rod Diameter
- 8 mm
- Working Temperature
- -40°C to 260°C
Material & Compliance
Certifications
FDA ApprovedEU Compliant
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Design Features
Key Capabilities
- Floating in water capability
- Food defrosting compatible
- Maintenance-free design
- Easy to clean
- High load capacity (up to 1.2 tons/sqm)
Configuration
| Feature | Status |
|---|---|
| Flight | No |
| Side Guard | No |
| Curve | No |
Applications
Suitable Industries
- Meat (Beef & Pork)
- Poultry
- Sea Food
- Bakery
- Snack Food
- Fruit & Vegetables
- Automotive
- Packaging
- Printing/Paper
- Textile
