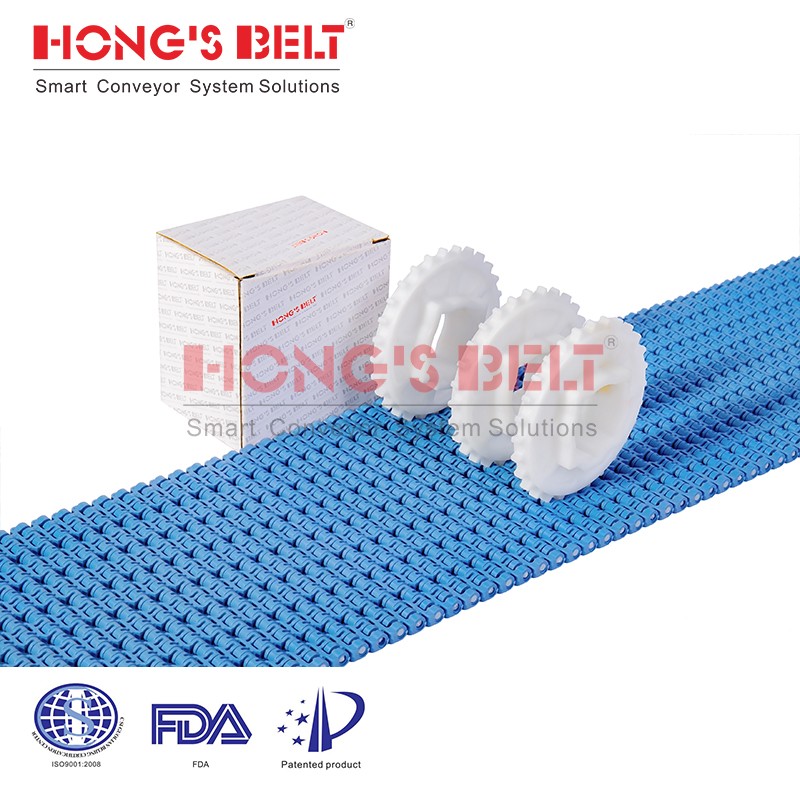

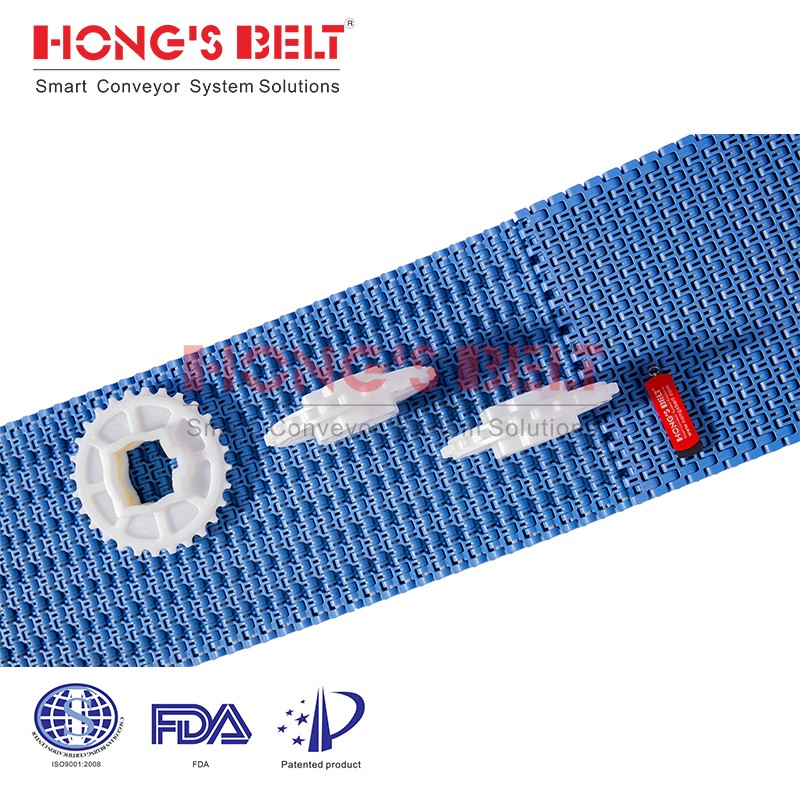

HS-1500B Modular Plastic Conveyor Belt
The HS-1500B modular plastic conveyor belt is designed for the packing industry. Its modular design allows for easy assembly and maintenance.
Technical Specifications
Overview
Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered for versatility and durability in demanding industrial environments, particularly within the food and packaging sectors. Its modular design allows for easy assembly, maintenance, and customization, significantly reducing downtime and operational costs. With high load capacity and food-approved materials, this belt provides a reliable solution for efficient material handling across various non-food and food processing applications.
Technical Specifications
- Pitch
- 12.7 mm
- Thickness
- 8.5 mm
- Minimum Width
- 107 mm
- Open Area
- 19 %
- Rod Diameter
- 4.5 mm
- Working Temperature
- -40°C to 260°C
- Material Options
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Features & Compliance
Certifications
FDA ApprovedEU Approved
Key Features
- Floating in water
- Food defrosting capable
- Maintenance-free design
- Easy to clean
- High load capability (up to 1.2 tons/sqm)
Configuration
| Feature | Status |
|---|---|
| Flight | Yes |
| Side Guard | No |
| Curve | No |
Applications
Industry Applications
- Meat (beef & pork)
- Poultry
- Sea Food
- Bakery
- Snack Food
- Fruit & Vegetables
- Automotive
- Tire Manufacturing
- Packaging
- Printing/Paper
- Postal
- Corrugated Cardboard
- Can Manufacturing
- PET Manufacturing
- Textile
