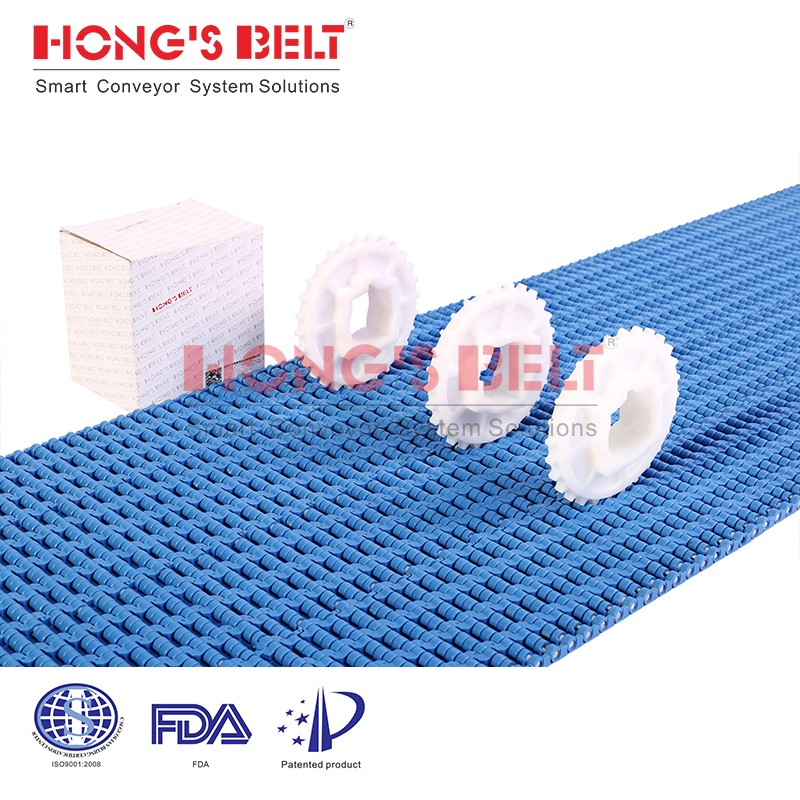

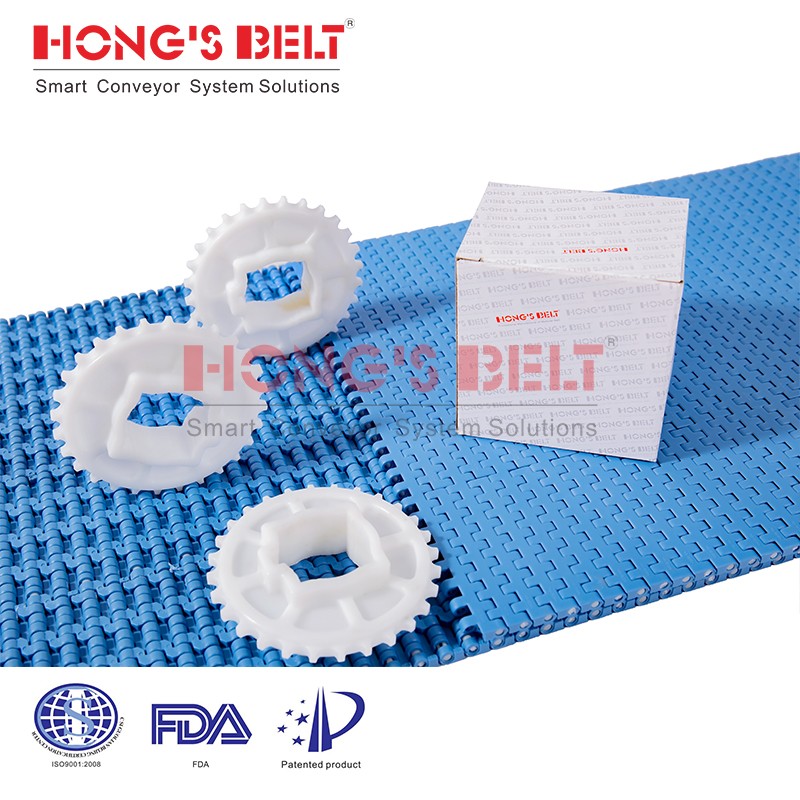

HS-1500A Modular Plastic Conveyor Belt
The HS-1500A is a modular plastic conveyor belt designed for the packing industry. Its modular design allows for easy customization and maintenance.
Technical Specifications
Overview
Modular Plastic Conveyor Belt
The HS-1500A is a versatile modular plastic conveyor belt engineered for high-performance applications in the packing and food processing industries. Its robust modular construction allows for easy installation, maintenance, and customization, while providing excellent resistance to wear, chemicals, and temperature extremes. Designed for reliability, this belt ensures smooth product transfer and features food-approved materials to meet stringent hygiene standards.
Technical Specifications
Compatible Sprocket Teeth
- 10
- 19
- 24
- 28
- Pitch
- 12.7 mm
- Thickness
- 8.5 mm
- Minimum Width
- 76 mm
- Rod Diameter
- 4.5 mm
- Open Area
- 0%
Performance & Material
Maximum Load Capacity
1.2 tons/m²
Max Load
Certifications
FDAEU Approved
- Available Materials
- PPPOMPEPA
- Working Temperature
- -40°C to 260°C
Design Features
Key Features
- Floating in water
- Food defrosting compatible
- Maintenance-free design
- Easy to clean
- Flight included
- Available Colors
- WhiteBlueGrayNatureDark-brown
Applications
Industry Applications
| Sector | Applications |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Tire, Packaging, Printing/Paper, Postal, Corrugated Cardboard, Can & PET Manufacturing, Textile |
