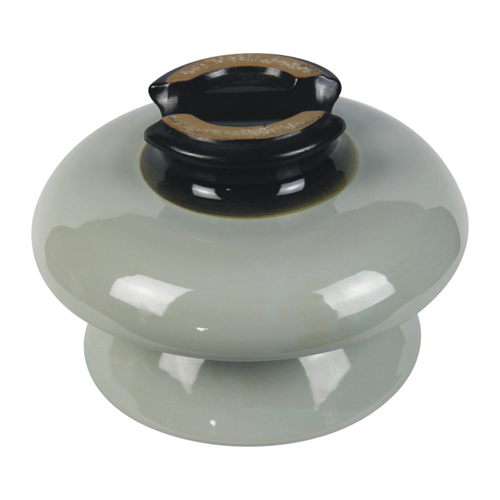

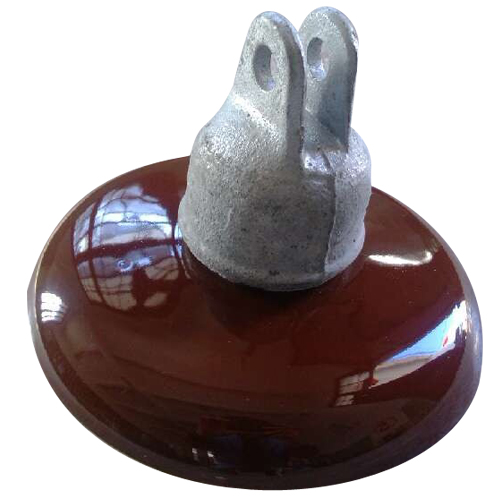

High Voltage Porcelain Insulator
This high-voltage porcelain insulator is designed for electrical power transmission and distribution systems. It provides insulation between conductors and support structures.
Technical Specifications
Product Overview
High-Voltage Porcelain Insulator
This high-voltage porcelain insulator is engineered for reliable performance in electrical power transmission and distribution systems. Constructed from high-quality porcelain, it offers superior dielectric strength and exceptional resistance to environmental stress. The robust design ensures mechanical support for conductors while maintaining electrical isolation, making it an ideal choice for overhead power lines and substations.
Technical Specifications
Dimensional Comparison (mm)
| Class | H | h | h1 | D | d | d1 |
|---|---|---|---|---|---|---|
| ANSI 54-1 | 89 | 44 | 64 | 64 | 44 | 16 |
| ANSI 54-2 | 108 | 57 | 76 | 73 | 54 | 22 |
| ANSI 54-3 | 140 | 67 | 103 | 86 | 60 | 25 |
| ANSI 54-4 | 171 | 79 | 114 | 89 | 60 | 25 |
Performance Ratings
89 KN
Max Mechanical Load
76 mm
Max Leakage Distance
40 kv
Max Dry Flashover Voltage
23 kv
Max Wet Flashover Voltage
- Weight Range
- 0.5kg to 2.2kg
Compliance & Standards
- ANSI Standards
- ANSI 54-1ANSI 54-2ANSI 54-3ANSI 54-4
