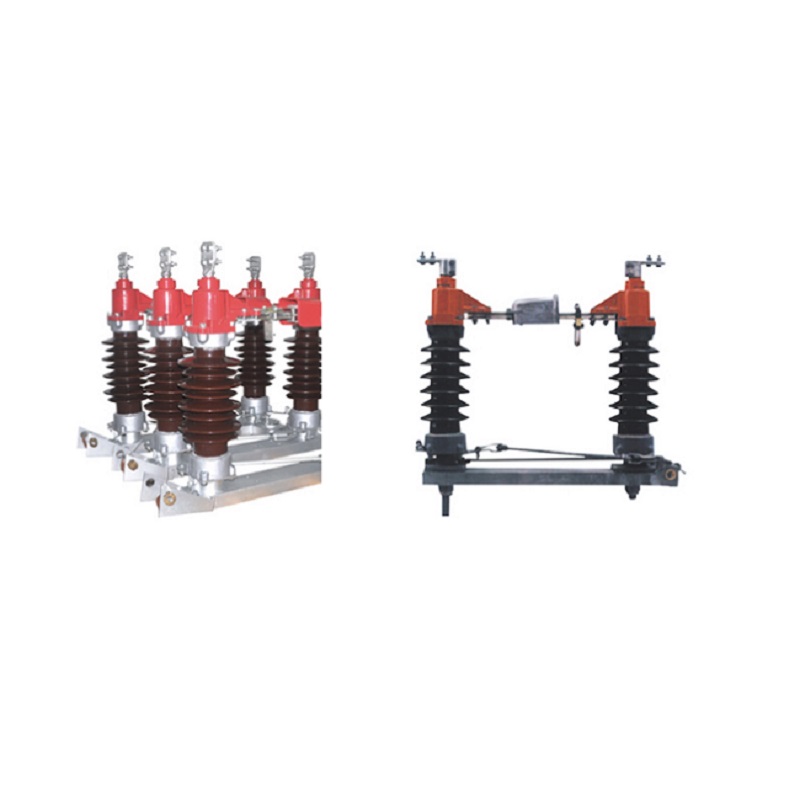

High Voltage Isolation Switch Disconnector
High-voltage isolation switches disconnect sections of electrical circuits, ensuring a visible open gap for safe maintenance. Featuring robust insulators, these disconnectors are suitable for various voltage levels and environmental conditions.
Technical Specifications
Product Overview
High Voltage Isolation Switch Disconnector
This series of outdoor high-voltage AC isolation switches is designed for robust performance in electrical power transmission and distribution systems. These units provide a critical visible open gap, ensuring safe circuit isolation for maintenance and repair operations. With a wide range of configurations including double-post, horizontal telescopic, and single-arm vertical models, these switches are engineered to meet diverse voltage and application requirements.
Technical Specifications
Rated Current
- 400
- 630
- 1,000
- 1,600
- 2,500
- Voltage Range
- 12kV40.5kV72.5kV126kV252kV363kV550kV800kV1100kV
Configuration Types
Model Configurations
- Double post horizontal telescopic
- Single post single-arm vertical telescopic

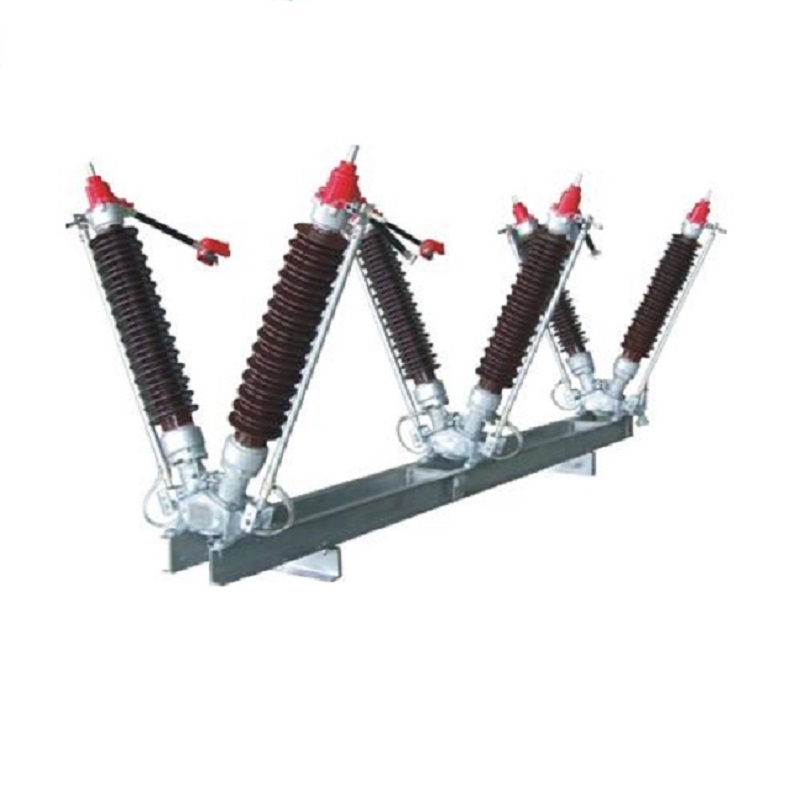

- Double post V-type
- Horizontal rotary type
- Neutral point isolation
Environment
OutdoorAC High VoltageTransmission SystemDistribution System
