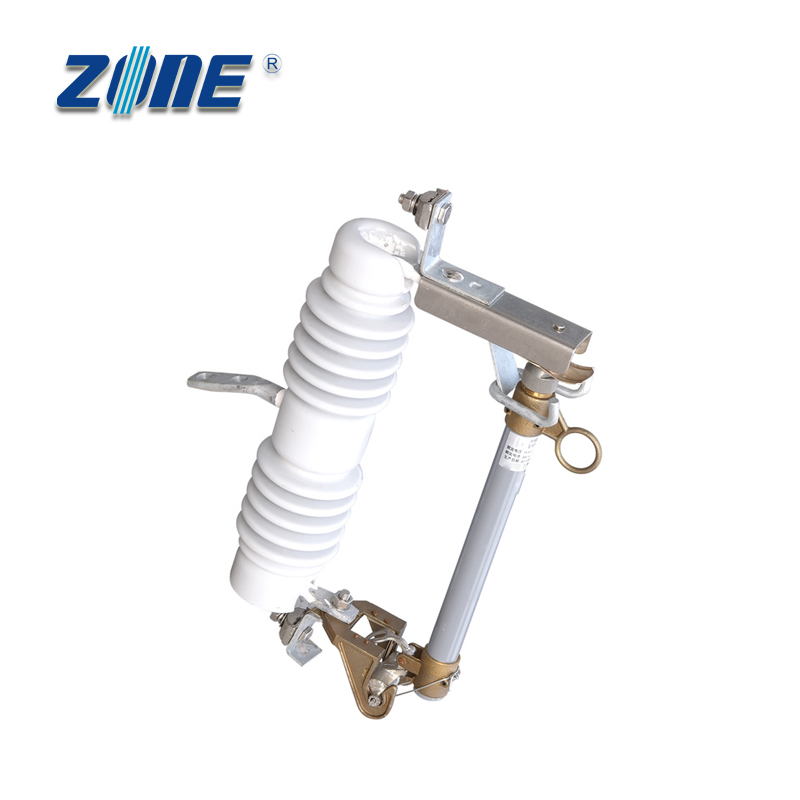

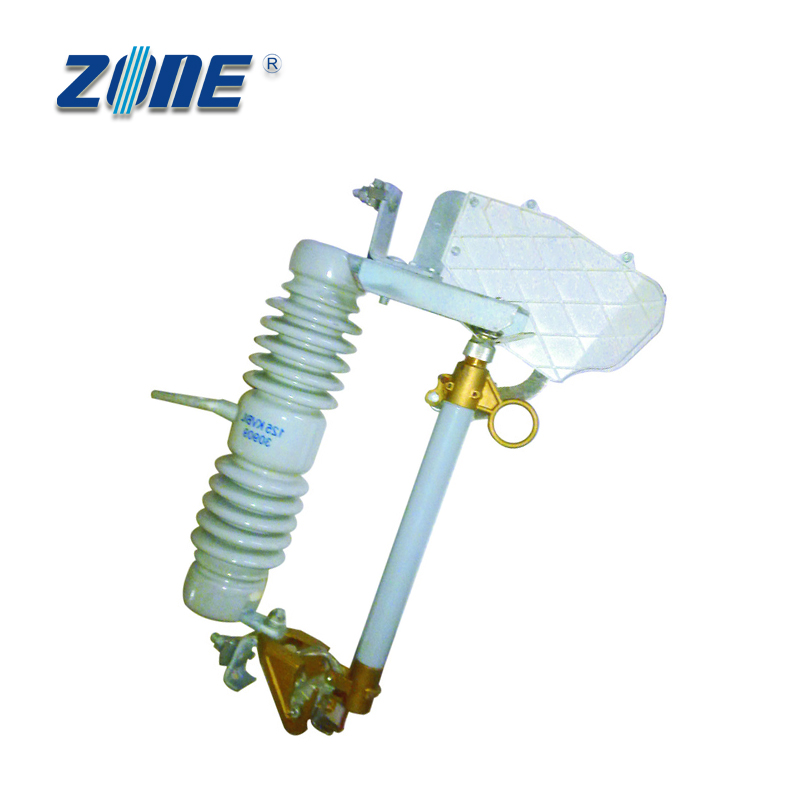

High Voltage Drop-Out Fuse
This high-voltage drop-out fuse is designed for overcurrent protection in electrical distribution systems. It features a robust insulating body and a hinged fuse holder that drops open upon fuse element rupture, visually indicating a blown fuse.
Technical Specifications
Product Overview
High Voltage Drop-Out Fuse Cutout
This high-voltage drop-out fuse is engineered for reliable overcurrent protection in electrical distribution systems, specifically protecting transformers and distribution lines from faults and overloads. It features a robust insulating body with a hinged fuse holder that drops open upon rupture, providing an immediate visual indication of a blown fuse for maintenance teams. Designed for durable outdoor performance, it is ideal for pole-mounted applications in overhead distribution networks and substation structures.
Technical Features
Key Performance Features
- Visual fault indication via drop-out mechanism
- Rapid and reliable circuit interruption
- Replaceable fuse element for easy service restoration
- Excellent weather resistance for outdoor environments
- Secure mounting for crossarms or substation structures
- Maintenance
- Easily accessible replaceable fuse link
Construction & Materials
Insulator Material
- Body Design
- Robust insulating body with hinged fuse holder
Application
- Installation Type
- Pole-mountedOverhead DistributionSubstationOutdoor
- Primary Protection
- Transformers and distribution lines
