High-Voltage Disconnecting Switch
This high-voltage disconnecting switch isolates electrical circuits in substations and power distribution systems. It provides a secure means of isolating equipment for maintenance or repair.
Technical Specifications
Product Overview
High-Voltage Disconnecting Switch

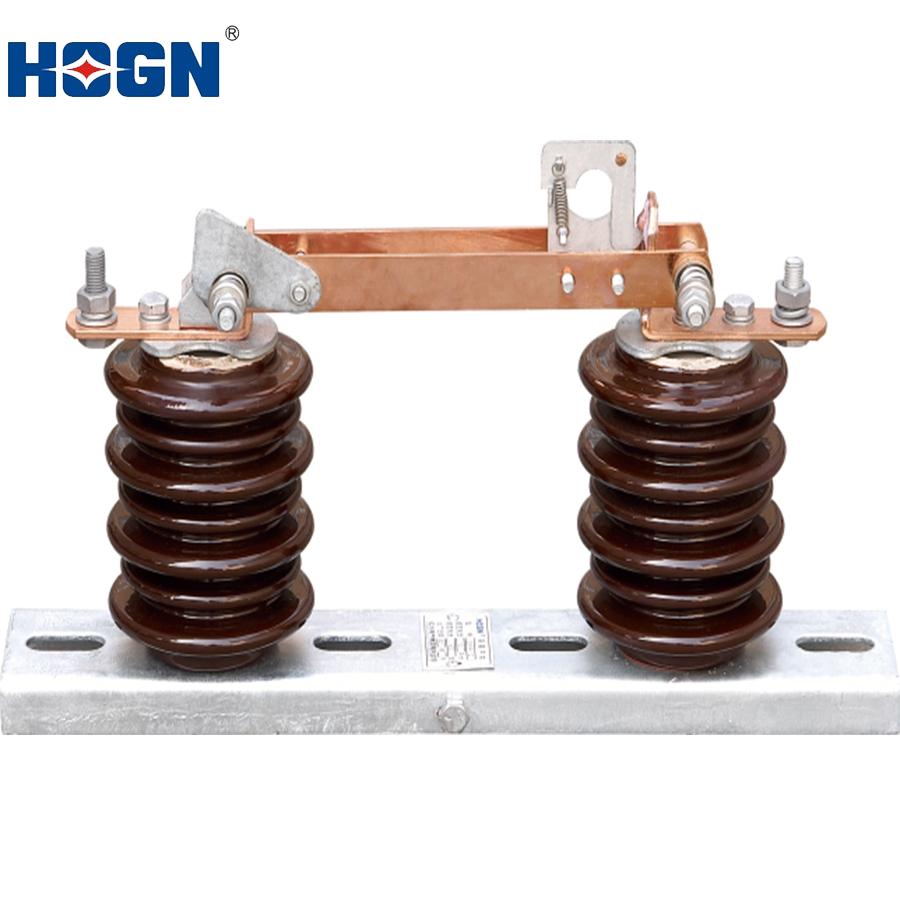

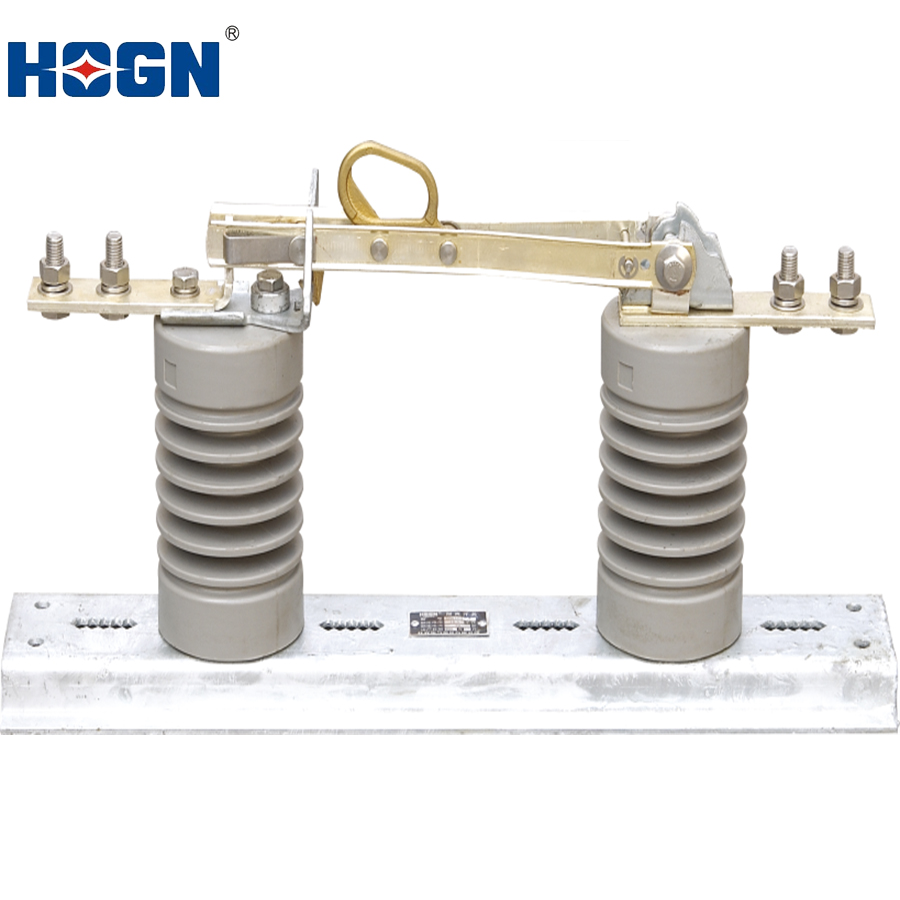

This double-column disconnecting switch is engineered for reliable circuit isolation in electrical substations and transmission systems. It features a robust, corrosion-resistant base with high-strength insulators, ensuring stable performance in harsh outdoor environments. Designed for safety and efficiency, the unit utilizes a manual operation mechanism to prevent operational errors and facilitate secure maintenance.
Construction & Materials
- Base Construction
- Hot-dipped zinc antiseptic treatment base
- Contact Material
- Silver-plated copper
- Insulator Type
- High-strength porcelain
Operational Features
Safety Mechanisms
- Anti-wrong operation mechanism
- Composite flash-locks
- Earth line protection
- Switch Configuration
- Double-column
- Operation Method
- Manual (CS type machine)
Application
- Primary Applications
- SubstationsTransmission SystemsPower DistributionOutdoor Installations
