High Voltage Digital Insulation Resistance Tester
This digital insulation resistance tester is designed for measuring insulation resistance in high-voltage environments. It features a clear digital display with voltage, resistance, and time readouts, along with an auto-discharge function.
Technical Specifications
Overview
High-Voltage Insulation Testing

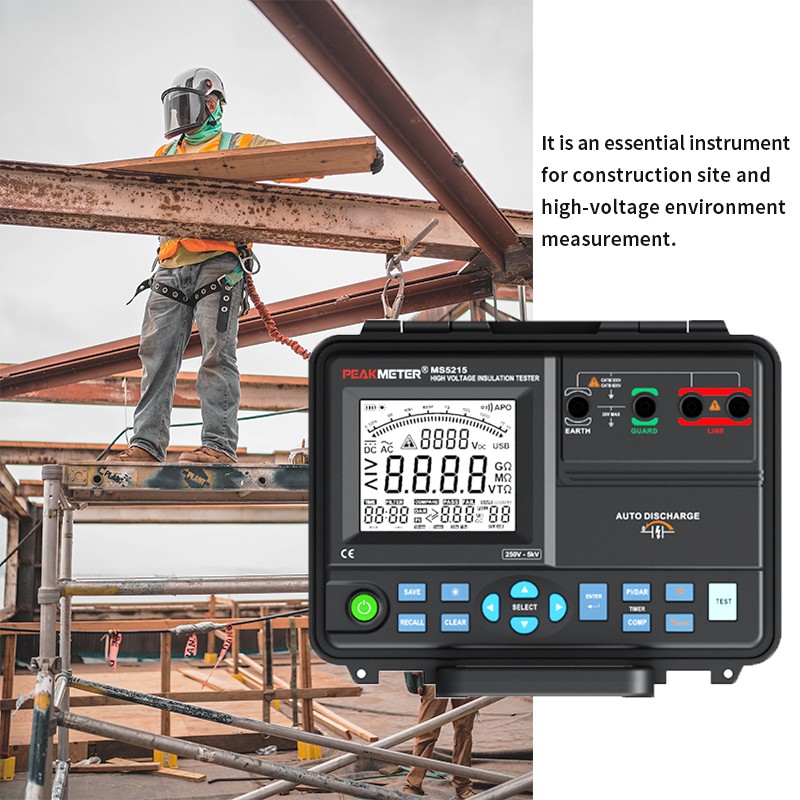

This digital insulation resistance tester is engineered for demanding environments, including construction sites and high-voltage electrical systems. It provides comprehensive diagnostics with support for multiple test voltages ranging from 250V to 5kV. Designed for precision and safety, the unit includes essential features like auto-discharge, polarization index (PI) calculations, and dielectric absorption ratio (DAR) measurements.
Technical Specifications
Resistance Measurement Ranges
| Test Voltage | Resistance Range |
|---|---|
| 250V | 0.0MΩ - 2000MΩ |
| 500V | 0.0MΩ - 5000MΩ |
| 1000V | 0.0MΩ - 10000MΩ |
| 2500V | 0.0MΩ - 20000MΩ |
| 5000V | 0.0MΩ - 30000MΩ |
- Test Voltages
- 250V500V1000V2500V5000V
Features & Functionality
Advanced Diagnostics
- Polarization Index (PI)
- Dielectric Absorption Ratio (DAR)
- Timer Function
- Comparison (COMP) Function
Safety Features
Auto-DischargeEarth ConnectionGuard ConnectionLine Connection
Certifications
- Compliance
- CE
