High Voltage Controllable Reactor for Power Systems
This high-voltage controllable reactor is designed for electric power applications. It automatically and smoothly adjusts the reactive power.
Technical Specifications
Product Overview

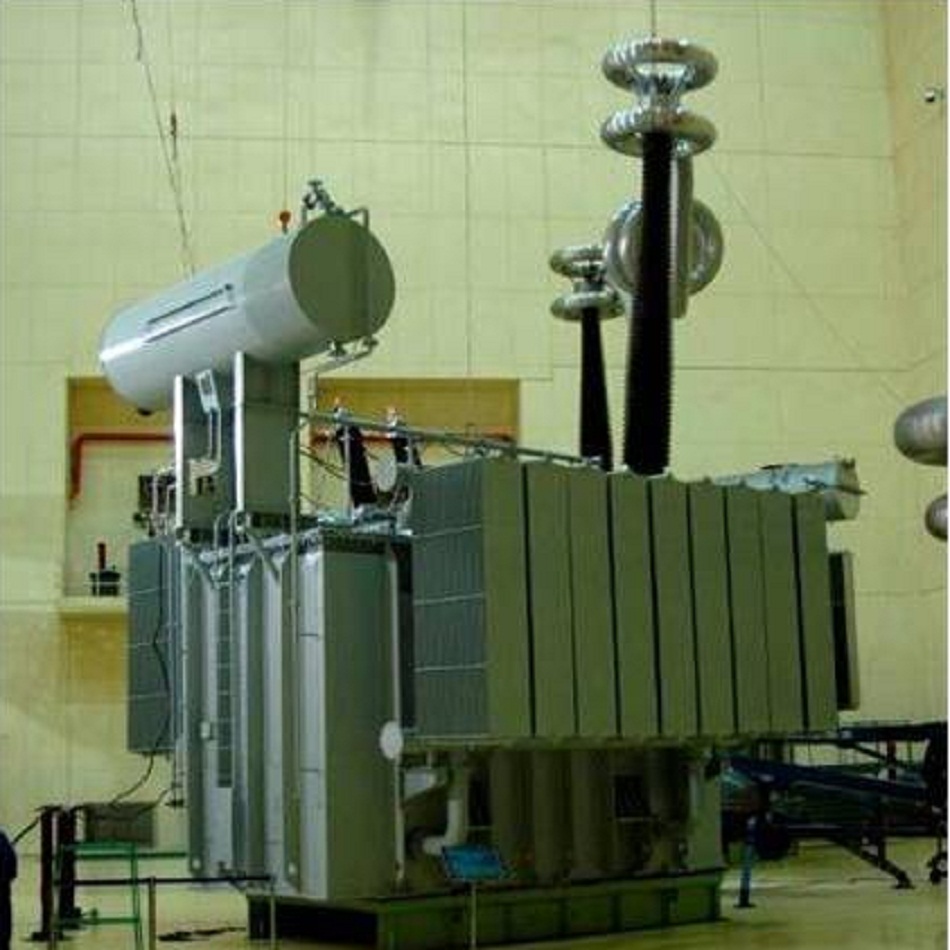

High Voltage Controllable Reactor
This high-voltage controllable reactor is engineered for advanced power system applications, providing essential grid stability and reactive power management. Designed for demanding environments, it supports voltage classes up to 750kV and capacities reaching 150MVA. Its robust construction ensures reliable performance in large-scale electrical infrastructure projects.
Technical Specifications
- Voltage Class
- 750 kV
- Capacity
- 150 MVA
- Rated Short-time Withstand Current
- 40 kA
Logistics & Dimensions
- Maximum Transport Weight
- 194 ton
- Maximum Total Weight
- 303 ton
- Outline Dimensions
- 11m x 10m x 16m
Key Features
Core Features
- High-voltage bushing with grading rings
- Integrated oil reservoir cooling system
- Robust radiator cooling assembly
- Advanced monitoring and control instrumentation
- Grounded enclosure design
