Halogen Lamp for Technical Applications
This halogen lamp is designed for technical applications requiring precise lighting. It features a compact design with a distinct bulb shape and a multi-pin base.
Technical Specifications
Overview
Professional Halogen Lighting Solution

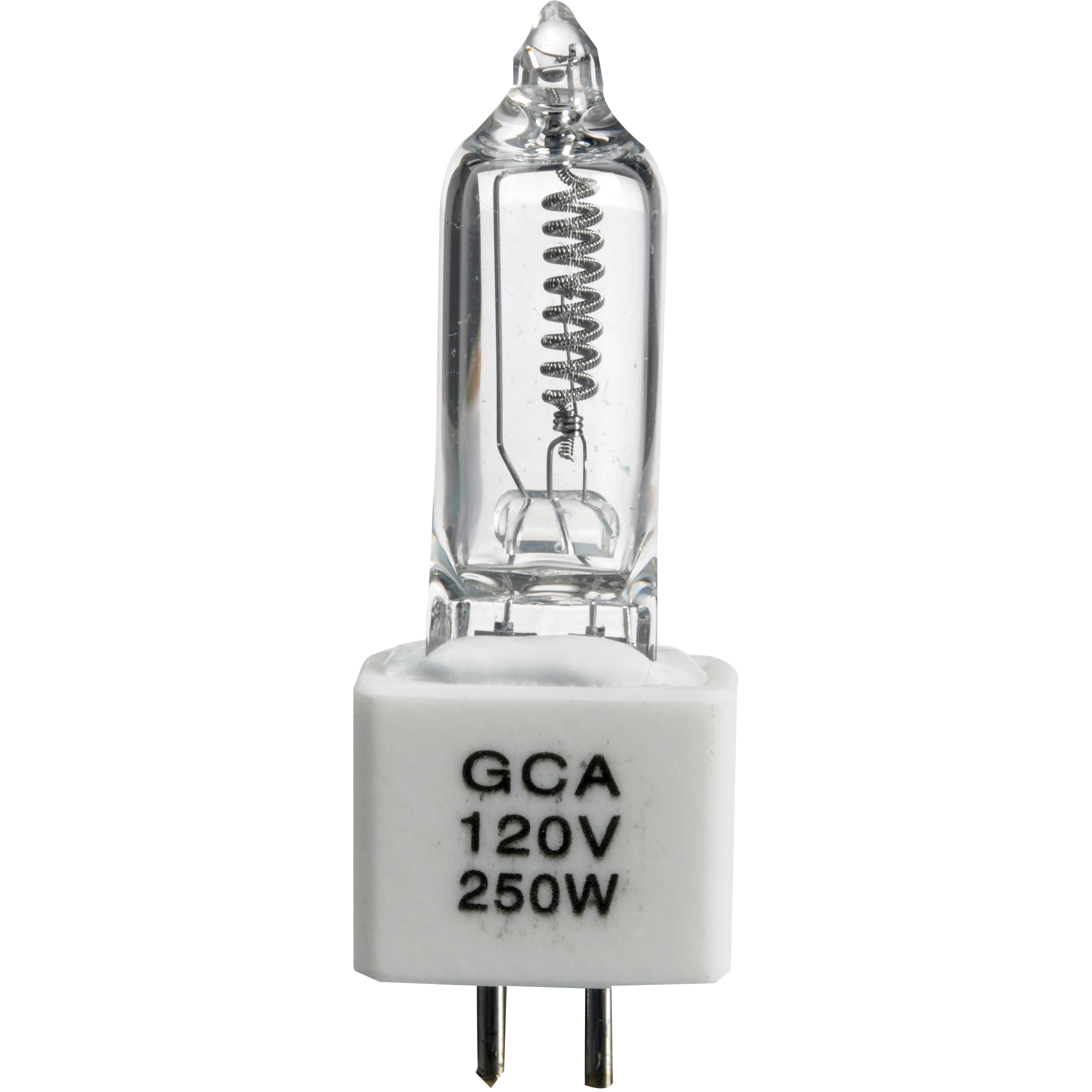

This GCA halogen lamp is engineered for demanding technical applications requiring consistent light output and precise dimensions. Operating at 250W and 120V, it provides a high-intensity illumination suitable for instrumentation, projection, and scientific equipment. The robust design ensures reliable performance in specialized lighting environments.
Technical Specifications
Electrical Performance
250 W
Wattage
120 V
Voltage
6,000 LM
Luminous Flux
Optical Characteristics
3,200 K
Color Temperature
200 Hours
Average Life
Mechanical Dimensions
Physical Dimensions
| Dimension Reference | Measurement |
|---|---|
| Diameter (A) | 12 ± 0.5 mm |
| Overall Length (B) | 54 mm |
| Base Height (C) | 32 ± 1 mm |
- Construction Details
- Base Type: G5.3Filament Type: CC-8Ceramic Base
