Technical Specifications
Product Overview

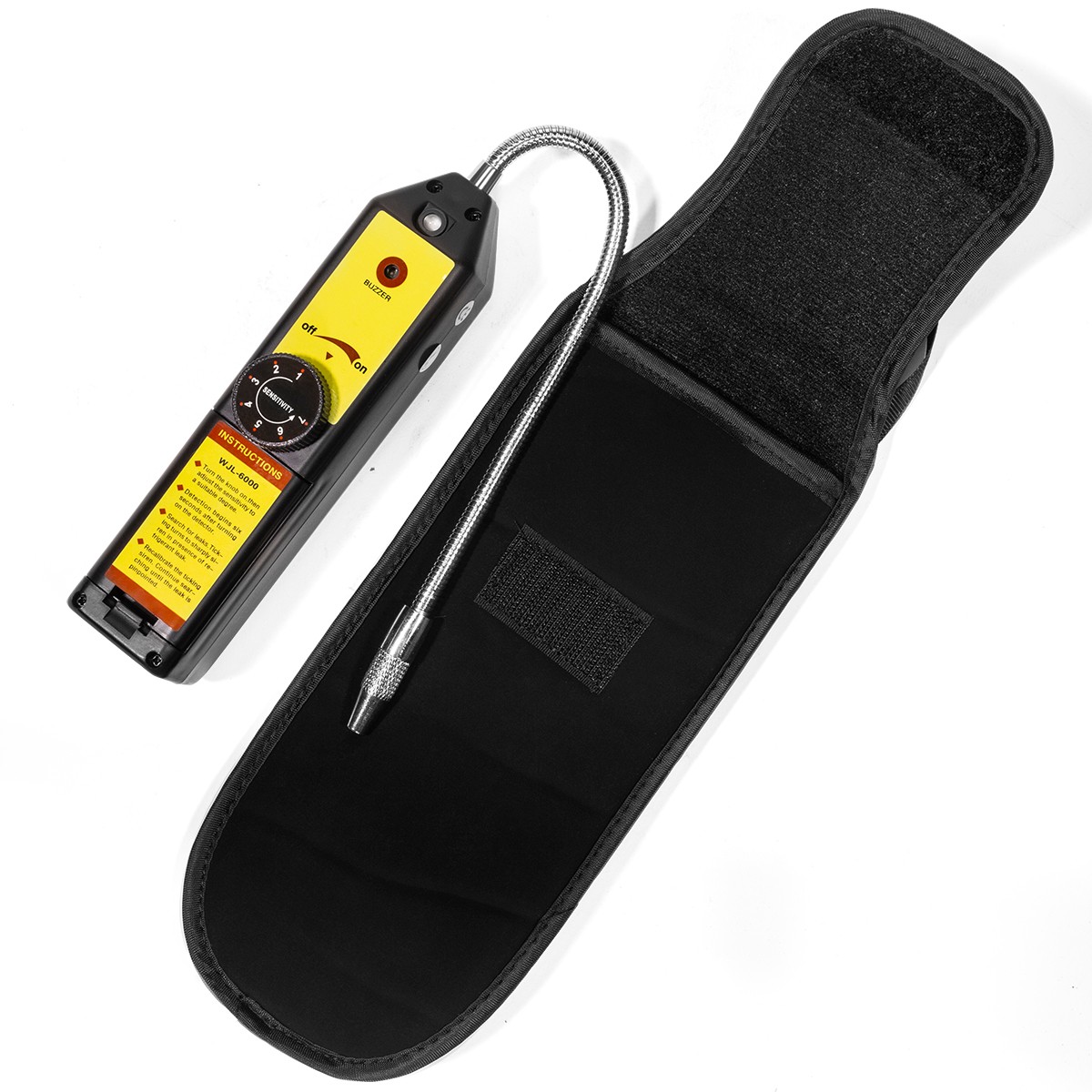

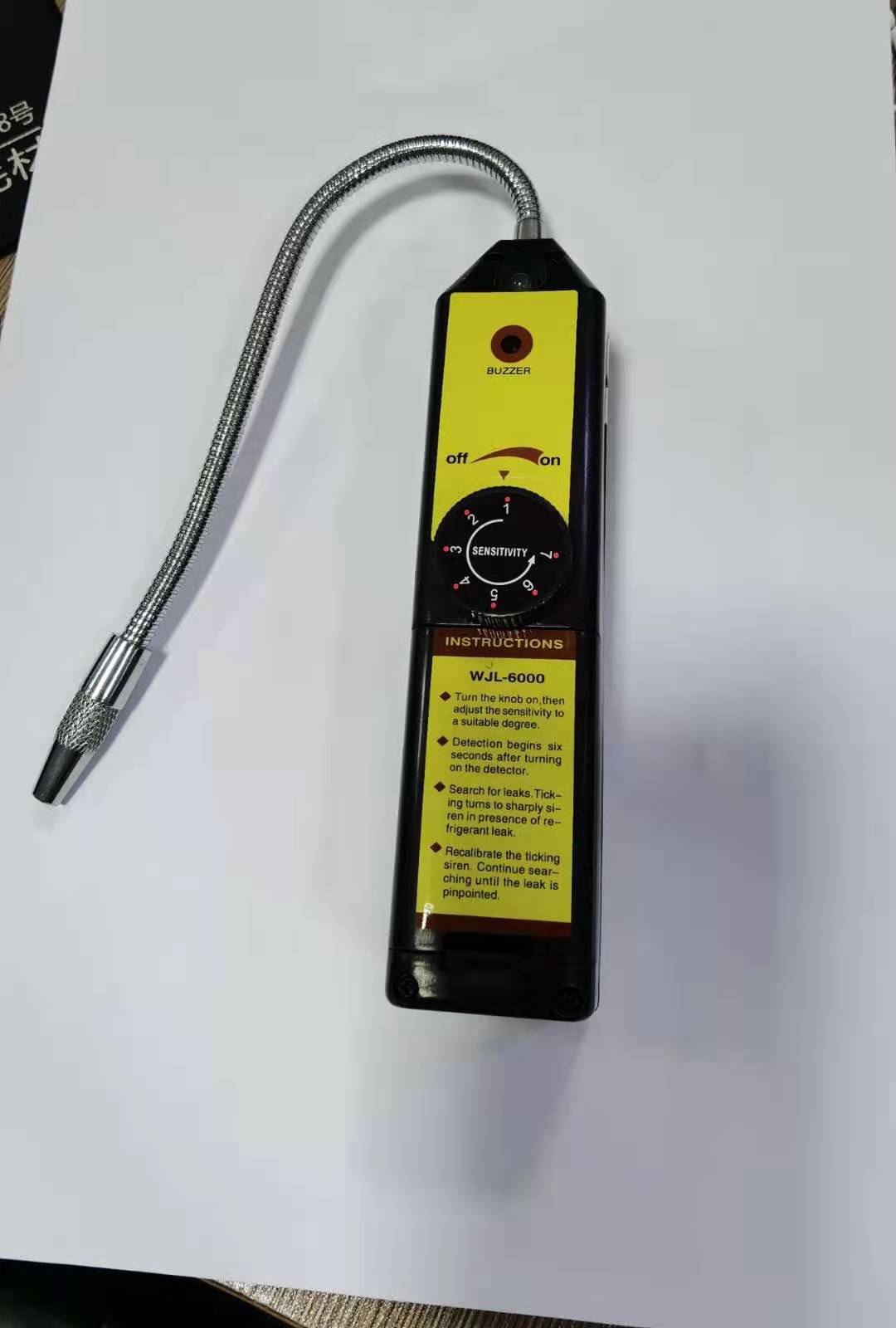

Professional Halogen Leak Detection
This portable halogen gas leak detector is an essential tool for HVAC and refrigeration maintenance professionals. Designed for precision, it instantly detects all halogenated refrigerants including CFCs, HCFs, and HFCs. Featuring a flexible probe for hard-to-reach areas and an adjustable sensitivity system, it ensures reliable performance in diverse field environments.
Technical Specifications
Maximum Sensitivity
6 gr/yr
Sensitivity
- Operating Temperature Range
- 0°C to 52°C (30°F to 125°F)
- Response Time
- Instantaneous
- Warm-up Time
- 6 seconds
- Reset Time
- 2-10 seconds
- Work Mode
- Continuous
- Compatible Refrigerants
- CFCs (R12, R11, R500, R503)HCFs (R22, R123, R124, R502)HFCs (R134a, R404a, R125)
Physical & Power
- Probe Length
- 20 cm
- Unit Dimensions
- 22.9cm x 6.5cm x 6.5cm
- Battery Life
- 50 hours
- Power Supply
- 6V DC (4 x 7# batteries)
