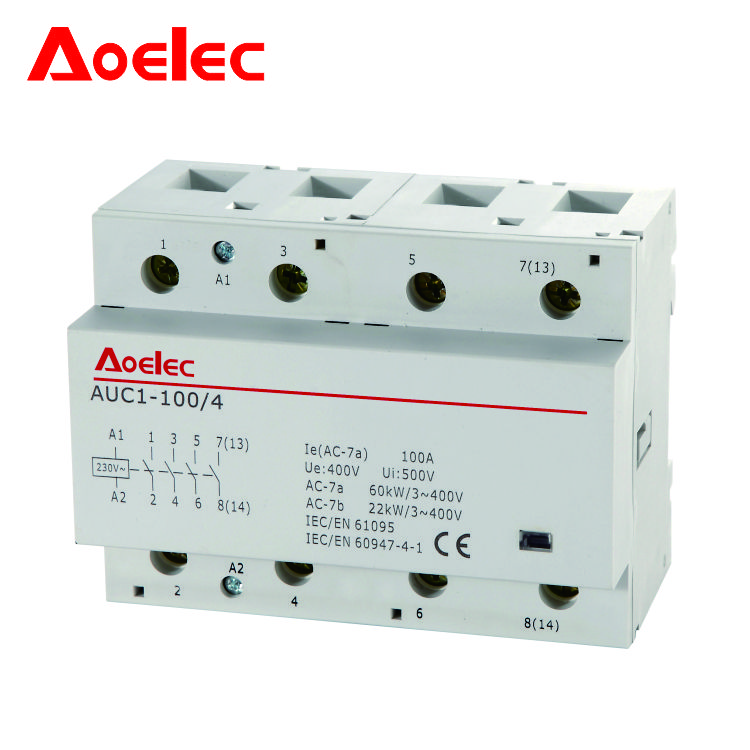

Four-Pole Modular Contactor 100A 400V
This four-pole modular contactor is designed for AC-7a and AC-7b applications. It is rated for 100A with a rated voltage of 400V and complies with IEC/EN 61095 and IEC/EN 60947-4-1 standards.
Technical Specifications
Overview
High-Performance Modular Contactor
This four-pole modular contactor is an electromechanically controlled switch designed for reliable operation in single or multi-phase power load applications. Engineered with a fire-resistant PA66 enclosure, it ensures durability and safety in demanding electrical environments. With support for DIN rail mounting and a wide range of control voltages, this contactor offers versatile integration for various industrial and residential power distribution systems.
Technical Specifications
Electrical Ratings
500 V
Insulation Voltage
4 kV
Impulse Withstand
50 Hz
Frequency
Utilization Categories
AC1AC3AC5bAC7aAC7b
Endurance
- Electrical endurance: 150,000 cycles
- Mechanical endurance: 1,000,000 cycles
- Rated Current Options
- 20A25A32A40A63A100A
Installation & Compatibility
- Mounting
- DIN Rail
- IP Rating
- IP20
- Cable Termination Capacity
- 16/25 mm²
- Standards
- IEC/EN 61095IEC/EN 60947-1CECB
Ordering Information
Common Configuration Examples
| Model | Rating | Control Voltage | Configuration |
|---|---|---|---|
| AUC1-63-24/40 | 63A | 24V | 4NO |
| AUC1-63-230/40 | 63A | 230V | 4NO |
| AUC1-63-230/04 | 63A | 230V | 4NC |
| AUC1-63-230/22 | 63A | 230V | 2NO+2NC |
