Flush Mount Differential Pressure Transmitter
This flush mount differential pressure transmitter measures and displays differential pressure in cleanrooms and HVAC systems. Designed for flush mounting, it provides accurate monitoring and control of airflow and pressure differentials.
Technical Specifications
Overview
High-Precision Flush Mount Pressure Transmitter

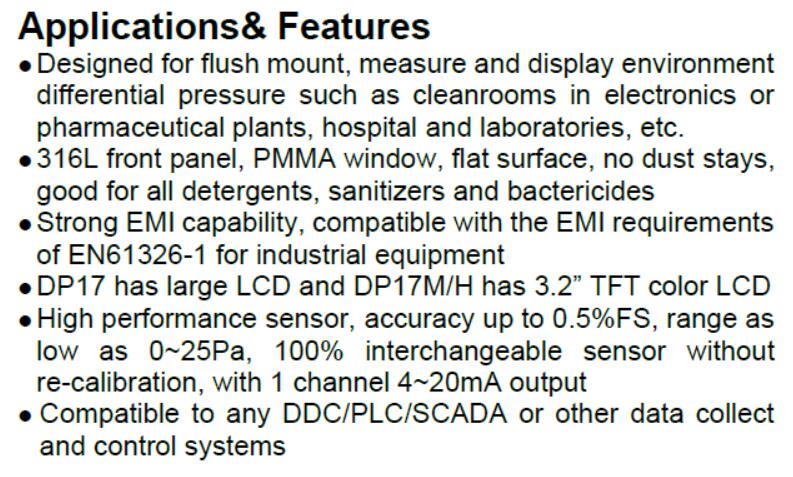

This flush-mounted differential pressure display unit and transmitter is engineered for precise monitoring in critical environments like cleanrooms, electronics manufacturing, pharmaceutical plants, hospitals, and laboratories. Featuring a 316L stainless steel front panel and a flat surface design, it resists dust accumulation and is compatible with standard cleaning agents. The unit offers versatile integration with DDC, PLC, and SCADA systems, ensuring reliable performance in demanding industrial applications.
Technical Specifications
Accuracy & Performance
Electrical Requirements

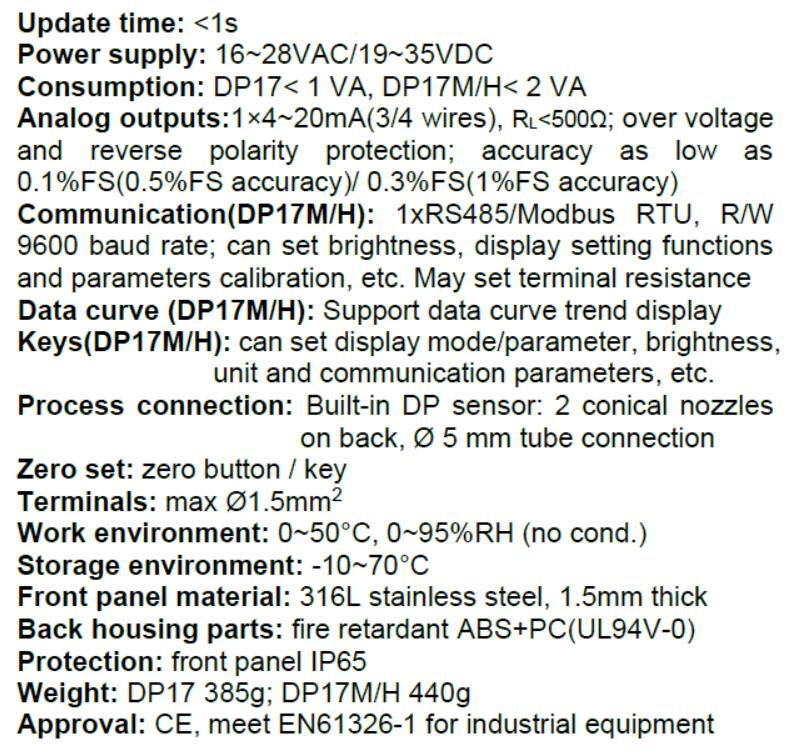

- Power Supply: 16~28VAC / 19~35VDC
- Analog Output: 1x 4~20mA (3/4 wires)
- Over voltage and reverse polarity protection included
- Consumption: DP17 < 1 VA, DP17M/H < 2 VA
- Environmental Ratings
- IP65 Front Panel0~50°C Operating Temp0~95%RH (Non-condensing)Fire Retardant Housing (UL94V-0)

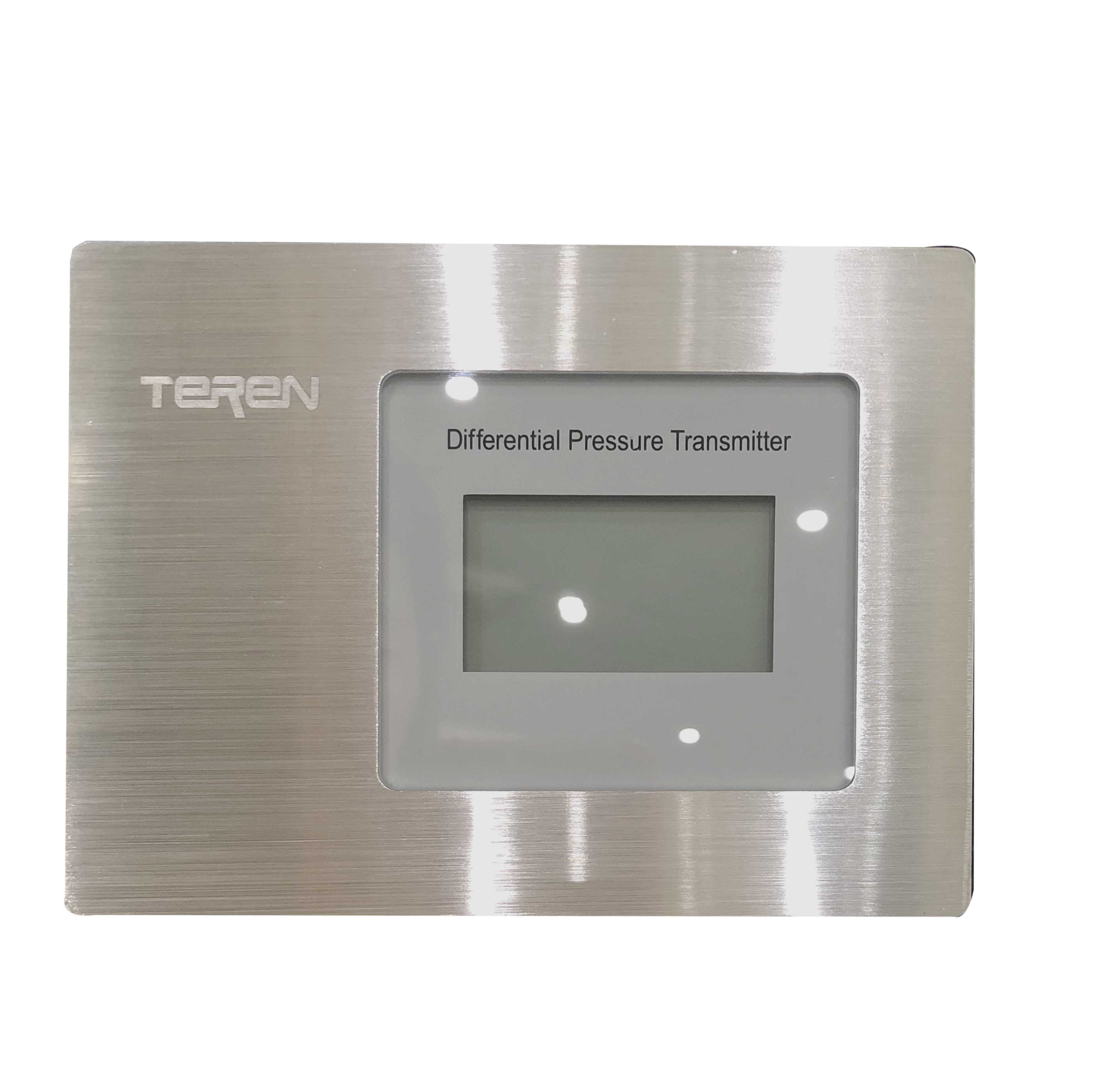

Display & Interface
Display Specifications

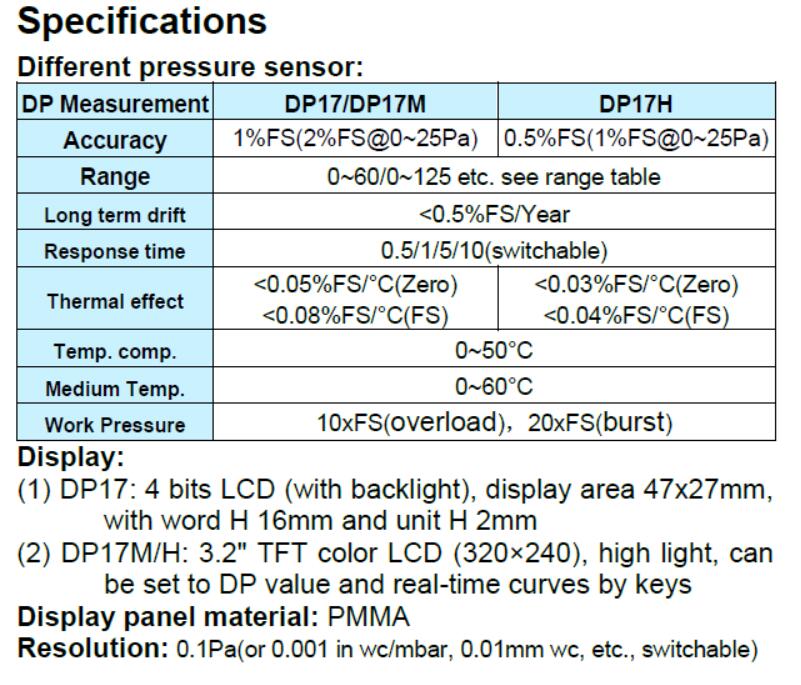

| Model | Display Type |
|---|---|
| DP17 | 4-bit LCD with backlight |
| DP17M/H | 3.2" TFT Color LCD |
Communication & Control
- RS485/Modbus RTU (DP17M/H models)
- 9600 baud rate
- Data curve trend display (DP17M/H)
- Configurable via keys or DIP switches

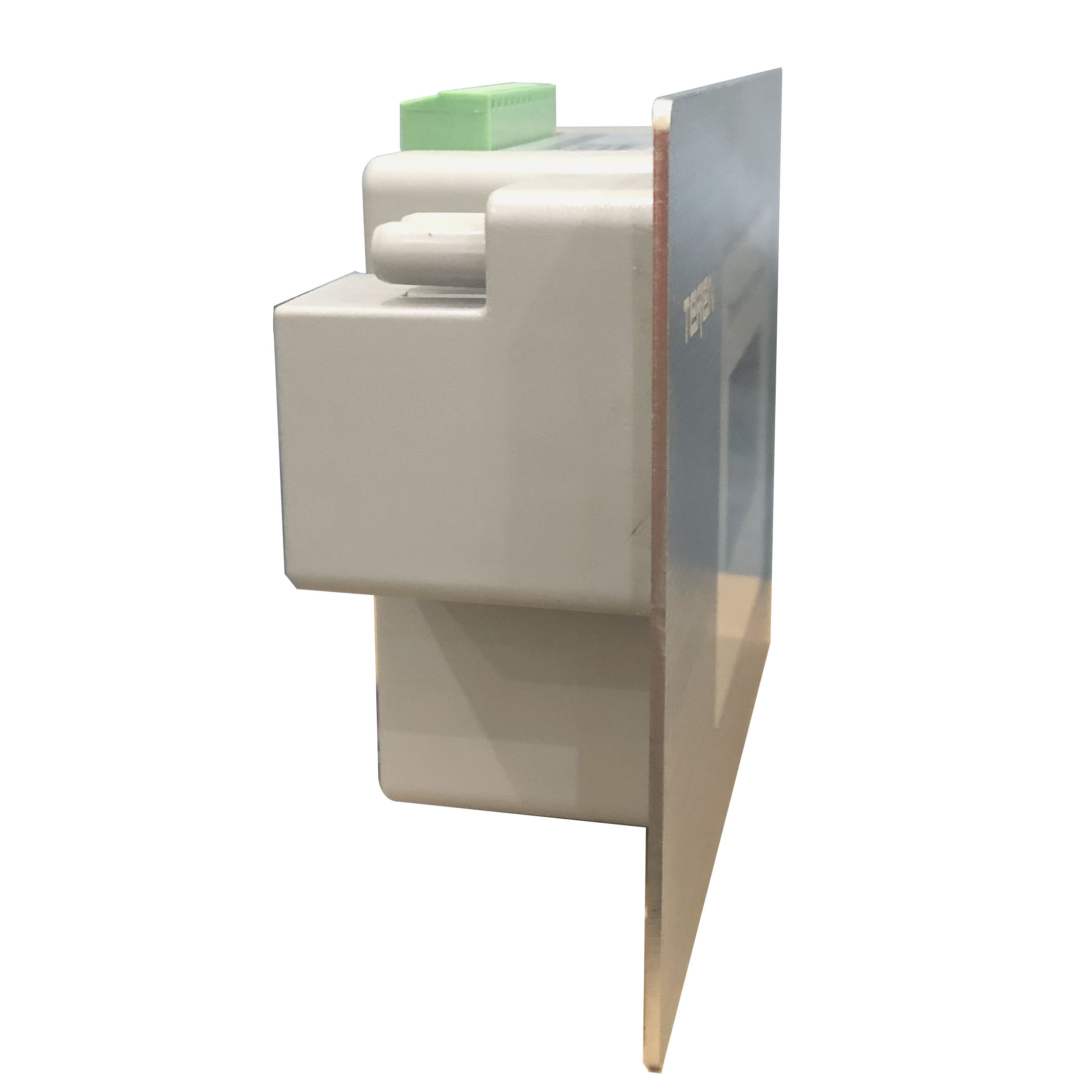

Mechanical Construction
Physical Dimensions & Materials
- Front Panel: 316L Stainless Steel (1.5mm thick)
- Housing: Fire retardant ABS+PC
- Weight: 385g (DP17) / 440g (DP17M/H)
- Process Connection: 2 conical nozzles (Ø 5mm tube)
