Fluid Level Float Switch
This float switch is designed for level control in various applications. It provides reliable and accurate level detection, making it suitable for use in tanks, wells, and other liquid storage containers.
Technical Specifications
Overview

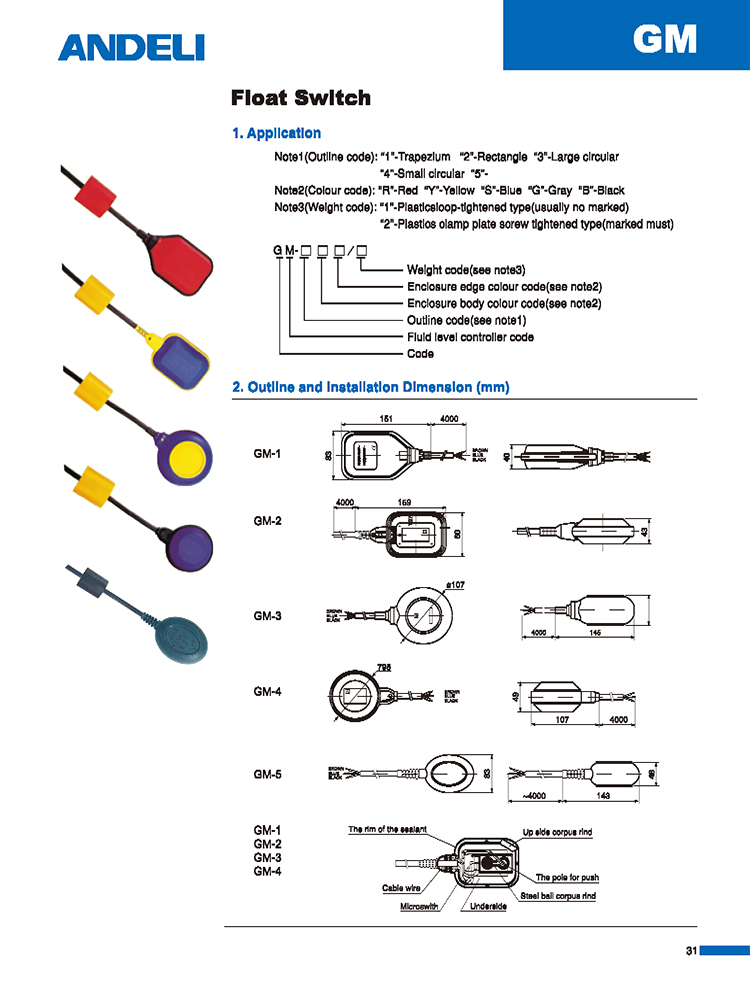

GM Series Fluid Level Float Switch
The GM series float switch is engineered for precise fluid level control in a wide variety of industrial and commercial applications. Designed for reliability, this switch provides accurate level detection in tanks, wells, and liquid storage containers. The series offers flexible installation options with multiple outline configurations and material types to suit specific operational requirements.
Technical Specifications
Outline Shapes
- Trapezium
- Rectangle
- Large circular
- Small circular
Available Colors
RedYellowBlueGrayBlack
Mounting/Weight Types
- Plastics loop-tightened type
- Plastics clamp plate screw tightened type
- Available Models
- GM-1GM-2GM-3GM-4GM-5
Internal Components
Key Components
- Cable wire
- Microswitch
- Steel ball corpus rind
- Pole for push
