FIBC Bulk Bag Weighing and Filling Machine
This machine includes a DCS-1000 Series FIBC bagging machine, main support frame, and gravity feed hopper. It also features a power distribution box, discharge chute, bag-holder, and pneumatic system, with optional devices like a dust extractor and air compressor.
Technical Specifications
Overview
Industrial FIBC Bagging Solution

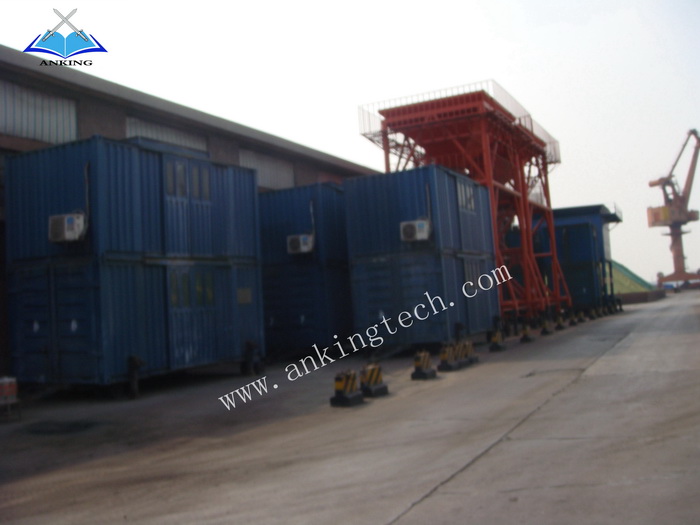

The DCS-1000 Series is a robust FIBC weighing and filling system designed for high-precision bagging of granular materials. It supports diverse operational environments, including docks, warehouses, and factories, offering flexible installation options such as mobile or fixed frame structures. With automated weighing and multiple feeding configurations, this system is engineered to enhance packaging efficiency and streamline bulk material handling workflows.
Technical Specifications
Performance Metrics
0.2 %
Accuracy
1,500 kg
Max Capacity
240 bags/hr
Max Speed
Model Comparison
| Model | Lines/Scales | Speed | Power |
|---|---|---|---|
| DCC-III | Single/One | 60 bags/hr | 4kw |
| DCC-IV | Double/Two | 120 bags/hr | 8kw |
| DCC-V | Double/Four | 240 bags/hr | 12kw |
- Air Pressure
- 0.6 MPa
Operational Details
Feeding Methods
- Gravity
- Screw
- Belt
- Vibration
- Combination
- Compatible Bag Types
- Open-mouth bagAether bagWoven bag
- Environmental Requirements
- -20°C to +40°C
Installation
Installation Methods
- Mobile frame structure
- Fixed floor structure
