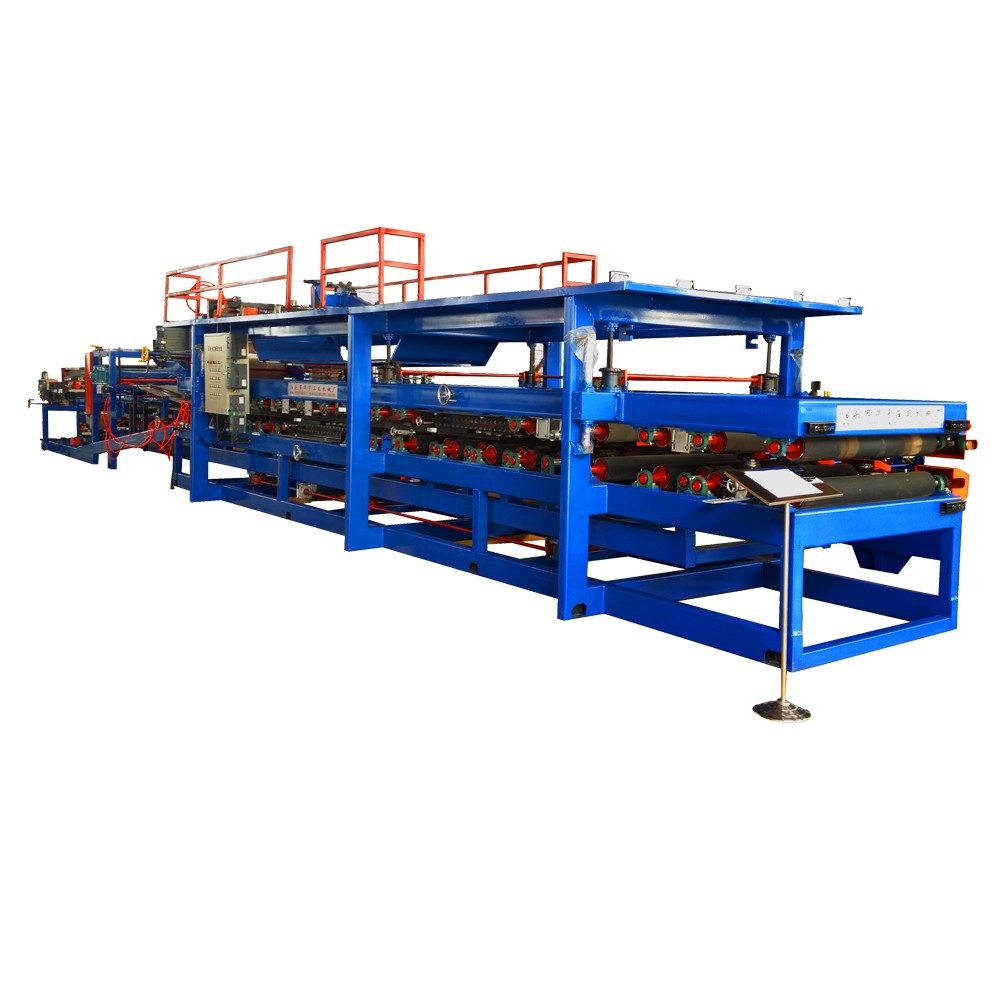

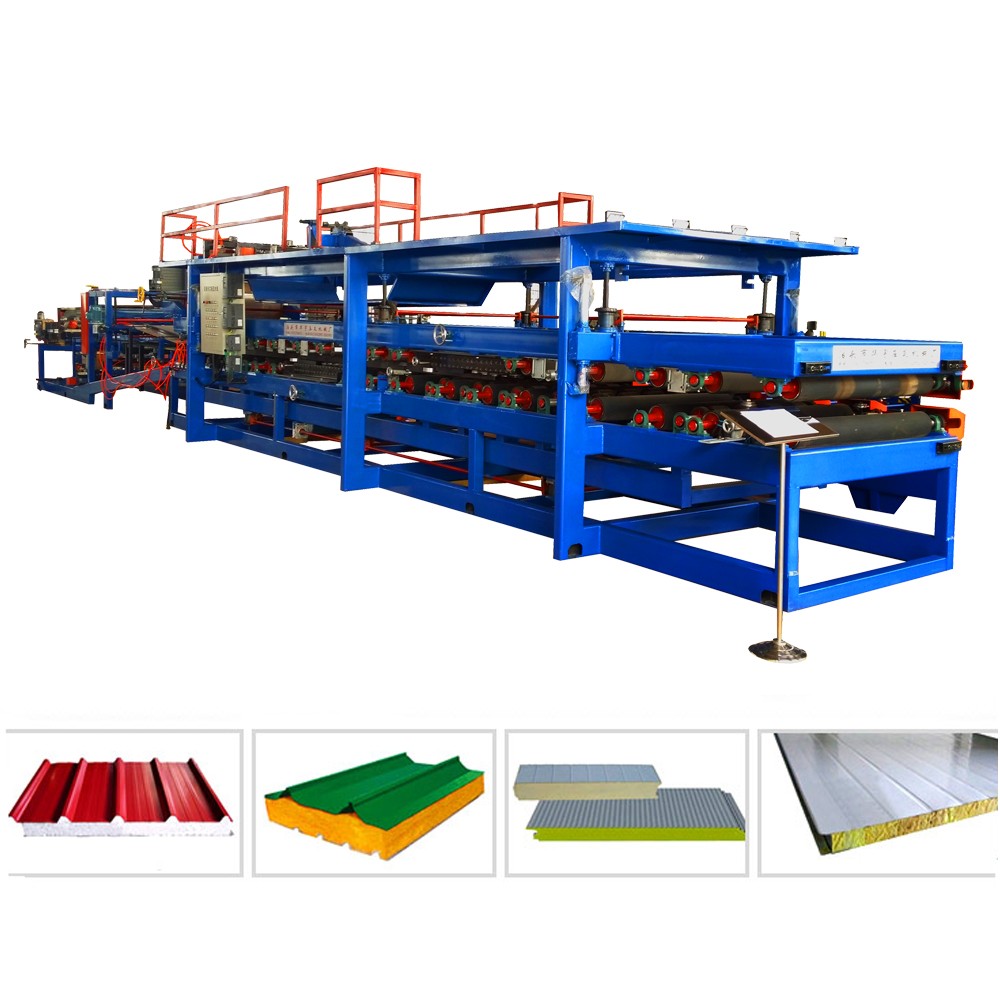

EPS Sandwich Panel Production Line
This automated production line manufactures EPS sandwich panels for construction. It integrates decoiling, forming, laminating, cutting, and stacking processes to produce insulated panels.
Technical Specifications
Product Overview
Automated Sandwich Panel Production
This high-efficiency production line is engineered for the continuous manufacturing of insulated sandwich panels using EPS, rock wool, or glass silk floss cores. The system integrates a fully automated process including decoiling, precision roll forming, advanced laminating, and cutting. Designed for consistent quality and high output, it serves as a robust solution for producing construction-grade wall and roof panels.
Technical Specifications
Performance Metrics
4.5 m/min
Max Speed
30 KW
Total Power
25 ton
Total Weight
Thickness Specifications
| Component | Range |
|---|---|
| Plate Thickness | 0.3 - 0.8 mm |
| Core Thickness | 20 - 300 mm |
- Supported Core Materials
- EPSRock WoolGlass Silk Floss
- Overall Dimensions
- 35000mm (L) x 2500mm (W) x 2600mm (H)
System Features
Control System
PLC ControlledHigh PrecisionStable Operation
Manufacturing Process Flow
- Composite Decoiler

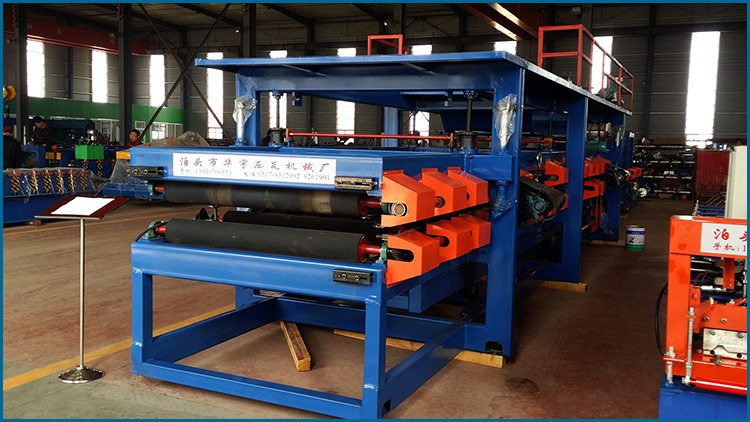

- Roll Forming

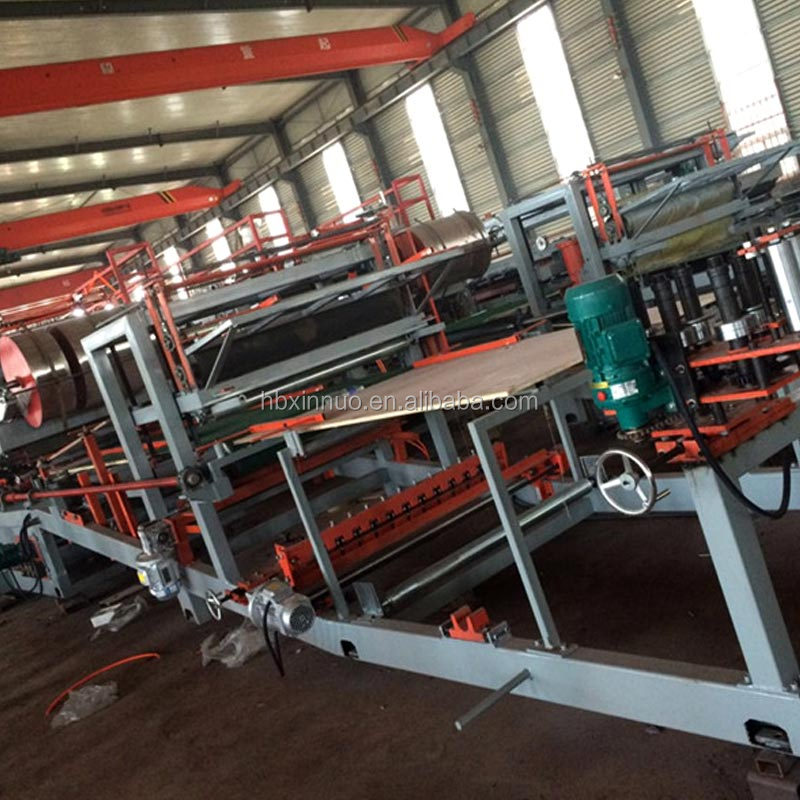

- Laminating System (Ribbon, Gelatinizing, Heating, Compounding)
- Crimping & Notching
- Edge Trimming
- Cutting System
- Runout Table
