Technical Specifications
Product Overview

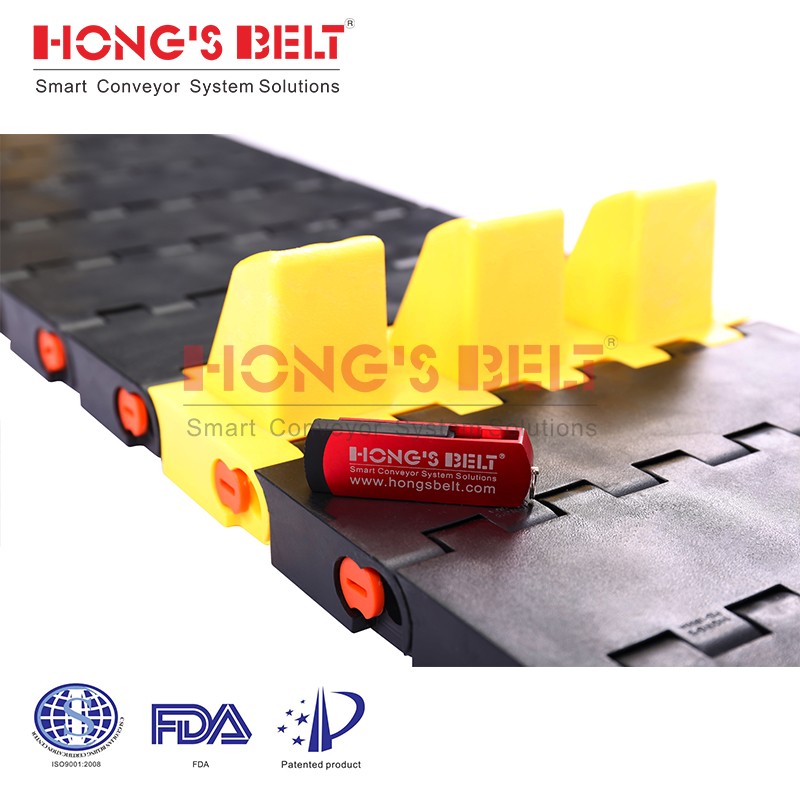

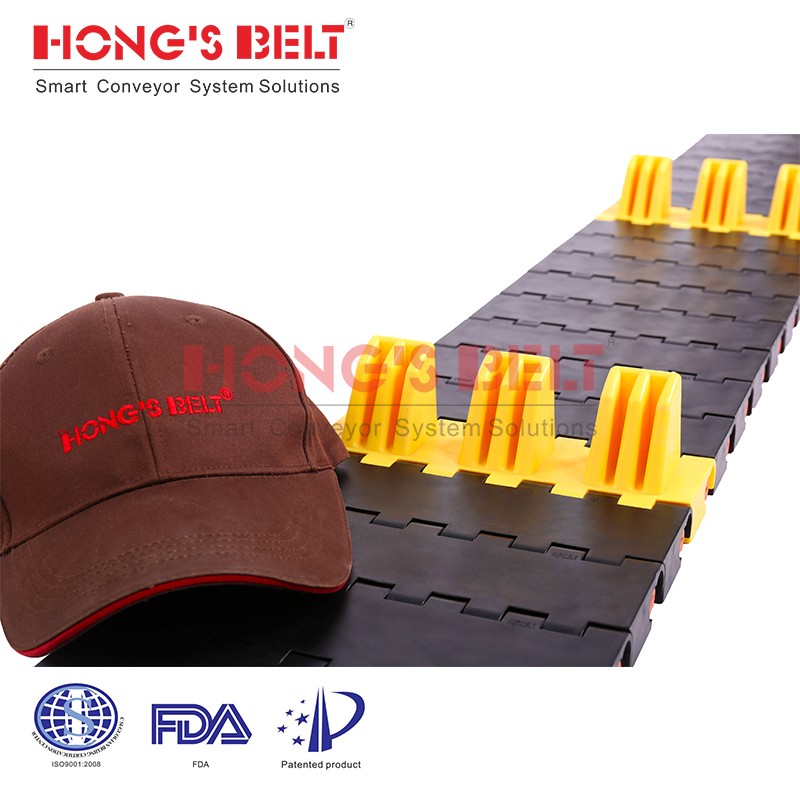

Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered for demanding industrial environments, including automotive maintenance and food processing. It features a robust, interlocking construction that provides exceptional strength and load-bearing capacity of up to 1.2 tons per square meter. Designed for efficiency, this belt is maintenance-free, easy to clean, and resistant to chemicals and oils, ensuring long-lasting performance and reduced downtime.
Technical Specifications
Max Load Capacity
1.2 tons/sqm
Maximum Load
- Model Type
- HS-1800A
- Pitch
- 63.5 mm
- Thickness
- 25 mm
- Minimum Width
- 200 mm
- Open Area
- 0 %
- Rod Diameter
- 10 mm
- Working Temperature
- -40°C to 260°C
Materials and Compliance
Regulatory Approvals
FDAEU
- Available Materials
- PPPOMPEPA
Configuration
Available Colors
- White
- Blue
- Gray
- Nature
- Dark-brown
Sprocket Dimensions
| Specification | Details |
|---|---|
| Sprocket Size | 10T, 13T, 15T |
| Bore Type | Square & Round |
Application
Industries Served
- Automotive
- Tire Manufacturing
- Food Processing (Meat, Poultry, Seafood, Bakery)
- Packaging
- Printing/Paper
- Postal
- Corrugated Cardboard
- Can Manufacturing
- Textile
