Technical Specifications
System Overview
Intelligent Passive Access Control
This advanced electronic lock system utilizes smart keys and electronic cylinders to provide a secure, maintenance-free access control solution. Designed to replace traditional mechanical locks, the system operates without the need for external power or wiring. It features two-way identity authentication and comprehensive task management, making it ideal for diverse environments including transportation and industrial security.
- Key Features
- Passive Electronic CoreMaintenance-FreeNo Wiring RequiredAudit Trail CapabilityTwo-Way Authentication
Technical Specifications
Environmental Tolerance
-40 °C
Min Operating Temp
70 °C
Max Operating Temp
97 %
Max Humidity
Durability & Protection
- Service Life: 10 Years
- Protection Level: IP68
- Corrosion Resistant Surface Treatment
Certifications
CEROHS

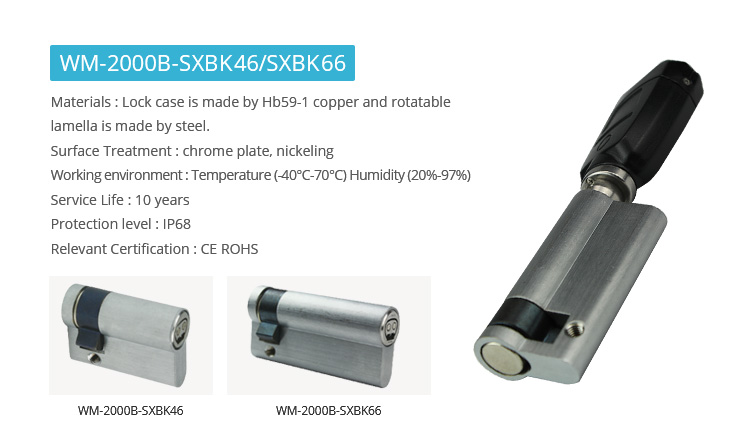

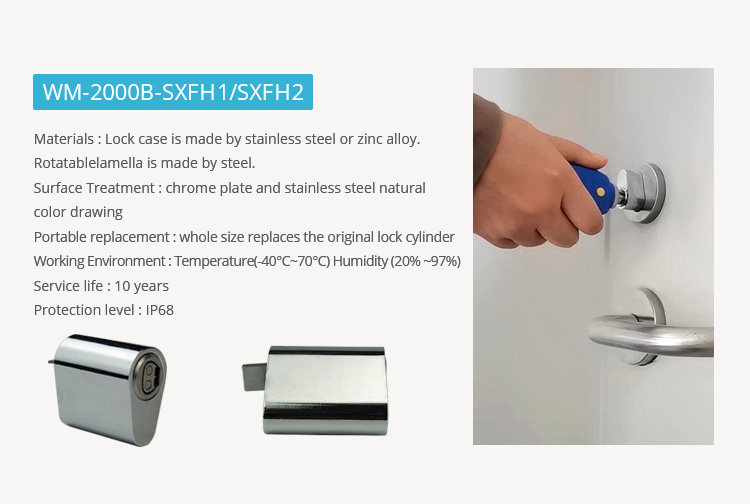

Construction & Materials
Material Breakdown
| Component | Material Options |
|---|---|
| Lock Case | Stainless Steel, Zinc Alloy, Hb59-1 Copper |
| Rotatable Lamella | Steel, Iron |
Surface Treatment
- Chrome Plating
- Nickeling
- Natural Color Drawing
Compatibility
Available Lock Types
- Padlock
- Cabinet Lock
- Round Lock
- Cable Lock
